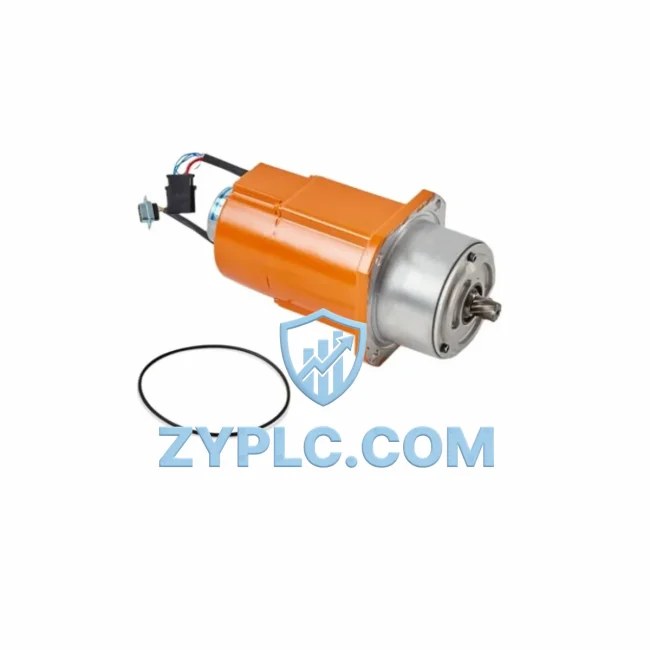

ABB 3HAC021350-001 Robot Motor for 3HAC Series

ABB 3HAC021350-001 Robot Motor for 3HAC Series: Compatibility and Replacement Notes

In modern industrial robotic automation, the integrity of a motion control system depends not on any single component, but on the precise coordination of every layer within the control architecture. The ABB 3HAC021350-001 Robot Motor Module is engineered as a system-compatible axis drive component for ABB’s 3HAC Series robotic platforms, designed to integrate seamlessly into the full control hierarchy — from the IRC5 robot controller at the top of the control layer, through the drive unit and axis computer boards, down to the mechanical execution layer at the joint level. This module serves as the Axis 2 motor assembly for ABB IRB series industrial robots, and its role within the system architecture extends far beyond simple mechanical actuation.

Understanding the 3HAC021350-001 in the context of a complete robotic cell means recognizing how it interacts with upstream and downstream components. The IRC5 controller cabinet — housing the main computer unit (MCU), the drive system, and the panel board — issues motion commands through the axis computer (DSQC 668 or equivalent) to the servo drive modules. These drive modules regulate current and voltage to the 3HAC021350-001 motor, ensuring precise torque and velocity control across the full range of Axis 2 motion. The motor’s resolver or encoder feedback is routed back through the serial measurement board (SMB) to close the position loop, maintaining sub-millimeter repeatability across thousands of operational cycles.

Product Specification Table

System Compatibility Notes

The 3HAC021350-001 does not operate in isolation. Its performance is directly dependent on the health and configuration of every adjacent component in the robotic control architecture. At the controller level, the IRC5 main computer unit manages program execution, path planning, and safety supervision. Motion commands are distributed to the drive system — typically comprising the ABB DSQC 663 drive unit or the rectifier and inverter modules within the drive cabinet — which converts the DC bus power into precisely regulated three-phase current for the motor windings.

The axis computer board (such as the DSQC 668) acts as the intermediary between the main computer and the drive modules, handling real-time interpolation and axis-specific control loops. The serial measurement board (3HAC025562-001 or equivalent SMB) collects resolver signals from the 3HAC021350-001 and all other axis motors, transmitting position data back to the controller for closed-loop correction. This feedback chain is critical: any degradation in the SMB connection or resolver signal integrity will directly affect the positioning accuracy of Axis 2.

At the power layer, the IRC5 power supply unit (PSU) and the capacitor bank within the drive cabinet ensure stable DC bus voltage during dynamic acceleration and deceleration cycles. The 3HAC021350-001 motor must receive clean, regulated power to maintain thermal stability and winding insulation integrity over its service life. In redundant or high-availability robotic cell designs, engineers may specify hot-standby controller configurations using the IRC5 dual-cabinet architecture, where the drive system can be isolated and the motor module replaced without full system shutdown — a key advantage for continuous production environments.

The teach pendant (FlexPendant, 3HAC028357-001) provides the human-machine interface layer, allowing engineers to jog Axis 2 manually, verify motor response, and execute fine-calibration routines after motor replacement. Proper calibration using the calibration pendulum and the robot’s calibration marks is essential after installing a new 3HAC021350-001 to restore the robot’s absolute accuracy. The I/O layer — managed through ABB DSQC 652 digital I/O boards or DeviceNet gateway modules — coordinates the robot’s interaction with external conveyors, grippers, vision systems, and safety PLCs, ensuring that Axis 2 motion is synchronized with the broader production cell.

Industrial Application Notes

The ABB 3HAC021350-001 finds application across a wide range of industrial sectors where ABB IRB series robots are deployed as core automation assets. In automotive manufacturing, IRB 6600 and IRB 6700 series robots equipped with this motor module perform spot welding, material handling, and body assembly operations, where Axis 2 carries the full payload of the upper arm and wrist assembly through high-speed, high-cycle trajectories. The motor’s torque density and thermal management characteristics are critical in these environments, where cycle times are measured in seconds and uptime requirements exceed 95%.

In the power generation and electrical equipment sector, ABB robots with 3HAC021350-001 motors are used for transformer core assembly, switchgear handling, and cable routing operations. The precision of Axis 2 positioning directly affects the quality of electrical connections and the alignment of heavy components. In petrochemical and process industries, explosion-proof robot variants using compatible motor modules operate in classified hazardous areas, where the reliability of each axis motor is a safety-critical requirement.

Water treatment and municipal infrastructure projects increasingly deploy ABB robots for pipe inspection, valve actuation, and chemical dosing system maintenance. In mining and metallurgy, heavy-duty IRB robots handle ore sampling, ladle pouring, and furnace charging, where the Axis 2 motor must sustain high torque output under elevated ambient temperatures. Packaging and palletizing lines in food and beverage, pharmaceutical, and consumer goods industries rely on the consistent performance of the 3HAC021350-001 to maintain throughput rates and product placement accuracy across multi-shift operations.

For all these applications, maintaining a verified spare parts inventory — including the 3HAC021350-001 motor module — is a standard practice in reliability-centered maintenance (RCM) programs. ZYPLC supplies this module with a 12-Month Warranty, fully tested and ready for installation, supporting both planned maintenance schedules and emergency breakdown recovery scenarios.

Product Compatibility FAQ

Q1: Is the 3HAC021350-001 compatible with all IRC5 controller variants, and what drive configuration is required?
The 3HAC021350-001 is designed for ABB IRB series robots controlled by the IRC5 platform, including the standard single-cabinet, dual-cabinet, and IRC5 Compact variants. The motor interfaces with the ABB drive unit via the axis computer board, and the resolver feedback is managed through the serial measurement board (SMB). No additional drive hardware modifications are required for standard replacement; however, engineers should verify the axis configuration parameters in RobotStudio or the IRC5 system parameters to ensure the motor data file matches the replacement unit. ZYPLC provides technical documentation support to assist with configuration verification.

Q2: What calibration procedure is required after replacing the 3HAC021350-001, and how does it affect system architecture integrity?
After installing a new 3HAC021350-001, the robot must be recalibrated to restore absolute accuracy. The standard procedure involves using the calibration pendulum (or equivalent calibration tool) to set the Axis 2 calibration position, followed by updating the revolution counter in the IRC5 controller. In systems where the robot is integrated with external position references — such as conveyor tracking or vision-guided assembly — the calibration must be validated against the full system coordinate frame to ensure system integration with upstream and downstream processes. ZYPLC recommends performing a full TCP (Tool Center Point) verification after calibration to confirm system-level accuracy. All units supplied by ZYPLC include a 12-Month Warranty covering manufacturing defects and premature failure.

Q3: How should the 3HAC021350-001 be managed in a long-term maintenance and spare parts strategy for multi-robot installations?
For facilities operating multiple ABB IRB series robots, a proactive spare parts strategy should include at least one 3HAC021350-001 per robot model variant in the installation. Predictive maintenance programs should monitor motor temperature trends, axis current draw, and vibration signatures through the IRC5 diagnostic tools to identify early signs of motor degradation. When a replacement is required, ZYPLC’s in-stock supply ensures rapid delivery, minimizing unplanned downtime. The 12-Month Warranty provided by ZYPLC covers the replacement unit from the date of shipment, and our technical team is available to support installation, calibration, and system recommissioning to restore full production capacity.
