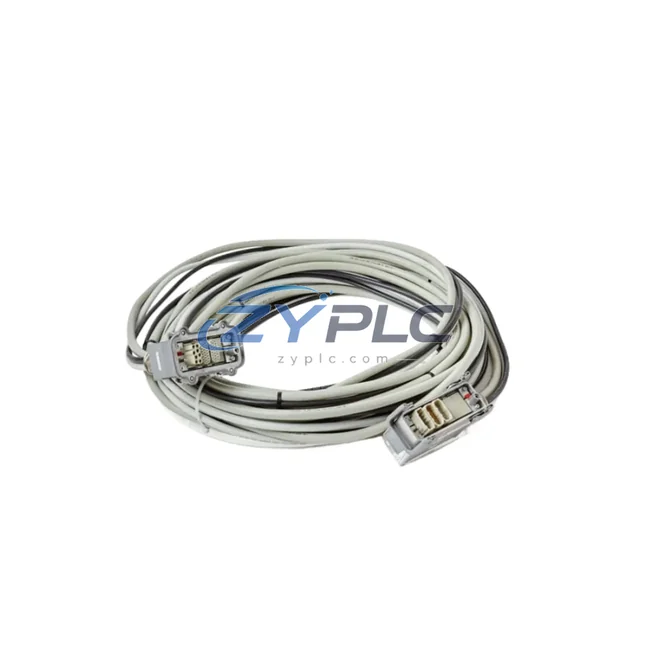

ABB 3HAC022957-001 Robotics Cable for 3HAC Series

ABB 3HAC022957-001 Robotics Cable for 3HAC Series: Compatibility and Replacement Notes

The ABB 3HAC022957-001 is a purpose-engineered robotics cable designed to operate as a critical signal and power transmission component within the ABB 3HAC Series robot control architecture. Rather than functioning as a standalone accessory, this cable is conceived as an integral element of a layered automation system — one that bridges the control layer, I/O layer, drive layer, and mechanical execution layer in a coherent, validated signal path. In high-demand industrial environments such as automotive body-in-white assembly, arc welding cells, palletizing lines, and precision material handling, the integrity of every cable in the robot arm assembly directly determines system uptime, repeatability, and long-term maintenance cost.

Within the ABB IRC5 controller ecosystem, the 3HAC022957-001 cable connects the robot manipulator’s internal wiring harness to the controller cabinet’s signal distribution board, ensuring that encoder feedback, brake control signals, and motor power are transmitted without interruption across the full range of robot motion. This cable is rated for the continuous flexing cycles inherent to 6-axis articulated robot operation, making it a non-negotiable component for maintaining the positional accuracy demanded by modern servo-driven automation.

Product Specification Table

System Compatibility Notes

The 3HAC022957-001 cable does not operate in isolation. Its function is inseparable from the broader ABB IRC5 control architecture, where every layer — from the main computer unit to the final drive axis — depends on reliable signal continuity. Understanding the cable’s role within this coordinated system is essential for engineers specifying replacement parts, planning preventive maintenance schedules, or designing new robot cells.

At the control layer, the ABB IRC5 Main Computer Unit (3HAC025338-001) serves as the central processing node, executing motion programs and managing real-time axis coordination. The main computer communicates with the Drive Unit (3HAC024488-001) via the internal drive bus, which in turn delivers power and control signals to each servo axis. The 3HAC022957-001 cable forms the physical link between the drive unit output and the robot manipulator’s motor and encoder connectors, ensuring that position feedback from the Resolver or Encoder Board (3HAC14550-1) reaches the controller without signal degradation.

At the I/O layer, the ABB DSQC 652 Digital I/O Board manages discrete input and output signals for tooling, safety interlocks, and peripheral devices. The cable’s shielded construction prevents EMI from the drive system from corrupting I/O signals, which is particularly critical in welding applications where high-frequency interference is prevalent. The ABB DSQC 643 Analog I/O Module similarly benefits from the cable’s EMI suppression when analog process signals are routed through the same control cabinet.

At the power layer, the ABB IRC5 Power Supply Unit (3HAC024488-003) provides regulated DC power to the controller’s internal boards. The 3HAC022957-001 cable’s power conductors are rated to carry the motor supply voltage without resistive losses that would affect torque output or thermal performance. In dual-cabinet IRC5 configurations, the Drive Module Cabinet houses additional drive units, and the cable routing between the controller and manipulator must account for the increased cable length and flex requirements of larger robot models such as the IRB 6600 or IRB 7600.

At the network and communication layer, the ABB DSQC 1006 EtherNet/IP Adapter and PROFIBUS DP Module (DSQC 510) handle fieldbus communication between the IRC5 controller and the plant-level PLC or SCADA system. While these modules operate independently of the 3HAC022957-001 cable, their correct function depends on the overall system stability that a properly installed and maintained robot cable provides — a cable fault that causes an axis error will trigger a system stop that affects all network-connected devices in the cell.

At the human-machine interface layer, the ABB FlexPendant (3HAC028357-001) provides the operator interface for jogging, programming, and diagnostics. When a cable fault is detected, the FlexPendant displays axis-specific error codes that guide maintenance engineers directly to the affected cable or connector, reducing mean time to repair and minimizing unplanned downtime.

Industrial Application Notes

The 3HAC022957-001 cable finds application across a wide range of industrial sectors where ABB 3HAC Series robots are deployed in demanding, continuous-operation environments.

In automotive manufacturing, ABB IRB 6600 and IRB 4400 robots equipped with this cable perform spot welding, sealing, and assembly operations on body-in-white lines running three shifts per day. The cable’s flex life rating is critical in these applications, where each robot may complete tens of thousands of motion cycles per week. Preventive cable replacement at scheduled intervals — rather than reactive replacement after failure — is standard practice in automotive plants, and the 3HAC022957-001’s availability as a stocked spare part directly supports this maintenance strategy.

In electronics and precision assembly, ABB IRB 1600 robots use this cable in pick-and-place and screw-driving applications where positional repeatability of ±0.05 mm is required. Any degradation in encoder signal quality caused by a worn or damaged cable will manifest as positional drift, making cable condition monitoring a key element of quality assurance programs in these facilities.

In food and beverage packaging, robots operating in washdown environments require cables that maintain signal integrity despite exposure to moisture and cleaning agents. The 3HAC022957-001’s shielded construction and robust connector design make it suitable for these environments when installed with appropriate cable management and strain relief.

In metal fabrication and arc welding, the cable’s EMI shielding is particularly valuable. Arc welding generates significant electromagnetic interference that can corrupt encoder signals and cause axis faults if cables are not properly shielded and routed. The 3HAC022957-001 is designed to meet the shielding requirements of welding cell installations, supporting consistent weld quality and reducing nuisance faults.

In logistics and warehousing, ABB robots performing palletizing and depalletizing operations run continuously with high cycle rates. The mechanical durability of the 3HAC022957-001 cable under repetitive flexing is a key factor in achieving the multi-year service intervals that logistics operators require to minimize maintenance costs in high-throughput distribution centers.

Product Compatibility FAQ

Q1: Is the 3HAC022957-001 compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
The 3HAC022957-001 is designed for the standard ABB IRC5 single-cabinet controller used with mid-to-large payload robots in the 3HAC Series. Compatibility with the IRC5 Compact (used with smaller robots such as the IRB 120 and IRB 1410) and the IRC5 Panel Mounted Controller should be verified against the specific robot model’s spare parts manual, as cable lengths, connector types, and routing paths differ between controller variants. Our technical team can confirm compatibility for your specific robot serial number and controller configuration before order.

Q2: How does replacing the 3HAC022957-001 cable affect system calibration, and is recalibration required after installation?
Replacing the internal robot cable does not alter the robot’s mechanical structure or encoder reference positions, so full kinematic recalibration is not typically required after a cable replacement. However, it is recommended to perform a fine calibration check using the ABB CalibWare tool or the FlexPendant’s calibration routine after any internal cable replacement to verify that encoder signals are being read correctly and that axis positions are within specification. This step is particularly important in high-precision applications where positional accuracy is a quality-critical parameter.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship, including connector integrity, conductor continuity, and shielding effectiveness under normal operating conditions. It does not cover damage resulting from improper installation, cable routing that exceeds the specified bend radius, or exposure to chemicals outside the cable’s rated resistance. For maintenance planning purposes, the warranty terms confirmed during quotation provides a baseline assurance period during which defective cables will be replaced at no cost, supporting the total cost of ownership calculations that maintenance engineers use when budgeting for spare parts inventory. We recommend maintaining at least one spare 3HAC022957-001 cable per robot cell to enable immediate replacement and minimize unplanned downtime.
