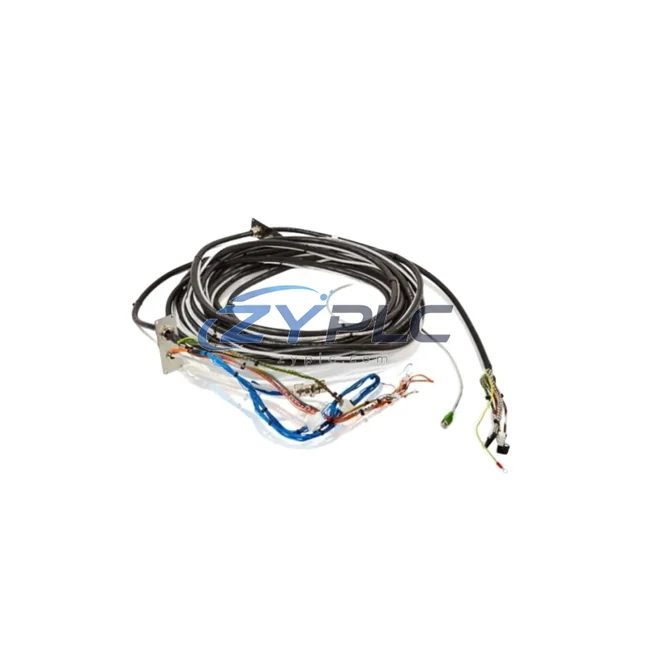

ABB 3HAC024385-001 Teach Pendant Cable for IRC5

ABB 3HAC024385-001 Teach Pendant Cable for IRC5: Continuity and Upstream-Downstream Coordination

In modern industrial robot automation, the integrity of the operator interface layer is as critical as the controller itself. The ABB 3HAC024385-001 Teach Pendant Cable is a factory-engineered interconnect component designed specifically for the ABB IRC5 robot controller platform, ensuring reliable signal transmission between the FlexPendant teach pendant and the IRC5 controller cabinet. As a system-compatible component, it is not merely a cable — it is a precision-engineered element of the ABB IRC5 control architecture that directly affects programming accuracy, operator safety, real-time feedback, and long-term system maintainability.

Within a layered automation system, the teach pendant cable occupies the human-machine interface (HMI) layer, bridging the operator command layer and the motion control execution layer. Any degradation in this link — whether through signal attenuation, connector wear, or mechanical fatigue — directly compromises the robot’s teachability, emergency stop response, and live diagnostic capability. The ABB 3HAC024385-001 is engineered to eliminate these risks through OEM-grade construction, shielded conductors, and robust strain-relief terminations that withstand the repetitive flexing inherent in pendant operation across multi-shift production environments.

This component is fully compatible with the ABB IRC5 Single Cabinet Controller, IRC5 Compact Controller, and IRC5P Panel Mounted Controller, and is also applicable to legacy S4C+ controller installations where cable interface standards are maintained. It supports system integration within mixed-generation ABB robot fleets, enabling engineers to standardize spare parts inventory across IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 series robot cells without controller-specific cable proliferation.

Product Specification Table

System Compatibility Notes

The ABB 3HAC024385-001 functions as the physical and electrical bridge between the operator and the robot’s motion control core. To understand its role fully, it must be viewed within the complete IRC5 control system architecture:

At the controller layer, the ABB IRC5 Main Computer Unit (DSQC 639) processes all motion programs, I/O logic, and safety states. The teach pendant cable delivers real-time operator commands — jog movements, program edits, speed overrides — directly to this processing core. Without a reliable cable interface, the DSQC 639 cannot receive accurate pendant input, making the 3HAC024385-001 a foundational element of controller responsiveness.

At the I/O layer, the ABB DSQC 652 Digital I/O Board and DSQC 651 Analog I/O Board manage field-level signal exchange with sensors, actuators, and safety relays. The teach pendant cable’s E-Stop circuit integrates directly with the IRC5 safety chain, ensuring that pendant-initiated emergency stops propagate correctly through the I/O safety architecture without delay or signal loss.

At the network and communication layer, the IRC5 controller supports PROFIBUS, DeviceNet, EtherNet/IP, and PROFINET fieldbus protocols through dedicated communication boards such as the DSQC 667 PROFINET Device Board. The teach pendant cable does not carry fieldbus traffic, but its reliable operation ensures that engineers can monitor and configure network parameters through the FlexPendant interface without communication interruption during commissioning or live diagnostics.

At the power layer, the ABB IRC5 Power Supply Unit (DSQC 661) provides regulated DC power to all controller boards and the pendant interface. The 3HAC024385-001 cable is rated to carry pendant power within the IRC5’s power distribution architecture, ensuring stable pendant operation even during high-load motion cycles when controller power demand peaks.

At the HMI layer, the ABB FlexPendant (3HAC028357-001) is the primary operator interface device. The 3HAC024385-001 is the sole physical link between the FlexPendant and the IRC5 cabinet. Cable integrity directly determines pendant boot reliability, touchscreen responsiveness, and the accuracy of live position feedback displayed to the operator. A degraded cable introduces latency, intermittent disconnections, and — critically — compromised E-Stop response times that violate ISO 10218-1 robot safety standards.

At the execution layer, the ABB IRC5 Drive Unit (DSQC 668) and axis computer boards translate controller commands into precise servo motor movements. Teach pendant cable reliability ensures that manual jog commands during setup and calibration are transmitted without signal dropout, preventing axis positioning errors that could damage tooling, fixtures, or the robot arm itself.

For system architects managing multi-robot cells, the 3HAC024385-001 supports system integration across IRC5 installations, allowing a single cable specification to serve multiple robot models and controller generations. This reduces spare parts complexity, simplifies maintenance scheduling, and supports rapid cable replacement during unplanned downtime — a critical advantage in 24/7 manufacturing environments.

Industrial Application Notes

Automotive Manufacturing: In automotive body-in-white welding lines, ABB IRB 6640 and IRB 6700 robots perform high-cycle resistance and arc welding operations. The teach pendant cable enables precise TCP calibration, weld program editing, and real-time fault diagnosis without removing the robot from the production cell. Reliable pendant connectivity reduces calibration downtime from hours to minutes, directly improving line OEE.

Electronics Assembly: In precision electronics assembly using IRB 1600 or IRB 2600 robots, the FlexPendant is used for fine-pitch pick-and-place program adjustments. The 3HAC024385-001’s shielded construction prevents EMI interference from nearby servo drives and switching power supplies, ensuring clean signal transmission in electrically noisy environments.

Petrochemical and Process Industries: In hazardous-area robot installations for petrochemical processing, the teach pendant cable must maintain E-Stop circuit integrity under elevated temperature and chemical exposure conditions. The OEM-grade construction of the 3HAC024385-001 ensures compliance with the IRC5 safety architecture requirements in these demanding environments.

Metal Fabrication and Foundry: In foundry and metal fabrication applications using IRB 4600 robots for casting extraction and material handling, the teach pendant cable is subjected to thermal cycling, vibration, and particulate contamination. The robust strain-relief design of the 3HAC024385-001 extends service life in these mechanically aggressive environments, reducing unplanned cable replacement frequency.

Packaging and Palletizing Lines: In high-speed packaging and palletizing systems, rapid product changeovers require frequent robot reprogramming via the FlexPendant. The 3HAC024385-001 supports fast, reliable pendant connection and disconnection cycles, enabling operators to switch between robot programs and product configurations without controller restart or cable-related communication faults.

Product Compatibility FAQ

Q1: Is the ABB 3HAC024385-001 compatible with both IRC5 and S4C+ controller platforms?
Yes. The 3HAC024385-001 is designed for the IRC5 controller family, including the Single Cabinet, Compact, and Panel Mounted variants. It is also applicable to S4C+ installations where the FlexPendant interface connector standard is maintained. For S4C+ systems using older teach pendant models, verify connector compatibility with the specific S4C+ cabinet revision before installation. The alternate part number 3HAC024386-001 covers length variants within the same compatibility envelope.

Q2: How does the 3HAC024385-001 integrate with the IRC5 safety architecture, and what are the installation requirements?
The teach pendant cable carries the IRC5 E-Stop circuit as part of the controller’s safety chain. Correct installation requires full seating of the OEM connector at both the FlexPendant and the IRC5 cabinet interface panel, with the locking collar engaged to prevent vibration-induced disconnection. After installation, the E-Stop function must be verified through the IRC5 safety validation procedure before returning the robot to automatic operation. The 3HAC024385-001’s shielded construction ensures that the E-Stop signal is not susceptible to EMI-induced false triggering in high-noise industrial environments.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects, connector integrity, shielding continuity, and signal transmission performance under normal industrial operating conditions. For maintenance engineers managing multi-robot IRC5 installations, this warranty period aligns with annual preventive maintenance cycles, allowing cable condition assessment and proactive replacement to be scheduled within the warranty window. ZYPLC maintains RFQ-confirmed sourcing of the 3HAC024385-001 to support rapid warranty replacement and emergency spare supply, minimizing robot downtime in production-critical applications.
