ABB 3HAC029032-001 IRC5 Robot Teach Pendant | DSQC 679

ABB 3HAC029032-001 IRC5 Robot Teach Pendant: Industrial Data Link for Smart Factory Automation

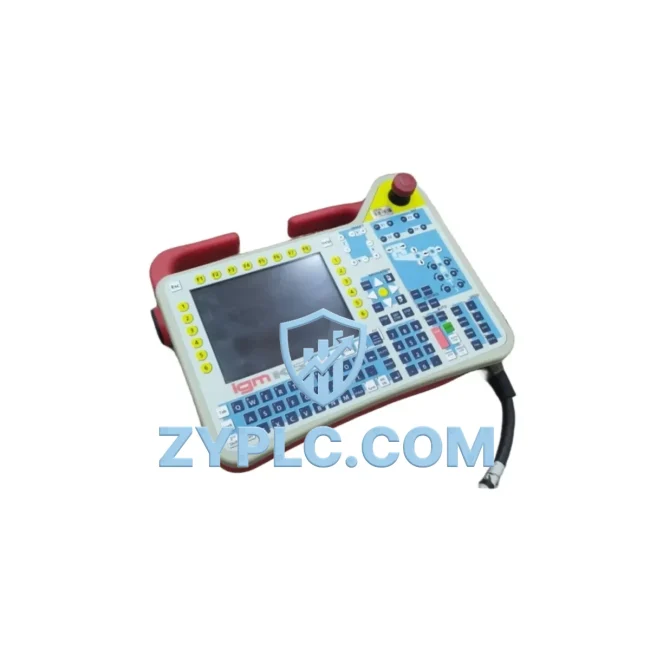

The ABB 3HAC029032-001 (also referenced as 3HAC029032-004 and IGM K5) is the DSQC 679 FlexPendant — ABB’s primary human-machine interface for the IRC5 robot controller platform. Designed for demanding industrial environments, this teach pendant serves as the critical communication node between the robot controller, the production line, and the broader factory automation network. Whether integrated into a standalone robotic cell or embedded within a multi-robot SCADA-managed production system, the DSQC 679 delivers real-time command, monitoring, and diagnostic capability at the operator’s fingertips.

In modern smart factory deployments, the teach pendant is far more than a programming tool — it is the live data terminal that bridges field-level robot motion with supervisory control systems. The 3HAC029032-001 connects directly to the ABB IRC5 controller cabinet via a high-speed proprietary bus, enabling bidirectional data flow: motion programs, I/O status, alarm logs, and system diagnostics all pass through this interface in real time.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory cell, the 3HAC029032-001 FlexPendant sits at the top of the field-level data hierarchy. The IRC5 controller cabinet — often paired with an ABB DSQC 652 I/O board for digital and analog signal management — receives sensor inputs from field devices such as Keyence proximity sensors, Sick safety laser scanners, and Cognex vision systems. These signals are processed by the IRC5’s main computer (DSQC 1000 or DSQC 639 main computer board) and surfaced to the operator through the 3HAC029032-001 pendant interface.

When the robot cell is networked into a plant-wide PROFINET or EtherNet/IP backbone, the IRC5 controller communicates upstream to a Siemens S7-1500 PLC or Allen-Bradley ControlLogix system acting as the line master. The teach pendant’s live I/O monitoring screens allow operators to verify signal states — conveyor triggers, gripper feedback, weld current confirmation — without leaving the robot cell. Alarm conditions detected at the IRC5 level are simultaneously pushed to the plant SCADA system (such as Wonderware InTouch or Ignition by Inductive Automation) via OPC-UA gateway modules, enabling remote supervisory visibility.

For multi-robot lines, a single operator using the 3HAC029032-001 can hot-plug between multiple IRC5 controllers using ABB’s FlexPendant sharing feature, reducing hardware costs while maintaining full programming and diagnostic access across the cell. The pendant’s USB port supports program backup and firmware updates, while the integrated emergency stop circuit connects directly into the IRC5 safety chain — compliant with IEC 62061 and ISO 13849-1 safety standards.

In palletizing and material handling applications, the DSQC 679 pendant interfaces with conveyor PLC systems through the IRC5’s DeviceNet or PROFIBUS DP option modules (DSQC 378 or DSQC 667), enabling the robot to receive pallet pattern data and product counts from upstream line controllers. This data flow — from barcode scanner to PLC to IRC5 to robot motion — is orchestrated and monitored in real time through the 3HAC029032-001 interface, making it an indispensable component of any ABB robot-based automation cell.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial robot integration is protocol fragmentation. A factory floor may simultaneously run PROFIBUS DP legacy devices, newer PROFINET nodes, EtherNet/IP-based safety systems, and proprietary robot controller buses — all generating data that cannot natively communicate with each other. The ABB IRC5 platform, accessed and configured through the 3HAC029032-001 FlexPendant, addresses this through its modular fieldbus option architecture.

By installing the appropriate DSQC communication option board into the IRC5 cabinet, the robot controller becomes a protocol gateway — translating between the robot’s internal RAPID execution environment and the plant’s chosen industrial network. This eliminates the data silos that arise when robot cells operate as isolated islands, disconnected from MES production scheduling, SCADA alarm management, and ERP inventory systems.

Remote diagnostics represent another critical capability enabled by the IRC5 + DSQC 679 combination. Through ABB’s Remote Service platform, fault logs, cycle time data, and predictive maintenance alerts generated at the IRC5 level can be transmitted to ABB’s global service network or to the customer’s own IT infrastructure. This transforms the teach pendant from a local programming tool into a node in a plant-wide industrial IoT architecture — supporting production transparency, OEE tracking, and proactive maintenance scheduling without requiring physical on-site intervention.

For system expansion, the IRC5’s modular design means that additional robots, additional I/O capacity (via DSQC 652 or DSQC 328A expansion boards), and additional network protocols can be added without replacing the core controller or the 3HAC029032-001 pendant. This scalability protects capital investment and supports phased smart factory rollouts — from a single robot cell today to a fully networked, SCADA-integrated production line tomorrow.

All units supplied by ZYPLC are sourced from verified industrial channels, fully tested prior to dispatch, and covered by a 12-month warranty. In-stock inventory ensures rapid fulfillment with global DHL/FedEx express shipping to support urgent production line requirements.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC029032-001 compatible with all IRC5 controller variants?
The DSQC 679 FlexPendant is compatible with the full IRC5 family, including IRC5 Single Cabinet, IRC5 Dual Cabinet, IRC5 Panel Mounted Controller (PMC), and IRC5 Compact. It is not forward-compatible with the newer OmniCore controller platform, which uses the OmniCore FlexPendant (3HAC050483-001). Always verify your controller generation before ordering.

Q2: Can the 3HAC029032-001 be used to configure PROFINET or EtherNet/IP communication on the IRC5?
Yes. The FlexPendant provides full access to the IRC5’s configuration menus, including fieldbus configuration for installed option modules such as DSQC 688 (PROFINET Device) or DSQC 669 (EtherNet/IP Adapter). Network parameters, IP addressing, and I/O signal mapping are all configured directly through the pendant interface.

Q3: What is the communication latency between the FlexPendant and the IRC5 controller?
The 3HAC029032-001 communicates with the IRC5 main computer via a dedicated high-speed Ethernet-based internal bus. Display refresh and I/O status updates occur at the IRC5’s system cycle rate (typically 4ms motion cycle), ensuring that operator inputs and system feedback are processed with minimal latency — critical for safe manual jogging and real-time alarm response.

Q4: Does ZYPLC provide a warranty and pre-shipment testing for the 3HAC029032-001?
Yes. Every ABB 3HAC029032-001 / DSQC 679 unit supplied by ZYPLC undergoes functional testing prior to dispatch, verifying touchscreen response, emergency stop circuit integrity, and IRC5 communication handshake. A 12-month warranty is included with every unit. For urgent requirements or volume orders, contact our team directly for lead time and availability confirmation.
