ABB 3HAC031683-004 Teach Pendant Cable for IRC5

ABB 3HAC031683-004 Teach Pendant Cable for IRC5: Compatibility and Replacement Notes

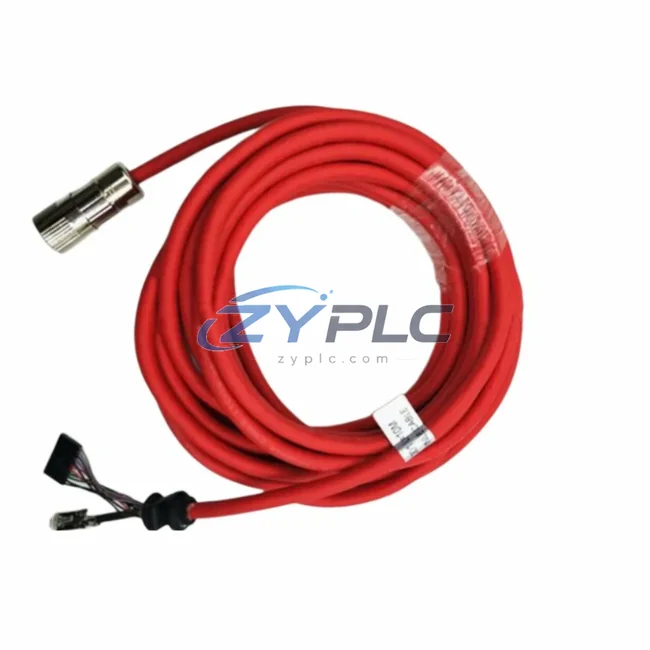

In a fully integrated industrial robot control system, every cable, connector, and communication link plays a defined role in maintaining signal integrity, operational continuity, and system-wide reliability. The ABB 3HAC031683-004 is a 30-meter FlexPendant teach pendant cable purpose-engineered for the ABB IRC5 robot controller platform, serving as the physical and electrical bridge between the operator interface layer and the motion control core. Far from being a passive accessory, this cable is a critical architectural component that determines the responsiveness, safety, and ergonomic reach of the entire robot cell.

Within the IRC5 control architecture, the 3HAC031683-004 connects the ABB FlexPendant (3HAC028357-001) — the primary human-machine interface — directly to the IRC5 controller cabinet. This connection carries bidirectional data streams including motion commands, safety interlock signals, emergency stop circuits, and real-time status feedback. The cable’s 30-meter length is specifically selected for large-format robot cells, extended-reach gantry systems, and applications where the operator must maintain a safe distance from the working envelope, such as arc welding, heavy payload handling, and press-tending automation.

The IRC5 platform is a modular, scalable controller designed to manage single-robot and multi-robot (MultiMove) configurations. The controller cabinet typically integrates the ABB DSQC639 main computer unit, the DSQC643 I/O board, and the DSQC662 fieldbus adapter for PROFIBUS or DeviceNet communication. The 3HAC031683-004 cable interfaces with the teach pendant port on the IRC5 front panel, ensuring that all operator inputs are transmitted with minimal latency and full electrical isolation from the power circuits within the cabinet. This separation is essential for maintaining EMC compliance in environments with high-frequency inverter drives and servo amplifiers.

From a system architecture perspective, the teach pendant cable occupies the human-machine interface (HMI) layer, sitting above the motion control layer (IRC5 drive modules, DSQC601 axis computer) and below the supervisory control layer (RAPID program execution, PLC integration via DSQC688 DeviceNet master). The cable’s shielded construction ensures that the FlexPendant’s touchscreen, joystick, and safety buttons operate without interference from the servo drive switching frequencies or the cabinet’s internal power supply units, such as the DSQC609 power supply module.

For system integrators designing redundant or high-availability robot cells, the 3HAC031683-004 supports hot-swap pendant replacement procedures when combined with the IRC5’s software-controlled pendant enable logic. This means that during scheduled maintenance windows, the teach pendant can be disconnected and reconnected without requiring a full controller restart, reducing downtime and supporting lean maintenance strategies. The cable’s robust connector housing is rated for repeated mating cycles, making it suitable for environments where the pendant is frequently docked and undocked, such as collaborative assembly lines or multi-shift manufacturing operations.

In layered automation architectures, the IRC5 controller communicates upward to the plant-level SCADA or MES system via Ethernet/IP or OPC-UA, and downward to the robot’s servo axes, I/O modules, and safety systems. The teach pendant cable ensures that the operator’s local control authority — including manual jogging, program selection, and speed override — is always available regardless of the network communication status between the IRC5 and the supervisory system. This local control capability is a fundamental requirement in IEC 62061 and ISO 13849 safety-rated robot installations.

The 3HAC031683-004 is compatible with the full range of IRC5 controller variants, including the IRC5 Compact, IRC5 Panel Mounted Controller (PMC), and the standard IRC5 cabinet. It is also forward-compatible with robot models in the ABB IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 series, making it a versatile stock item for facilities operating mixed fleets of ABB robots. Maintaining a spare 3HAC031683-004 in the plant’s critical spare parts inventory directly reduces mean time to repair (MTTR) for any IRC5-based robot cell, as pendant cable failure is one of the most common causes of unplanned robot downtime in high-cycle applications.

All units supplied by ZYPLC are sourced from verified supply channels, individually tested for continuity, shielding integrity, and connector seating before dispatch. Each cable is covered by a warranty terms confirmed during quotation and supported by ZYPLC’s technical team for system integration guidance, including cable routing best practices, strain relief installation, and IRC5 pendant port compatibility verification.

Product Specification Table

System Compatibility Notes

The 3HAC031683-004 operates within a tightly coordinated IRC5 system architecture. At the controller core, the ABB DSQC639 main computer executes RAPID programs and manages all axis motion, while the DSQC643 I/O board handles digital and analog I/O signals from field devices such as grippers, sensors, and safety light curtains. The DSQC662 fieldbus adapter extends the controller’s communication reach to PROFIBUS DP or DeviceNet networks, enabling integration with Siemens S7 PLCs or Allen-Bradley ControlLogix systems on the plant floor.

The DSQC601 axis computer manages the real-time servo loop for each robot axis, receiving motion references from the main computer and sending drive commands to the IRC5’s internal servo drives. The DSQC609 power supply module provides regulated 24VDC to the controller’s logic circuits, I/O modules, and the teach pendant interface — the same interface that the 3HAC031683-004 cable connects to. On the operator side, the ABB FlexPendant (3HAC028357-001) provides the touchscreen programming environment, joystick for manual axis control, and the three-position enabling device required by EN ISO 10218-1 for manual robot operation.

For installations requiring extended communication reach or wireless pendant operation, the 3HAC031683-004’s 30-meter length is often paired with cable management systems including festoon carriers, energy chains (e-chains), and pendant balancers, ensuring that the cable does not become a trip hazard or experience premature wear from repeated flexing. In multi-robot cells using IRC5 MultiMove, each controller requires its own dedicated teach pendant cable, and the 3HAC031683-004 is the standard specification for all IRC5 variants in this configuration.

Industrial Application Notes

The ABB 3HAC031683-004 is deployed across a wide range of industrial automation sectors. In automotive manufacturing, it connects FlexPendants to IRC5 controllers managing spot welding, seam welding, and body-in-white assembly robots, where the 30-meter cable length allows operators to program and jog robots from outside the safety fence. In metal fabrication and press-tending, the cable’s robust shielding protects signal integrity in environments with heavy electrical noise from press drives and induction heaters.

In electronics assembly and semiconductor handling, IRC5-based robots perform high-precision pick-and-place operations, and the teach pendant cable enables fine-tuning of approach paths and tool center point (TCP) calibration without interrupting the production schedule. In food and beverage packaging lines, the cable supports hygienic robot cell designs where the pendant must be stored outside the washdown zone but remain connected to the IRC5 controller inside the enclosure.

For petrochemical and process industries, IRC5 robots are used in hazardous area inspection, valve manipulation, and sample handling. The 3HAC031683-004’s 30-meter reach allows the operator control station to be positioned in a safe area while the robot operates in a classified zone. In mining and heavy industry, the cable’s durability under mechanical stress and temperature variation makes it a reliable choice for robot cells operating in harsh environments with vibration, dust, and wide ambient temperature swings.

Product Compatibility FAQ

Q1: Is the 3HAC031683-004 compatible with all IRC5 controller variants, and can it be used with the IRC5 Compact or Panel Mounted Controller?
Yes. The 3HAC031683-004 uses the standard IRC5 teach pendant connector specification, which is consistent across the IRC5 full cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller (PMC). The cable’s 30-meter length is suitable for all three variants, though in compact installations the excess cable should be managed with appropriate strain relief and coiling to prevent mechanical fatigue at the connector ends.

Q2: How does the 3HAC031683-004 support long-term maintenance and spare parts strategy in a multi-robot facility?
Maintaining at least one spare 3HAC031683-004 per IRC5 controller cluster is a best practice for minimizing MTTR. The cable is a wear item in high-cycle applications due to repeated flexing and connector mating. ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and electrical failures, and our team provides system integration support to help facilities establish preventive replacement schedules based on cycle count and operating environment. Bulk procurement pricing is available for facilities managing five or more IRC5 robot cells.

Q3: What installation and commissioning steps are required when replacing the teach pendant cable on an IRC5 system?
Replacement of the 3HAC031683-004 requires the IRC5 controller to be in manual mode with motors off. Disconnect the existing cable from the teach pendant port on the IRC5 front panel and from the FlexPendant unit. Connect the new 3HAC031683-004, ensuring the keyed connector is fully seated and the locking collar is engaged. Power on the controller and verify that the FlexPendant displays the IRC5 startup screen and that the enabling device and E-Stop functions are operational before returning the robot to automatic mode. No software configuration changes are required for a like-for-like cable replacement.
