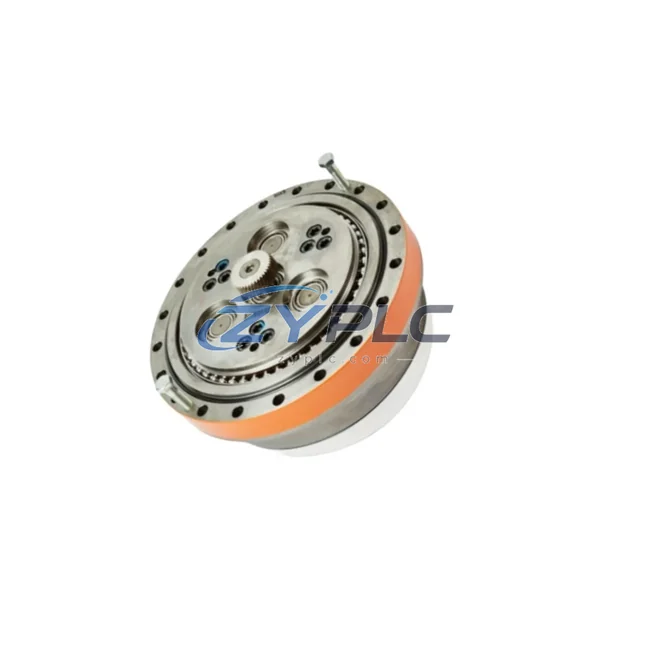

ABB 3HAC037820-002 Gearbox for IRB7600

ABB 3HAC037820-002 Gearbox for IRB7600

The ABB 3HAC037820-002 is a precision-engineered robot joint gearbox designed specifically for the ABB IRB7600 heavy-duty industrial robot series. Within a complete robotic control system architecture, this gearbox occupies a critical position at the mechanical execution layer — translating servo motor torque into controlled, repeatable joint motion across demanding production environments. Its role is not simply mechanical; it is a foundational element that determines the accuracy, repeatability, and long-term reliability of the entire robot cell.

Understanding where the 3HAC037820-002 fits within the broader system hierarchy is essential for engineers responsible for robot commissioning, maintenance planning, and spare parts management. From the control layer down through the drive layer to the mechanical execution layer, every signal and every watt of power passes through a chain of interdependent components — and the gearbox is where that chain meets the physical world.

Product Specification Table

System Compatibility Notes

The ABB 3HAC037820-002 gearbox does not operate in isolation. Its performance is directly shaped by the quality and consistency of every upstream component in the robot’s control architecture. At the control layer, the ABB IRC5 controller — or the newer ABB OmniCore C90 — manages motion planning, path interpolation, and real-time axis coordination. The controller sends velocity and torque commands through the drive system, where ABB DSQC drive units (such as the DSQC 661 or DSQC 663) convert digital motion commands into precise current waveforms delivered to the servo motors mounted at each joint.

The servo motor coupled to this gearbox — typically an ABB IRB7600 axis motor from the 3HAC motor series — must be correctly matched in terms of rated torque and speed ratio to ensure the gearbox operates within its designed load envelope. Mismatched motor-gearbox pairing is one of the most common causes of premature gearbox wear in heavy-payload robot applications.

At the I/O and signal layer, the ABB DSQC 652 digital I/O module and associated DSQC 378 bus adapter manage sensor feedback, end-effector signals, and safety interlocks that influence how the controller commands each axis. Accurate I/O signal integrity ensures that the gearbox is never driven beyond its mechanical limits due to faulty feedback or missed safety signals.

Power distribution to the drive system is managed through the ABB IRC5 power supply unit and associated DSQC 609 power distribution board, which conditions and routes DC bus power to each drive module. Stable, clean power delivery is essential for consistent servo performance and, by extension, for protecting the gearbox from torque spikes caused by voltage irregularities.

At the human-machine interface layer, the ABB FlexPendant (teach pendant) provides operators and maintenance engineers with direct access to axis calibration routines, load configuration, and diagnostic data — all of which directly affect how the gearbox is loaded during operation. Proper axis calibration after a gearbox replacement is a mandatory step to restore the robot’s positional accuracy and prevent uneven load distribution across the joint.

For facilities running multiple IRB7600 units in coordinated cell configurations, the ABB MultiMove software option within the IRC5 architecture enables synchronized multi-robot motion — placing additional demands on gearbox consistency across all units. In these environments, maintaining a standardized spare parts inventory that includes the 3HAC037820-002 is a practical necessity for minimizing unplanned downtime.

Industrial Application Notes

The ABB 3HAC037820-002 gearbox is deployed across a wide range of heavy industrial automation environments where the IRB7600 robot platform is the preferred choice for high-payload, high-precision tasks.

In automotive manufacturing, IRB7600 robots equipped with this gearbox handle body-in-white spot welding, press-to-press transfer, and heavy component assembly. The gearbox’s ability to maintain positional repeatability under continuous high-torque cycling is critical for weld quality and panel alignment consistency.

In foundry and die-casting environments, the IRB7600 operates in high-temperature, high-vibration conditions where gearbox sealing integrity and thermal stability are paramount. The 3HAC037820-002 is engineered to withstand these conditions, making it a reliable choice for machine tending and casting extraction applications.

In heavy assembly and material handling — including aerospace component positioning, large-format palletizing, and structural steel handling — the gearbox supports the robot’s full 500 kg payload capacity while maintaining the sub-millimeter repeatability required for precision fit-up operations.

For process industries such as petrochemical plant maintenance robotics and nuclear facility handling systems, the IRB7600’s robust mechanical architecture — anchored by components like the 3HAC037820-002 — provides the reliability and serviceability required for long-interval maintenance cycles and safety-critical operations.

In all of these environments, the ability to source a tested, warranty-backed replacement gearbox quickly is a key factor in minimizing mean time to repair (MTTR) and maintaining overall equipment effectiveness (OEE). ZYPLC maintains ready stock of the 3HAC037820-002, with pre-shipment functional testing and a warranty terms confirmed during quotation on every unit.

Product Compatibility FAQ

Q1: Is the ABB 3HAC037820-002 compatible with all IRC5 and OmniCore controller configurations?
Yes. The 3HAC037820-002 is a mechanical component within the IRB7600 joint assembly and is compatible with all IRC5 single-cabinet, dual-cabinet, and OmniCore C90 controller configurations. Controller firmware version does not affect gearbox compatibility, though axis calibration must be performed after replacement using the FlexPendant calibration routine.

Q2: What commissioning steps are required after installing the 3HAC037820-002?
After mechanical installation and lubrication verification, the axis must be recalibrated using ABB’s standard calibration pendulum or the CalibWare software tool. Load configuration parameters in the IRC5/OmniCore controller should be verified against the robot’s actual payload and tool data. A full motion test across the axis working range should be completed before returning the robot to production.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC handle warranty claims?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Every unit shipped by ZYPLC undergoes pre-shipment functional testing and inspection. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty inquiry.
