ABB 3HAC043206-001 Servo Motor | IRB4600/IRB6640 Series

ABB 3HAC043206-001 Servo Motor: Precision Drive for Smart Factory Robot Automation

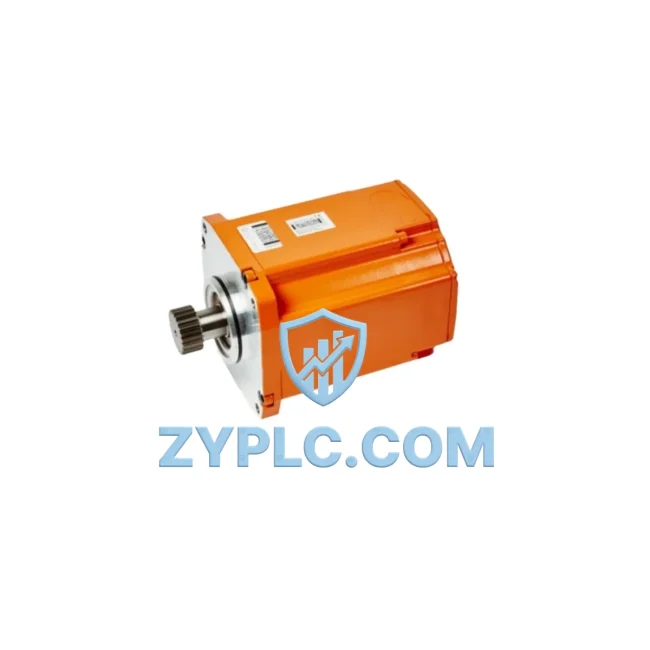

The ABB 3HAC043206-001 is a high-performance servo motor with integrated pinion, engineered for ABB’s IRB4600, IRB6640, IRB6650, and IRB6650S industrial robot series. As a core actuator in ABB’s articulated robot architecture, this servo motor drives the precise joint movements that underpin automated welding, material handling, assembly, and palletizing operations across smart manufacturing environments. With verified stock availability, pre-shipment functional testing, and a 12-month warranty, the 3HAC043206-001 is a trusted replacement and spare part solution for maintenance engineers and system integrators worldwide.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory cell, the ABB 3HAC043206-001 servo motor sits at the heart of the motion control chain. Commands originate from the ABB IRC5 controller cabinet, which processes RAPID program instructions and translates them into real-time torque and velocity signals delivered to each axis drive unit. The ABB DSQC662 drive unit and DSQC663 axis computer manage closed-loop feedback from the motor’s resolver or encoder, ensuring sub-millimeter positional accuracy across the IRB4600’s six axes.

Upstream, the IRC5 controller communicates with plant-level SCADA systems via PROFINET or EtherNet/IP fieldbus modules such as the ABB DSQC688, enabling real-time production data — cycle counts, fault codes, joint temperatures — to flow into supervisory platforms like ABB Ability™ Manufacturing Operations Management (MOM) or third-party SCADA software. Operators interact with the robot cell through the ABB FlexPendant (IRC5 teach pendant), which provides live axis status, alarm visualization, and manual jog control.

For remote diagnostics and predictive maintenance, the ABB Ability™ Connected Services gateway aggregates servo motor health data — vibration signatures, thermal trends, and torque ripple — and transmits it securely to cloud analytics dashboards. This allows maintenance teams to schedule 3HAC043206-001 replacements before unplanned downtime occurs. In multi-robot lines, the IRC5 MultiMove option coordinates up to four robot controllers simultaneously, with each servo motor’s feedback loop synchronized through the ABB SafeMove2 safety module to enforce speed and zone limits.

At the field device level, ABB JSHD4 resolver feedback cables and 3HAC14750-1 motor cables carry encoder signals back to the drive unit, completing the closed-loop servo chain. Integration with Siemens S7-1500 PLCs or Rockwell ControlLogix systems is achieved through the IRC5’s fieldbus adapter cards, allowing the robot cell to participate in broader MES and ERP data flows without protocol barriers.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in robot-intensive manufacturing is the fragmentation of motion data across isolated control systems. When servo motors like the 3HAC043206-001 operate within IRC5 controllers that are not connected to plant SCADA or MES platforms, valuable performance data — joint load history, fault event logs, thermal cycling records — remains trapped inside the controller’s local memory. This data isolation prevents maintenance teams from identifying wear patterns before they cause failures and prevents production managers from correlating robot downtime with overall equipment effectiveness (OEE) metrics.

By deploying the ABB 3HAC043206-001 within a fully networked IRC5 architecture — equipped with PROFINET or EtherNet/IP fieldbus adapters and connected to ABB Ability™ Connected Services — manufacturers can break down these data silos. Real-time servo telemetry flows from the motor’s drive unit through the controller’s communication layer to plant-level SCADA dashboards, enabling transparent production line monitoring. Remote diagnostic access allows ABB service engineers or in-house automation teams to interrogate axis fault histories, adjust servo tuning parameters, and validate replacement motor performance without dispatching on-site personnel.

System scalability is equally addressed: as production lines expand with additional IRB6640 or IRB6650 robot cells, the IRC5 MultiMove architecture and standardized 3HAC-series spare parts inventory ensure that new axes integrate seamlessly into existing SCADA and MES frameworks. Pre-shipment functional testing of every 3HAC043206-001 unit, combined with a 12-month warranty and verified stock availability, ensures that replacement cycles do not introduce additional uncertainty into planned maintenance windows.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC043206-001 compatible with both IRB4600 and IRB6640 robot variants?
Yes. The 3HAC043206-001 servo motor with pinion is designed for use across the IRB4600, IRB6640, IRB6600, IRB6650, and IRB6650S series. Always verify the axis number and robot configuration with your ABB documentation or contact our technical team before ordering.

Q2: How does the servo motor integrate with SCADA and remote monitoring systems?
The 3HAC043206-001 operates within the ABB IRC5 controller ecosystem. The IRC5 supports PROFINET, EtherNet/IP, DeviceNet, and other fieldbus protocols via optional adapter modules (e.g., DSQC688), enabling servo performance data to be transmitted to SCADA platforms, ABB Ability™ dashboards, or third-party MES systems in real time.

Q3: What quality assurance steps are taken before shipment?
Every 3HAC043206-001 unit undergoes pre-shipment functional testing to verify motor winding integrity, encoder/resolver signal quality, and mechanical pinion engagement. Units are shipped with full documentation and are covered by a 12-month warranty against manufacturing defects.

Q4: Can this servo motor be used in a multi-robot synchronized production line?
Yes. When deployed within an IRC5 MultiMove configuration, multiple ABB robots — each equipped with 3HAC-series servo motors — can be synchronized for coordinated motion tasks such as cooperative welding or dual-arm assembly. The ABB SafeMove2 safety module enforces collaborative speed and zone limits across all synchronized axes.
