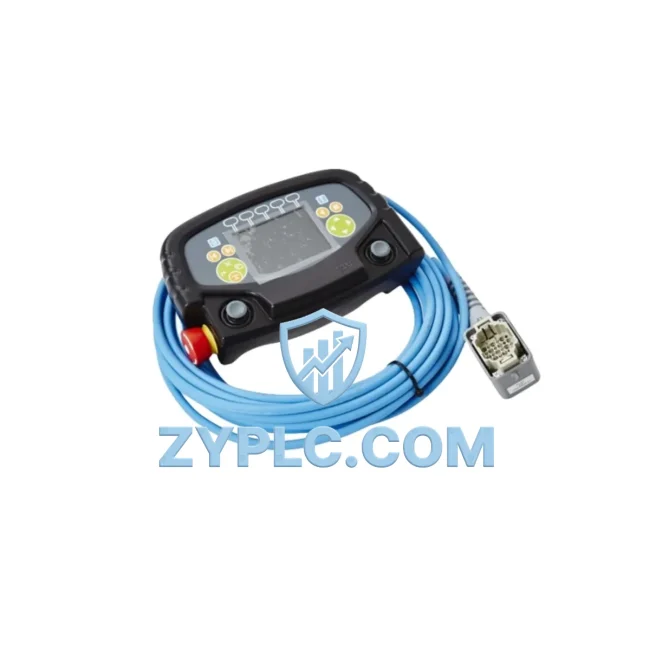

ABB 3HAC043455-003 Industrial FlexPendant for IRC5 Systems

ABB 3HAC043455-003 Industrial FlexPendant: Smart Factory HMI for IRC5 Data Link

The ABB 3HAC043455-003 FlexPendant is a high-performance industrial human-machine interface (HMI) engineered for ABB IRC5 robot controller systems, delivering real-time operator control, RAPID program execution, and live diagnostic feedback across paint automation and general-purpose robotic production lines. Designed specifically for the IRB6700 paint robot series and fully cross-compatible with the IRB4600 (3HAC029236-003), this FlexPendant serves as the critical data bridge between the robot controller, field devices, and upper-level SCADA and MES systems in modern smart factory environments.

In industrial automation architectures, the FlexPendant occupies a pivotal position in the data flow chain. Signals originating from paint flow sensors, atomizer speed encoders, and conveyor position detectors are processed by the ABB IRC5 robot controller, which communicates in real time with the 3HAC043455-003 FlexPendant via a high-speed USB-based tether link. Operators interact with live process variables — spray pressure, TCP speed, axis torque limits — directly on the pendant’s touchscreen interface, enabling immediate parameter adjustment without interrupting production cycles.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory cell, the ABB 3HAC043455-003 FlexPendant operates at the intersection of multiple automation layers. At the field level, paint application robots equipped with ABB IRB6700 arms receive motion path data and I/O trigger commands from the IRC5 Paint Cabinet controller. The FlexPendant connects directly to this controller, providing operators with a live window into axis positions, program pointers, and I/O status — all updated in real time.

Upstream, the IRC5 controller communicates with plant-level SCADA systems via EtherNet/IP or PROFINET fieldbus adapters such as the ABB DSQC688 or DSQC679 option boards, enabling production data — cycle counts, fault codes, throughput rates — to flow continuously into historian databases and MES dashboards. The FlexPendant’s integrated alarm log and event viewer allow maintenance engineers to correlate robot faults with upstream PLC signals from ABB AC500 PLCs or Siemens S7-1500 controllers managing conveyor sequencing and paint booth interlocks.

For remote I/O expansion, the IRC5 system supports ABB DSQC652 digital I/O boards and DSQC643 analog I/O modules, whose real-time status is visible and configurable directly from the 3HAC043455-003 FlexPendant interface. In paint line applications, this means operators can monitor atomizer air pressure analog inputs, trigger electrostatic gun enable outputs, and verify safety relay states — all from a single handheld device without requiring a separate engineering workstation.

At the drive level, ABB ACS880 variable frequency drives controlling conveyor motors and paint booth exhaust fans exchange speed reference and fault status data with the IRC5 controller via PROFIBUS-DP or DeviceNet links, with aggregated drive health data surfaced through the FlexPendant’s I/O monitoring screens. Edge gateway devices such as the ABB Edge Controller or third-party Moxa MGate protocol converters can further bridge legacy Modbus RTU sensors — temperature transmitters, humidity detectors, VOC monitors — into the EtherNet/IP network, making all field data accessible to the FlexPendant operator and the SCADA historian simultaneously.

Solving Data Isolation in Industrial Sites

Paint automation environments are among the most protocol-diverse industrial settings, where legacy PROFIBUS-DP robot controllers, modern EtherNet/IP safety PLCs, proprietary paint applicator fieldbus networks, and Modbus RTU environmental sensors must all coexist and share data. Without a capable HMI at the robot controller level, operators face data isolation: fault conditions on one subsystem are invisible to adjacent systems, leading to delayed response, unplanned downtime, and poor production transparency.

The ABB 3HAC043455-003 FlexPendant directly addresses this challenge by serving as the real-time operator interface for the IRC5 controller, which acts as the central data aggregation node for the robot cell. Through the IRC5’s fieldbus option boards, data from DeviceNet paint applicator nodes, PROFIBUS-DP safety modules, and EtherNet/IP conveyor PLCs is unified into a single controller namespace — and made visible to the operator through the FlexPendant’s I/O panels, event logs, and RAPID variable monitors.

For remote diagnostics, ABB’s RobotStudio software connects to the IRC5 controller via Ethernet, allowing off-site engineers to mirror the FlexPendant view, upload/download RAPID programs, and analyze fault logs without physical access to the production floor. This capability is critical for multi-site manufacturers managing paint lines across geographically distributed facilities, where rapid remote diagnosis reduces mean time to repair (MTTR) and minimizes production loss. Combined with SCADA integration via OPC UA or EtherNet/IP, the 3HAC043455-003 enables full production line transparency — from individual robot axis data to plant-wide OEE dashboards.

System scalability is equally addressed: as production lines expand with additional IRB6700 or IRB4600 robot cells, each new IRC5 controller and its associated FlexPendant integrates into the existing PROFINET or EtherNet/IP network segment without requiring changes to the SCADA architecture, supporting modular factory expansion with minimal engineering overhead.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IRC5 controller support when used with the 3HAC043455-003 FlexPendant?
The IRC5 controller supports PROFIBUS-DP, DeviceNet, EtherNet/IP, PROFINET, and Modbus TCP via optional fieldbus adapter boards (e.g., DSQC688, DSQC679). The FlexPendant itself communicates with the IRC5 via a dedicated high-speed USB tether link, while the controller handles all fieldbus protocol conversion to connected PLCs, drives, and SCADA systems.

Q2: Is the 3HAC043455-003 FlexPendant compatible with both IRB6700 and IRB4600 robot systems?
Yes. The 3HAC043455-003 is the primary FlexPendant for IRB6700 paint applications and is cross-compatible with the IRB4600 (cross-reference: 3HAC029236-003) when used with IRC5 controllers. Additional cross-reference part numbers include 3HNA024941-001 and 3HNA012283-001. Always verify the IRC5 software version compatibility before installation.

Q3: How is network stability ensured in high-EMI paint booth environments?
The IRC5 controller and FlexPendant tether cable are designed to meet IEC 61000 EMC standards suitable for paint booth environments with high electrostatic discharge (ESD) and RF interference. For Ethernet network segments connecting the IRC5 to SCADA or PLC systems, shielded Cat6 or industrial-grade fiber optic links are recommended to maintain sub-10ms communication latency across the automation network.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every ABB 3HAC043455-003 unit supplied by ZYPLC undergoes a full pre-shipment functional test, including touchscreen calibration verification, USB tether communication check, and RAPID interface response testing. The 12-month warranty covers hardware defects and communication failures under normal industrial operating conditions. DHL and FedEx express shipping options are available for global delivery with full tracking.
