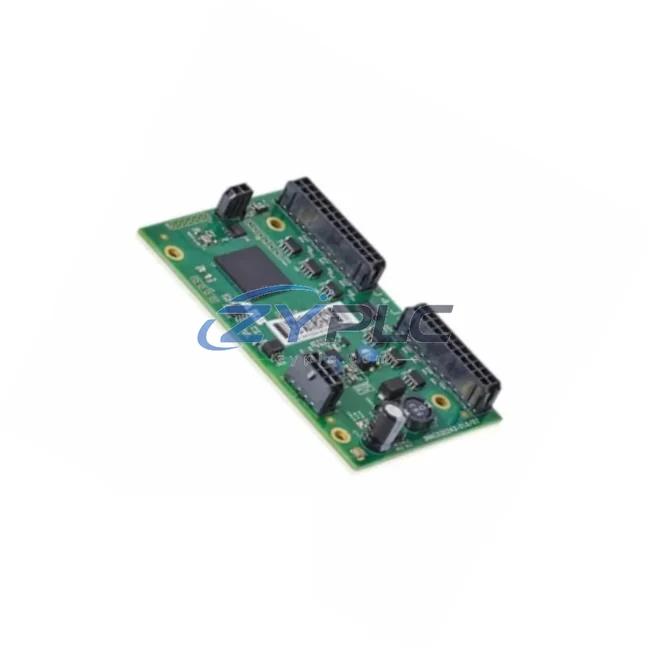

ABB 3HAC044516-001 Brake Release Board for IRC5 Series

ABB 3HAC044516-001 Brake Release Board: Industrial Data Link for IRC5 Robot Systems

The ABB 3HAC044516-001/00 Brake Release Board is a critical control interface component engineered for ABB IRC5 series industrial robot controllers. Designed to operate within the high-demand environment of smart manufacturing, this board manages brake release signals across servo drive axes, ensuring precise motor control, safe robot arm positioning, and reliable communication between the IRC5 controller cabinet and connected drive units. Whether deployed in automotive body welding lines, precision assembly cells, or palletizing stations, the 3HAC044516-001 delivers the signal integrity and communication stability that modern industrial automation demands.

In a fully integrated smart factory architecture, the IRC5 controller communicates with upstream SCADA systems and MES platforms via industrial Ethernet protocols such as PROFINET and EtherNet/IP. The Brake Release Board sits at the intersection of safety logic and motion control, receiving commands from the IRC5 main computer and translating them into deterministic brake engagement or release signals for each robot axis. This real-time data pathway is essential for coordinated multi-axis motion, collision avoidance, and emergency stop compliance in accordance with IEC 62061 and ISO 13849 functional safety standards.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the data flow within an IRC5-based robot cell reveals why the 3HAC044516-001 is indispensable. At the field level, the IRC5 controller receives motion programs from the ABB FlexPendant TP (teach pendant) or from an upstream PC SDK / RobotStudio offline programming environment. These programs are executed by the IRC5 main computer module (3HAC036060-001), which dispatches axis-specific commands to the drive system.

The drive system — typically comprising ABB DSQC 661 or DSQC 662 drive units — receives torque and velocity references via the internal drive bus. Before any axis can move, the Brake Release Board (3HAC044516-001/00) must confirm and execute the brake release command for each motor. This handshake between the safety logic layer and the drive layer is what prevents uncontrolled axis movement during power-up, e-stop recovery, or program restart sequences.

At the network layer, the IRC5 controller connects to plant-level SCADA systems through fieldbus adapters such as the ABB DSQC 688 PROFINET Adapter or the DSQC 669 EtherNet/IP Adapter. These adapters bridge the IRC5’s internal communication bus to the plant Ethernet backbone, enabling real-time status data — including brake state, axis position, and fault codes — to be streamed to Wonderware InTouch, Siemens WinCC, or Ignition SCADA platforms. Remote I/O modules such as the ABB DSQC 652 digital I/O board extend the controller’s reach to peripheral devices including safety light curtains, conveyor interlocks, and pneumatic grippers.

For facilities running mixed-vendor environments, the IRC5 can integrate with Siemens S7-1500 PLCs or Allen-Bradley ControlLogix controllers via PROFINET or EtherNet/IP, with the robot cell operating as a coordinated node within the broader production line control architecture. Edge gateways such as the Moxa MGate MB3270 or HMS Anybus X-gateway can further bridge legacy Modbus RTU devices to the Ethernet-based plant network, ensuring no data island remains isolated from the central monitoring system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial robot integration is protocol fragmentation. Legacy robot controllers often rely on proprietary internal buses that do not natively expose data to modern SCADA or MES systems. The ABB IRC5 platform addresses this through its modular fieldbus adapter architecture, but the integrity of the entire communication chain depends on every hardware component — including the 3HAC044516-001 Brake Release Board — functioning correctly.

A faulty or degraded brake release board can generate intermittent axis fault codes (e.g., IRC5 error 50204 – Brake fault), causing unplanned production stops that are difficult to diagnose remotely. By maintaining verified spare stock of the 3HAC044516-001/00, maintenance teams can execute rapid board-swap recovery procedures, restoring the robot cell to production within minutes rather than hours. This directly supports the OEE (Overall Equipment Effectiveness) targets that smart factory programs demand.

From a data transparency perspective, replacing a failed brake release board restores the complete axis status reporting chain. Once the board is operational, the IRC5 can again report accurate brake engagement status to the SCADA layer, enabling predictive maintenance algorithms to monitor brake cycle counts, detect abnormal release delays, and schedule proactive servicing before the next unplanned downtime event. This closes the loop between physical hardware reliability and digital factory visibility — a cornerstone of Industry 4.0 connectivity strategy.

For multi-robot production lines where several IRC5 cabinets operate in coordinated sequence, a single board failure can cascade into a full-line stop. Stocking the 3HAC044516-001 alongside related spares such as the 3HAC029236-003/09 and 3HAC16035-1/03 ensures that your maintenance inventory covers the full brake release subsystem, minimizing mean time to repair (MTTR) and protecting production throughput.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC044516-001 compatible with all IRC5 controller variants?
The 3HAC044516-001/00 is designed for the ABB IRC5 Single Cabinet and Dual Cabinet controller platforms running RobotWare 5.x and 6.x. It is not directly compatible with the IRC5 Compact or S4C+ controllers. Always verify the controller variant and RobotWare version before ordering. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What communication protocols does the IRC5 system support for SCADA integration?
The IRC5 controller supports PROFINET, EtherNet/IP, DeviceNet, and Modbus TCP through its range of optional fieldbus adapter modules (e.g., DSQC 688, DSQC 669). The Brake Release Board itself operates on the internal IRC5 backplane bus and does not require separate protocol configuration. SCADA integration is handled at the controller level via the fieldbus adapter.

Q3: How is the 3HAC044516-001 tested before shipment?
Every unit supplied by ZYPLC undergoes pre-shipment functional verification including visual inspection, board-level continuity testing, and where applicable, power-on self-test validation. Units are shipped with anti-static packaging and are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions.

Q4: Can this board be used in a system expansion or robot cell upgrade project?
Yes. The 3HAC044516-001 is a standard replacement and upgrade component within the IRC5 ecosystem. For system expansion projects involving additional robot axes, new drive units, or integration of additional safety I/O, this board ensures that the brake release subsystem scales correctly with the expanded drive configuration. Contact our engineering support team for BOM review and compatibility assessment for your specific expansion project.
