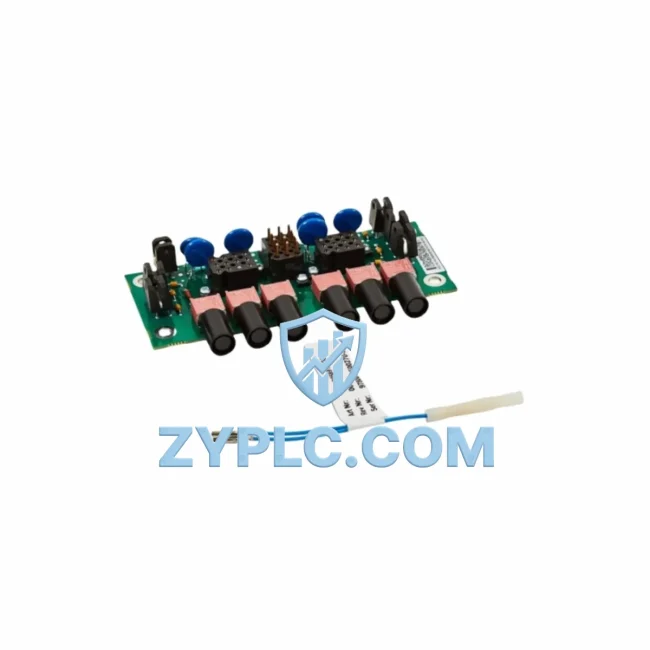

ABB 3HAC046642-001 DSQC1052 Industrial Network Interface for IRC5 Systems

ABB 3HAC046642-001 DSQC1052 Industrial Network Interface for IRC5 Systems: Powering the Smart Factory Data Link

The ABB 3HAC046642-001 DSQC1052 BRB (Battery Backup) Set is a mission-critical component engineered for the ABB IRC5 robot controller platform — one of the most widely deployed robot control architectures in global smart manufacturing. Designed to maintain controller memory integrity and sustain real-time data continuity during power interruptions, this module plays a foundational role in the unbroken data chain that connects field-level robotic devices to upper-level SCADA, MES, and HMI systems.

In modern industrial automation environments, data continuity is not optional. From the moment a robot arm receives a motion command from the IRC5 controller to the instant that execution data is logged in a SCADA dashboard, every millisecond of connectivity matters. The DSQC1052 BRB Set ensures that the IRC5 controller retains its program memory, network configuration, and communication state even when the main power supply is interrupted — eliminating the risk of data loss, unplanned downtime, and costly re-initialization cycles on the production floor.

Network Communication Table

Connected Automation Data Flow

To understand the value of the ABB 3HAC046642-001 DSQC1052, it is essential to trace the full data flow of a robot-integrated production cell. At the field level, sensors and vision systems feed real-time signals into the IRC5 controller via digital and analog I/O modules such as the ABB DSQC652 (Digital I/O Board) and DSQC643 (Analog I/O Board). These signals are processed by the IRC5 main computer — the DSQC1000 — which executes RAPID programs and coordinates motion trajectories with sub-millisecond precision.

The IRC5 controller communicates upstream with SCADA and MES platforms through industrial Ethernet networks, often using EtherNet/IP or PROFINET protocol adapters such as the ABB DSQC688 (EtherNet/IP Adapter) or DSQC679 (PROFINET Device Board). These communication boards allow the robot controller to exchange production data — cycle counts, fault codes, torque readings, and weld parameters — with supervisory systems in real time.

At the HMI layer, operators interact with the robot cell through the ABB FlexPendant (IRC5 Teach Pendant), which provides a live interface to controller status, alarm logs, and program execution states. In larger installations, plant-wide visibility is achieved through SCADA platforms connected via managed industrial Ethernet switches — such as those from the Hirschmann MICE or Cisco IE3000 series — that segment robot cell traffic from broader plant networks.

Remote I/O expansion within the robot cell is often handled by ABB AC500 PLC remote I/O modules or third-party distributed I/O systems communicating over PROFIBUS-DP or DeviceNet. Drive systems — including ABB ACS880 servo drives and ACS580 variable frequency drives — receive speed and torque references from the IRC5 controller, closing the motion control loop across the entire robotic workcell.

The DSQC1052 BRB Set sits at the heart of this data architecture. When a power event occurs — whether a planned shutdown, an emergency stop, or a grid fluctuation — the BRB module sustains the IRC5 controller’s volatile memory long enough to preserve the current program state, network configuration, fieldbus node addresses, and communication parameters. Without this protection, every power cycle risks corrupting the controller’s internal data, forcing engineers to manually re-configure network settings, reload programs, and re-establish fieldbus connections — a process that can take hours and halt production entirely.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where individual machines, controllers, and subsystems operate as disconnected islands, unable to share real-time information with the broader plant network. The ABB IRC5 platform, when properly equipped and maintained, is designed to overcome this challenge. However, component failures — particularly in power management and memory backup modules — can silently degrade network connectivity and create exactly the kind of data isolation that smart factory initiatives are designed to eliminate.

The 3HAC046642-001 DSQC1052 BRB Set directly addresses several critical failure modes:

Protocol Inconsistency After Power Loss: When an IRC5 controller loses its battery backup, fieldbus node addresses and protocol configuration data stored in volatile memory can be corrupted. This causes the controller to appear on the network with incorrect identifiers, breaking PROFINET or EtherNet/IP communication with upstream SCADA systems. Replacing the DSQC1052 BRB Set restores the controller’s ability to maintain consistent protocol identity across power cycles.

Remote Monitoring Gaps: SCADA systems rely on continuous, uninterrupted data streams from robot controllers to generate accurate OEE (Overall Equipment Effectiveness) metrics, alarm histories, and production reports. A failed BRB module introduces gaps in this data stream — not just during power events, but also during routine controller restarts — making it impossible to achieve the production transparency that Industry 4.0 initiatives demand.

Production Line Transparency: In multi-robot cells where several IRC5 controllers operate in coordinated sequences, a single controller losing its network state can cascade into a full line stoppage. The DSQC1052 BRB Set ensures that each controller in the cell maintains its network presence and program state independently, supporting the kind of granular, machine-level visibility that modern MES platforms require.

System Scalability: As production lines expand and new robot cells are integrated into the plant network, the reliability of each IRC5 controller’s memory and communication subsystem becomes increasingly important. A properly functioning BRB module is a prerequisite for seamless system expansion — ensuring that new controllers can be added to the network without disrupting the communication state of existing nodes.

Industrial Connectivity FAQ

Q1: Does the ABB 3HAC046642-001 DSQC1052 BRB Set affect communication latency in the IRC5 controller?
No. The DSQC1052 BRB Set is a passive power backup module that operates independently of the IRC5 controller’s active communication stack. It does not introduce any latency into EtherNet/IP, PROFINET, or PROFIBUS-DP data exchanges. Its function is to sustain memory and network configuration during power interruptions, not to process or route communication data.

Q2: Is the DSQC1052 compatible with all IRC5 controller variants, including Panel Mounted and Dual Cabinet configurations?
The 3HAC046642-001 DSQC1052 BRB Set is designed for the ABB IRC5 controller family. Compatibility with specific IRC5 variants — including Single Cabinet (M2004), Dual Cabinet, and Panel Mounted (IRCP) configurations — should be verified against the controller’s hardware revision and software version. Our technical team can assist with compatibility confirmation prior to shipment.

Q3: How is network stability ensured after replacing the DSQC1052 BRB Set?
After installation, the IRC5 controller should be powered on and the fieldbus configuration verified through the FlexPendant or RobotStudio software. PROFINET device names, EtherNet/IP node addresses, and PROFIBUS-DP station numbers should be confirmed against the plant network topology. All units supplied by ZYPLC undergo pre-shipment functional testing to verify battery integrity and module communication before dispatch.

Q4: What warranty and after-sales support is provided with the ABB 3HAC046642-001 DSQC1052?
All ABB 3HAC046642-001 DSQC1052 BRB Sets supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical support team is available to assist with installation guidance, compatibility verification, and post-installation troubleshooting. Global shipping via DHL and FedEx is available with full tracking.
