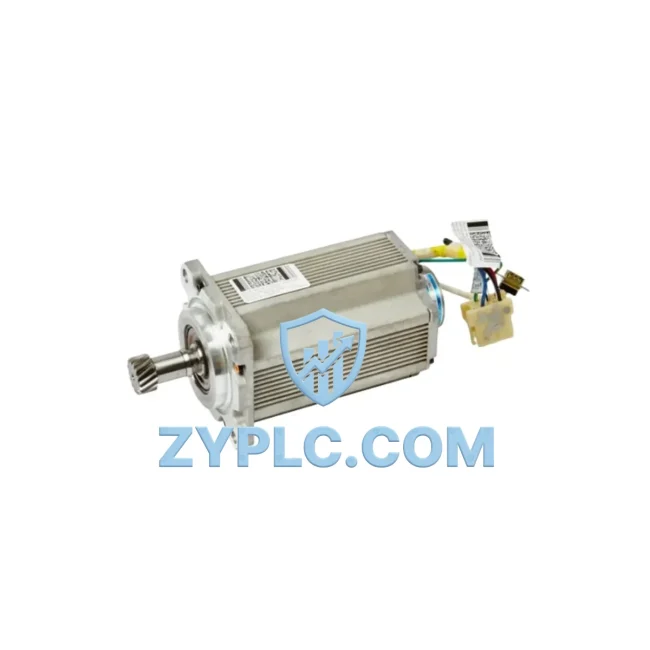

ABB 3HAC047577-002 IRC5 Robot Drive Unit for Axis 4/5/6 Type D

ABB 3HAC047577-002: Industrial Robot Drive Unit for IRC5 Smart Factory Data Links

The ABB 3HAC047577-002 is a high-performance IRC5 Robot Drive Unit engineered for Axis 4, 5, and 6 control in ABB’s IRC5 robot controller platform. As a Type D servo drive module, it sits at the heart of the robot’s motion control architecture — translating real-time commands from the IRC5 controller into precise torque and velocity outputs for the robot’s wrist axes. In modern smart factory deployments, this drive unit is not merely a motion component; it is a critical node in the industrial data chain that connects field-level actuators to supervisory control systems, enabling seamless data flow from the robot cell to SCADA, MES, and cloud analytics platforms.

Sourced directly from ABB’s manufacturing base in Sweden and fully tested prior to shipment, the 3HAC047577-002 is available in verified stock at ZYPLC with a 12-month warranty, global DHL/FedEx logistics, and rapid RFQ response. Whether you are maintaining an existing IRC5 robot line or commissioning a new automated cell, this drive unit delivers the reliability and communication integrity that Industry 4.0 environments demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated IRC5 robot cell, the ABB 3HAC047577-002 drive unit operates within a layered automation architecture where data flows continuously between field devices and upper-level systems. At the field level, encoder feedback from the robot’s wrist joints — Axis 4, 5, and 6 — is captured and transmitted back through the drive unit to the IRC5 main computer (DSQC1000 or DSQC679), which executes the motion program and closes the servo loop in real time. This tight feedback cycle, running at sub-4ms intervals, is what enables the IRC5 platform to achieve the path accuracy and repeatability demanded by precision assembly and welding applications.

The IRC5 controller communicates upstream via its fieldbus option boards. When equipped with the DSQC688 DeviceNet Master/Slave or DSQC667 PROFIBUS-DP option, the IRC5 can exchange I/O data with Siemens S7-300/S7-1500 PLCs or Allen-Bradley ControlLogix systems on the plant network, allowing the robot cell to receive production orders and report cycle status without manual intervention. For Ethernet-based plants, the DSQC1006 EtherNet/IP adapter enables direct integration with Rockwell Automation’s Studio 5000 environment, while the IRC5’s built-in OPC-UA server exposes robot state, program variables, and alarm data to SCADA platforms such as Ignition, WinCC, or FactoryTalk.

Remote I/O expansion within the robot cell is typically handled via ABB DSQC652 or DSQC651 digital I/O boards mounted inside the IRC5 cabinet, feeding signals from safety light curtains, part-present sensors, and pneumatic valve banks into the robot controller’s I/O bus. Upstream, a Moxa EDS-308 or similar industrial managed switch aggregates Ethernet traffic from the IRC5, vision systems, and conveyor PLCs onto the plant backbone, ensuring deterministic packet delivery and VLAN segmentation between the robot cell and the MES layer.

For plants running ABB Ability™ Connected Services, the IRC5 can push performance KPIs — including drive load, axis temperature, and predictive maintenance alerts — to the cloud via an ABB Edge Gateway or a third-party IIoT gateway such as the Advantech WISE-5000 series. This data pipeline transforms the 3HAC047577-002 drive unit from a standalone motion component into a live data source within the factory’s digital twin, enabling remote diagnostics, OEE tracking, and proactive spare parts planning without dispatching on-site engineers.

HMI operators monitoring the robot cell through a ABB CP600 panel or a PC-based SCADA station can view real-time axis torque trends, fault codes, and program execution status sourced directly from the IRC5 drive data. When the 3HAC047577-002 detects an overcurrent or encoder fault, the alarm propagates through the IRC5 system bus, triggers an e-stop signal to the safety PLC, and simultaneously logs the event to the SCADA historian — giving maintenance teams a timestamped fault record for root-cause analysis.

Solving Data Isolation in Industrial Robot Cells

One of the most persistent challenges in industrial robot deployments is data isolation — the condition where the robot cell operates as a black box, producing parts but sharing no actionable data with the broader plant network. This isolation typically stems from protocol mismatches between the robot controller and the plant PLC, lack of standardized OPC-UA or MQTT endpoints, and aging fieldbus infrastructure that cannot carry modern Ethernet traffic.

The ABB 3HAC047577-002 drive unit, operating within the IRC5 platform, directly addresses this challenge. The IRC5’s multi-protocol fieldbus architecture — supporting DeviceNet, PROFIBUS-DP, EtherNet/IP, and Modbus TCP simultaneously through option boards — eliminates the need for external protocol converters in most plant environments. A Siemens TIA Portal-managed line and an Allen-Bradley ControlLogix cell can both exchange I/O handshakes with the same IRC5 controller without gateway middleware, reducing latency and eliminating single points of failure in the communication chain.

For legacy sites where the IRC5 must interface with older PROFIBUS or RS-485 networks, the IRC5’s fieldbus option architecture allows a DSQC667 PROFIBUS-DP slave board to be installed alongside an EtherNet/IP adapter, enabling the robot to participate in both network generations simultaneously. This dual-protocol capability is particularly valuable during phased plant modernization projects, where new Ethernet infrastructure is being rolled out alongside existing fieldbus segments.

Production line transparency is achieved through the IRC5’s OPC-UA server, which exposes structured robot data — cycle counts, axis positions, program names, and fault histories — to MES and ERP systems without custom middleware. Plant managers can track robot utilization, downtime causes, and throughput rates in real time from a central dashboard, turning the robot cell from a data island into a fully visible production asset. Combined with the 12-month warranty and pre-shipment testing provided by ZYPLC, the 3HAC047577-002 ensures that replacement drives are drop-in compatible and network-ready from day one, minimizing reconfiguration time during unplanned maintenance events.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IRC5 support when using the 3HAC047577-002 drive unit?
The IRC5 controller supports DeviceNet, PROFIBUS-DP, EtherNet/IP, Modbus TCP, and OPC-UA through its modular fieldbus option board architecture. The 3HAC047577-002 drive unit communicates internally via the IRC5 servo link bus and does not require separate protocol configuration — all network settings are managed at the IRC5 controller level through RobotStudio or the FlexPendant.

Q2: How does the 3HAC047577-002 affect network stability and real-time performance in the robot cell?
The drive unit operates on the IRC5’s internal servo bus at a fixed cycle rate (≤4 ms), completely isolated from the plant Ethernet network. This architecture ensures that fieldbus traffic fluctuations or network congestion on the plant backbone have no impact on the robot’s motion control loop, guaranteeing deterministic servo performance regardless of upstream network load.

Q3: Can the 3HAC047577-002 be integrated with SCADA and remote monitoring systems?
Yes. The IRC5 platform supports OPC-UA server functionality, allowing SCADA systems such as Ignition, WinCC, and FactoryTalk to subscribe to robot data tags including drive status, axis load, fault codes, and cycle counters. For cloud-based monitoring, ABB Ability™ Connected Services can be configured to push drive health data to remote dashboards, enabling predictive maintenance and remote diagnostics without on-site access.

Q4: What warranty and testing standards apply to the 3HAC047577-002 supplied by ZYPLC?
Every ABB 3HAC047577-002 unit shipped by ZYPLC undergoes pre-shipment functional testing to verify servo communication, power stage integrity, and encoder interface operation. All units carry a 12-month warranty covering manufacturing defects and functional failures. Global logistics via DHL and FedEx ensure fast delivery with full tracking. For volume orders or urgent requirements, contact ZYPLC at +86 19859288691 or [email protected] for a rapid RFQ response.
