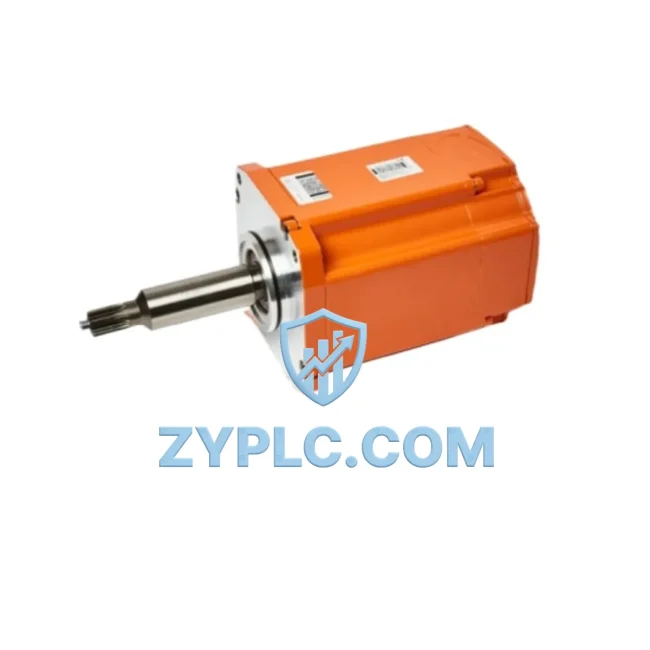

ABB 3HAC057546-003 Industrial Robot Servo Motor for IRC5 Systems

ABB 3HAC057546-003 Industrial Robot Servo Motor for IRC5 Systems: Precision Motion Control at the Core of Smart Factory Automation

The ABB 3HAC057546-003 is a high-performance robot servo motor with pinion, engineered specifically for ABB IRC5 robot controllers and the IRB series of industrial manipulators. As a critical motion-control component within ABB’s integrated robotics architecture, this servo motor drives axis movement with exceptional torque accuracy, positional repeatability, and dynamic response — forming the mechanical and electrical backbone of automated production lines across automotive, electronics, logistics, and precision manufacturing sectors.

In modern smart factory environments, the servo motor is far more than a mechanical actuator. It is a data-generating node embedded within a closed-loop control network. The 3HAC057546-003 interfaces directly with the ABB IRC5 controller’s drive unit — typically the ABB DSQC662 or DSQC663 drive module — transmitting real-time encoder feedback, torque load data, and axis position signals back to the controller’s motion processor. This bidirectional data flow enables the IRC5 system to execute sub-millimeter path corrections at high cycle rates, supporting demanding applications such as arc welding, material handling, machine tending, and assembly.

Network Communication Table

Connected Automation Data Flow

The ABB 3HAC057546-003 servo motor operates as an active participant in the IRC5 robot’s closed-loop motion network. When a production task is initiated — whether triggered by a PROFINET-connected PLC such as a Siemens S7-1500 or an EtherNet/IP command from an Allen-Bradley ControlLogix — the IRC5 controller translates the motion path into axis-level torque and velocity commands. These commands are routed through the ABB DSQC662 drive module, which energizes the 3HAC057546-003 motor windings with precisely modulated current.

Simultaneously, the motor’s integrated resolver feeds back real-time angular position data to the IRC5’s motion processor via the ABB SMB (Serial Measurement Board) — typically the 3HAC031670-001 — which aggregates encoder signals from all robot axes and transmits them over the internal axis measurement bus. This continuous feedback loop allows the IRC5 to correct positional deviations within microseconds, maintaining path accuracy even under variable load conditions.

At the supervisory level, the robot cell’s operational data — cycle times, axis load percentages, fault codes, and motor temperature trends — is aggregated by the IRC5 and made available to SCADA platforms and MES systems via the ABB RobotWare OPC-UA server or through fieldbus adapters such as the DSQC688 PROFINET device module. HMI panels connected to the cell — including ABB CP600 operator panels or third-party Weintek / Siemens TP series HMIs — can display live axis status, alarm histories, and motor diagnostics, enabling operators to monitor servo health without interrupting production.

For multi-robot cells or flexible manufacturing systems, the IRC5 controller communicates with upstream ABB RobotStudio simulation environments and downstream conveyor PLCs through DeviceNet or EtherNet/IP fieldbus adapters, ensuring that the 3HAC057546-003-driven axes remain synchronized with the broader production flow. Remote I/O modules — such as the ABB CI854 PROFIBUS DP adapter — extend the robot cell’s connectivity to distributed sensor arrays and safety relay systems, completing the data chain from field device to enterprise dashboard.

Solving Data Isolation in Industrial Robot Cells

One of the most persistent challenges in industrial robotics maintenance is the isolation of servo-level fault data from plant-wide monitoring systems. When a robot axis develops a torque anomaly or encoder drift — symptoms that often precede a 3HAC057546-003 motor failure — the fault code is typically trapped within the IRC5 controller’s local error log, invisible to the SCADA operator until a production stoppage occurs.

By integrating the IRC5 controller with an OPC-UA gateway or a PROFINET-to-Ethernet bridge, maintenance teams can stream axis-level diagnostics — including motor current draw, resolver signal quality, and thermal load — directly into predictive maintenance platforms. This transforms the servo motor from a passive mechanical component into a real-time data source, enabling condition-based maintenance scheduling that reduces unplanned downtime by identifying degradation patterns weeks before failure.

Protocol fragmentation is another common barrier. Legacy robot cells may use DeviceNet for I/O communication while newer PLC infrastructure operates on PROFINET or EtherNet/IP. ABB’s IRC5 fieldbus adapter architecture addresses this by supporting multiple protocol stacks simultaneously, allowing the 3HAC057546-003-equipped robot to participate in heterogeneous network environments without gateway bottlenecks. For sites undergoing digital transformation, this protocol flexibility is essential for achieving production line transparency and enabling remote diagnostics from centralized control rooms or cloud-based MES platforms.

ZYPLC maintains verified stock of the ABB 3HAC057546-003 with full traceability documentation. Every unit undergoes pre-shipment functional testing and is covered by a 12-month warranty, ensuring that replacement motors arrive ready for immediate installation with minimal production interruption.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC057546-003 compatible with all IRC5 cabinet variants?
The 3HAC057546-003 is designed for ABB IRC5 single-cabinet and dual-cabinet configurations and is compatible with IRB series robots including the IRB 1200, IRB 1600, IRB 2600, IRB 4600, and IRB 6640. Always verify the axis assignment and pinion specification against your robot’s mechanical unit documentation before installation.

Q2: Can this servo motor’s operational data be integrated into a SCADA or MES system?
Yes. The IRC5 controller exposes motor diagnostics — including axis load, fault codes, and cycle data — via OPC-UA, PROFINET, EtherNet/IP, or DeviceNet fieldbus adapters. This data can be consumed by SCADA platforms such as Ignition, WinCC, or FactoryTalk, enabling real-time monitoring and predictive maintenance workflows.

Q3: What is the lead time and warranty coverage for the 3HAC057546-003?
ZYPLC stocks the ABB 3HAC057546-003 for immediate dispatch via DHL or FedEx Express to global destinations. All units are covered by a 12-month warranty and undergo pre-shipment functional testing to verify encoder integrity and mechanical condition.

Q4: How does replacing a faulty 3HAC057546-003 affect network communication stability in the robot cell?
A degraded servo motor can introduce axis jitter and resolver signal noise that propagates as positional errors through the IRC5’s motion processor, potentially triggering safety stops that disrupt the entire cell’s fieldbus communication cycle. Replacing the motor with a verified 3HAC057546-003 restores clean encoder feedback, stabilizes the IRC5’s axis bus, and eliminates fault-induced communication interruptions across connected PLC, HMI, and SCADA systems.
