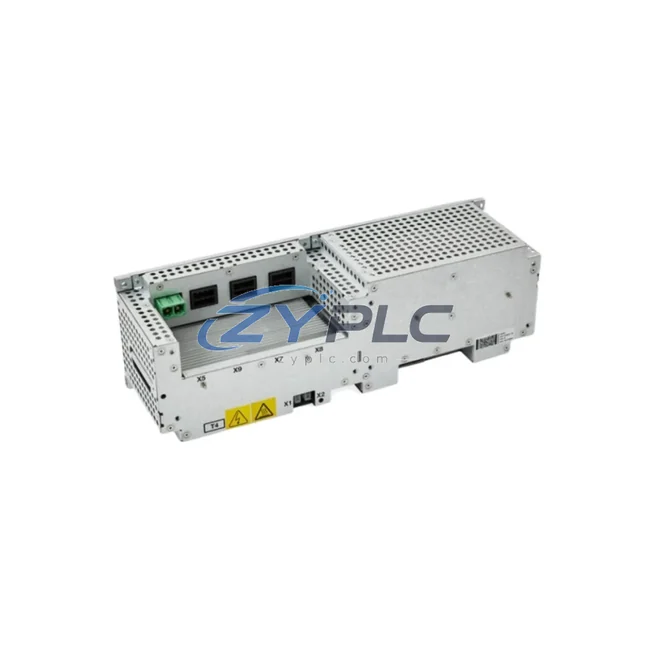

ABB 3HAC063913-001 Drive for IRC5 Automation

ABB 3HAC063913-001 Drive for IRC5 Automation

The ABB 3HAC063913-001 (DSQC3041) is a high-efficiency robot drive module engineered for ABB IRC5 controller platforms. Designed to deliver precise motor control with minimized power draw, this drive module plays a central role in reducing unplanned downtime across multi-axis robotic systems. Whether deployed in automotive body welding lines, electronics assembly cells, or heavy-duty material handling stations, the 3HAC063913-001 enables factories to achieve tighter production cycles while keeping energy consumption under control. Every unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility and Application

In a fully optimized IRC5-based robotic cell, the 3HAC063913-001 DSQC3041 does not operate in isolation — it functions as the power conversion and motor regulation core within a layered automation architecture. At the controller level, the ABB IRC5 Main Computer DSQC1000 (or its successor DSQC1018) issues motion trajectories and torque commands that the drive module translates into precise axis movements. The DSQC663 I/O module handles digital and analog signal exchange with peripheral equipment, ensuring that conveyor interlocks, gripper actuators, and safety gates are synchronized with the robot’s motion profile — eliminating unnecessary hold states that waste energy.

On the power supply side, the ABB DSQC609 and DSQC661 power distribution units regulate the 24 VDC logic rail feeding the controller backplane, while the drive module itself manages the high-voltage AC-to-DC conversion for axis motors. When the robot decelerates or performs a controlled stop, the 3HAC063913-001 supports regenerative energy feedback within the drive bus, reducing net energy consumption during high-cycle operations. This is particularly valuable in press-tending or palletizing applications where the robot performs repetitive vertical movements with significant inertial loads.

For multi-robot installations, the ABB IRC5P Panel Mounted Controller combined with DSQC3041 drive modules across multiple axes allows centralized condition monitoring via the ABB RobotStudio energy statistics module. Pairing the drive with the DSQC688 fieldbus adapter or DSQC1006 PROFINET device module enables real-time drive status and power data to be streamed to a SCADA or MES platform, giving energy managers visibility into per-axis consumption trends. The ABB SafeMove2 safety controller, often installed alongside the drive in collaborative or fenced cells, further reduces unplanned downtime by enabling speed-limited safe zones rather than full stops when operators enter the work envelope.

At the field level, integrating the robot cell with an ABB B23 energy meter or compatible third-party power analyzer on the incoming supply circuit allows production engineers to correlate robot cycle data with actual kWh consumption — a prerequisite for ISO 50001 maintenance planning compliance in automotive and tier-1 supplier facilities.

Maintenance and Replacement Notes

Factories running ABB IRC5 robots with aging or failed drive modules frequently experience two compounding problems: unplanned downtime and elevated energy costs. A degraded drive module forces the controller to compensate with higher current draw, increasing thermal stress on adjacent components and accelerating wear on motor windings. Replacing a worn or failed axis drive with a tested 3HAC063913-001 DSQC3041 restores the designed torque-to-current ratio, directly reducing per-cycle energy consumption.

In high-throughput automotive welding lines where robots operate at 85–95% duty cycle, even a 3–5% improvement in drive efficiency translates to measurable reductions in monthly electricity costs across a multi-robot cell. The 3HAC063913-001 supports the IRC5’s built-in QuickMove and TrueMove motion optimization algorithms, which minimize path deviation and reduce the number of corrective micro-movements that consume additional power without contributing to productive work.

Predictive maintenance strategies benefit directly from a properly functioning drive module. When the DSQC3041 operates within its rated parameters, the IRC5 controller’s event log remains clean — abnormal current spikes, thermal warnings, and axis error codes that indicate impending failure are suppressed. Maintenance teams using ABB Ability™ Connected Services can monitor drive health remotely, scheduling replacement during planned downtime windows rather than reacting to emergency stoppages that disrupt production schedules and inflate overtime costs.

For facilities managing spare parts inventory, stocking a verified 3HAC063913-001 unit reduces mean time to repair (MTTR) from days to hours. Our inventory is maintained with regular stock checks, and all units are dispatched with full test documentation. Lead times are confirmed at the time of order, and express shipping options are available for urgent production recovery scenarios.

Product Sourcing FAQ

Q1: How does the 3HAC063913-001 DSQC3041 contribute to operational stability in an IRC5 robot cell?
The DSQC3041 drive module manages AC-to-DC power conversion and motor current regulation for one or more robot axes. A properly functioning drive maintains the designed efficiency curve of the axis motor, avoiding the excess current draw caused by compensation loops in a degraded drive. In regenerative braking phases, the module returns energy to the drive bus rather than dissipating it as heat, reducing net energy consumption per production cycle.

Q2: Is the 3HAC063913-001 compatible with all IRC5 controller variants?
The DSQC3041 is designed for the ABB IRC5 platform, including the standard single-cabinet and dual-cabinet configurations. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6700, etc.) depends on the axis configuration and drive slot assignment within the controller. We recommend confirming the existing drive module part number from your IRC5 service manual or controller label before ordering. Our technical team can assist with cross-referencing if needed.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every 3HAC063913-001 unit undergoes a full functional test including power-on verification, communication bus handshake confirmation, and load simulation prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental ratings. Warranty claims are processed with priority turnaround to minimize production impact.

Q4: Can this drive module be used as a direct replacement for a failed DSQC3041 without reconfiguring the IRC5 controller?
In most cases, yes. The DSQC3041 is a field-replaceable unit within the IRC5 architecture. After physical installation, the IRC5 controller typically performs an automatic drive recognition sequence on the next boot cycle. In some configurations, a brief parameter restore from the robot’s system backup may be required to confirm axis calibration data. No full controller reconfiguration is generally needed for a like-for-like replacement.
