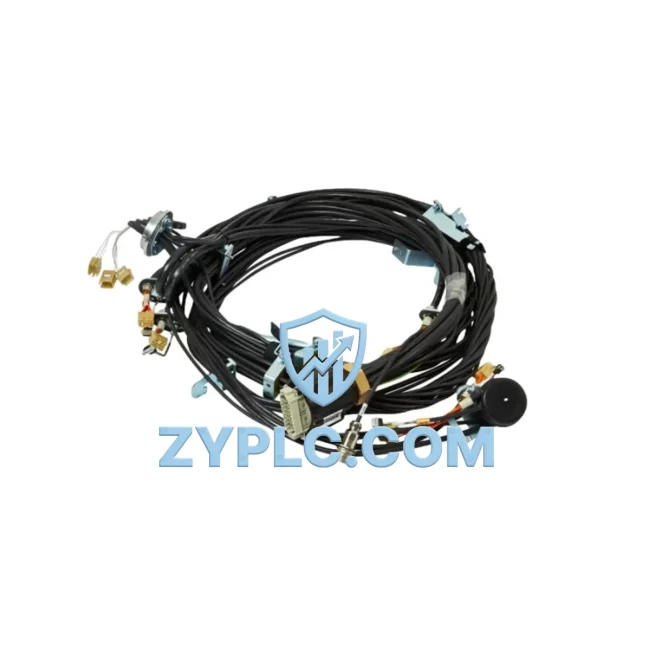

ABB 3HAC066543-001 Cable Unit Ax.4-6 for IRB 6620 Series

ABB 3HAC066543-001 Cable Unit Ax.4-6: Precision Signal Routing for IRB 6620 Series Robotic Systems

The ABB 3HAC066543-001 is a factory-original Cable Unit for Axes 4–6, engineered specifically for the ABB IRB 6620 and IRB 4400 series industrial robots. As the critical signal and power conduit between the robot’s upper arm and wrist axes, this cable assembly ensures uninterrupted communication between the IRC5 robot controller and the servo drive modules governing axes 4, 5, and 6. In smart factory environments where uptime is non-negotiable, the integrity of this cable unit directly determines the reliability of the entire robotic cell.

Whether integrated into a high-throughput automotive welding line, a precision material handling station, or a flexible assembly cell managed by a SCADA supervisory system, the 3HAC066543-001 maintains the low-latency signal path that keeps the robot’s motion control loop closed and responsive. Any degradation in this cable — whether from mechanical fatigue, connector wear, or EMI interference — immediately manifests as axis fault alarms in the IRC5 controller, triggering production stops that ripple across the entire connected automation network.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory cell, the ABB 3HAC066543-001 sits at the heart of the robot’s internal data chain. The IRC5 controller — the central processing unit of the ABB robot system — issues motion commands through its Drive Module to the servo motors at axes 4, 5, and 6. The 3HAC066543-001 cable unit is the physical medium through which these commands travel, carrying both power and encoder feedback signals that allow the IRC5 to maintain closed-loop position control with millisecond precision.

At the cell level, the IRC5 communicates upstream with the plant’s SCADA system via PROFINET or EtherNet/IP — protocols supported through ABB’s DSQC688 or DSQC1006 fieldbus adapter modules. Production data, cycle counts, and fault states are relayed in real time to the ABB RobotStudio monitoring interface or third-party HMI panels. When the 3HAC066543-001 develops a fault, the IRC5 generates a specific axis error code that propagates immediately to the SCADA dashboard, enabling maintenance teams to pinpoint the failed component without manual inspection.

The robot cell may also interface with ABB SafeMove2 safety modules, which rely on the same axis feedback signals routed through this cable assembly to enforce speed and position limits. In collaborative zones where the IRB 6620 operates alongside ABB YuMi or other collaborative units, signal integrity in the Ax.4-6 harness is essential for safe, coordinated motion. Upstream, a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller may orchestrate the broader production line, sending work orders to the IRC5 via OPC UA gateways or direct PROFINET connections, with the robot’s axis performance data feeding back into the MES layer for OEE calculation and predictive maintenance scheduling.

Peripheral devices such as Cognex vision systems, SICK safety scanners, and Keyence laser displacement sensors feed real-time environmental data into the cell controller, which adjusts robot trajectories dynamically. All of this coordinated intelligence depends on the mechanical and electrical reliability of components like the 3HAC066543-001 — the cable that keeps axes 4 through 6 responsive, accurate, and fault-free.

Solving Data Isolation in Industrial Robotic Cells

One of the most persistent challenges in industrial automation is the data gap created by aging or failed internal robot components. When the ABB 3HAC066543-001 cable unit degrades, the IRC5 controller loses encoder feedback from axes 4, 5, and 6 — effectively creating a data island within the robotic cell. The controller can no longer confirm axis positions, and the robot halts to prevent unsafe motion. This interruption breaks the data flow between the robot and the plant’s SCADA system, leaving operators with incomplete production visibility and forcing manual intervention.

Replacing the 3HAC066543-001 with a genuine ABB OEM part immediately restores the closed-loop signal path. Encoder data flows again from the wrist servo motors back to the IRC5 Drive Module, axis fault alarms clear, and the robot resumes its programmed cycle. SCADA dashboards return to full visibility, and the MES system receives uninterrupted cycle time data for OEE reporting. For facilities running multi-robot lines — where an IRB 6620 operates in sequence with ABB IRB 6700 or IRB 2600 units — restoring one robot’s signal integrity prevents cascading production delays across the entire line.

Proactive spare parts management is the most effective strategy for eliminating unplanned downtime. Stocking the 3HAC066543-001 alongside related consumables such as the 3HAC3157-1 and 3HAC5697-1 alternate cable assemblies ensures that maintenance teams can execute cable replacements within a planned maintenance window rather than scrambling during an unscheduled stop. ZYPLC maintains in-stock inventory of this part with same-day shipping capability, supporting both emergency replacement and scheduled preventive maintenance programs.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC066543-001 compatible with both the IRB 6620 and IRB 4400 series?
Yes. The 3HAC066543-001 is the current OEM cable unit for Axes 4–6 on the IRB 6620 series and is also cross-referenced to the IRB 4400 and IRB 4400/4-63 via alternate part numbers 3HAC3157-1 and 3HAC5697-1. Always verify your robot’s serial number and arm configuration before ordering.

Q2: Will a faulty Ax.4-6 cable cause communication errors in the IRC5 controller?
Yes. The IRC5 relies on continuous encoder feedback through this cable to maintain closed-loop servo control. A degraded or broken cable will trigger axis fault alarms (typically Err 50xxx series), halt robot motion, and interrupt data reporting to connected SCADA and HMI systems until the cable is replaced.

Q3: How does ZYPLC ensure the quality of this part before shipment?
Every 3HAC066543-001 unit shipped by ZYPLC undergoes pre-shipment inspection including connector integrity checks and continuity verification. All parts are covered by a 12-month warranty from the date of shipment. Documentation including test records is available upon request.

Q4: Can I use this cable as a direct replacement without reprogramming the IRC5?
Yes. As a like-for-like OEM replacement, the 3HAC066543-001 requires no controller reconfiguration. After installation, perform a standard axis calibration procedure using ABB RobotStudio or the FlexPendant to verify axis reference positions before resuming production.
