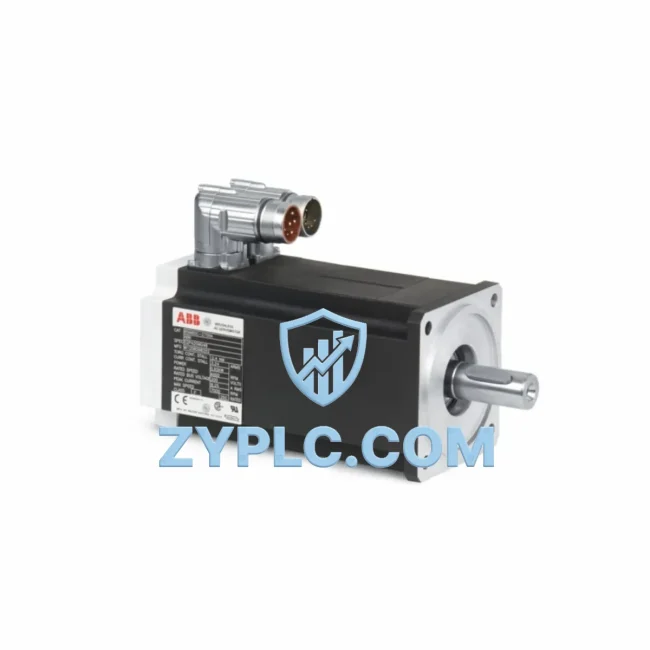

ABB 3HAC14209-1 Industrial AC Servo Motor for IRB Series Systems

ABB 3HAC14209-1 Industrial AC Servo Motor: Precision Data Link for Smart Factory Automation

The ABB 3HAC14209-1 (cross-reference: 3HAC12322-1) is a high-performance rotary AC servo motor engineered for the ABB IRB robot series, delivering precise motion control and seamless integration across industrial automation networks. Designed to operate within demanding smart factory environments, this servo motor serves as a critical node in the data chain connecting field-level actuators to upper-level control and monitoring systems. Whether deployed in automotive assembly lines, electronics manufacturing, or heavy-duty material handling, the 3HAC14209-1 ensures reliable torque output, low-latency feedback, and continuous data availability across the entire automation architecture.

In modern industrial sites, the servo motor is no longer a standalone mechanical component — it is an active participant in the plant-wide data flow. The ABB 3HAC14209-1 interfaces directly with the ABB IRC5 robot controller, which manages motion sequencing, axis synchronization, and real-time position feedback. The IRC5 controller communicates upstream via PROFIBUS-DP or DeviceNet fieldbus protocols, enabling the servo motor’s operational data — including speed, torque, temperature, and fault status — to be transmitted to SCADA systems and HMI panels without interruption. This unbroken data link is the foundation of transparent, responsive production management.

Network Communication Table

Connected Automation Data Flow

The ABB 3HAC14209-1 sits at the heart of a layered automation data flow. At the field level, the servo motor receives motion commands from the ABB IRC5 robot controller via the internal servo drive bus, executing precise axis movements while simultaneously feeding back encoder data for closed-loop position control. This real-time feedback loop is essential for maintaining repeatability tolerances in high-speed robotic applications.

Moving up the network stack, the IRC5 controller connects to plant-level systems through PROFIBUS-DP communication modules such as the ABB DSQC 352 or DSQC 510 fieldbus adapter boards. These modules bridge the servo drive network to the broader factory automation bus, where Siemens S7-300/S7-400 PLCs or Allen-Bradley ControlLogix controllers aggregate motion data from multiple robot cells. The PLC layer then forwards production metrics — cycle times, fault counts, axis load data — to Wonderware InTouch or Ignition SCADA platforms via OPC-UA or Modbus TCP gateways.

At the HMI level, operators interact with real-time servo status through panels such as the ABB CP600 HMI or third-party Siemens TP1200 Comfort touch panels, which display live torque curves, alarm histories, and axis diagnostics. Remote I/O modules — including ABB AC500 remote I/O or Beckhoff EtherCAT terminals — extend the network reach to peripheral sensors and actuators surrounding the robot cell, ensuring that every signal in the production zone is captured and routed to the central data infrastructure.

For edge computing and predictive maintenance, the servo motor’s operational data can be forwarded through industrial edge gateways such as the ABB Ability Edge or Moxa UC-8100 series, enabling cloud-based analytics and AI-driven fault prediction. Variable frequency drives (VFDs) on adjacent conveyor systems — such as the ABB ACS880 drive — share the same PROFIBUS segment, allowing coordinated motion sequencing between the robot and the surrounding material handling equipment. This end-to-end connectivity transforms the 3HAC14209-1 from a mechanical actuator into a data-generating asset within the smart factory ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A factory floor may simultaneously operate legacy PROFIBUS-DP devices alongside newer EtherNet/IP or PROFINET networks, creating data silos that prevent unified monitoring and control. The ABB 3HAC14209-1, when integrated with the IRC5 controller and appropriate fieldbus adapters, bridges these protocol gaps by acting as a standardized motion data source that can be accessed by any upper-level system capable of reading PROFIBUS or OPC-UA data streams.

Remote monitoring is another critical capability enabled by this servo motor’s network integration. Plant managers and maintenance engineers can access real-time axis health data — including winding temperature, encoder integrity, and load current — from remote SCADA dashboards without physically entering the production area. This capability is particularly valuable for multi-site operations where a central engineering team must oversee robot performance across geographically distributed facilities.

Production line transparency is achieved through the continuous data stream generated by the 3HAC14209-1 during operation. Every motion cycle produces timestamped position and torque data that can be logged by the MES (Manufacturing Execution System) for OEE (Overall Equipment Effectiveness) analysis. When deviations from baseline performance are detected — such as increased current draw indicating mechanical wear — the system can automatically generate maintenance work orders, minimizing unplanned downtime.

System scalability is built into the ABB IRB architecture. As production demands grow, additional robot cells equipped with 3HAC14209-1 servo motors can be added to the PROFIBUS network without redesigning the communication infrastructure. Each new robot cell registers as an additional node on the fieldbus, and its data is automatically incorporated into the SCADA and MES data flows, enabling seamless capacity expansion with minimal engineering overhead.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3HAC14209-1 support for SCADA and HMI integration?
The 3HAC14209-1 operates within the ABB IRC5 robot controller ecosystem, which natively supports PROFIBUS-DP and DeviceNet fieldbus protocols via optional adapter modules (e.g., DSQC 352, DSQC 510). For integration with EtherNet/IP or PROFINET-based SCADA systems, a protocol gateway such as the HMS Anybus X-gateway can be used to translate fieldbus data into Ethernet-compatible formats, ensuring compatibility with Wonderware, Ignition, or Siemens WinCC platforms.

Q2: How does the 3HAC14209-1 ensure network stability in high-cycle robotic applications?
The servo motor’s resolver or encoder feedback system provides deterministic, low-jitter position data to the IRC5 controller at cycle times typically below 4ms. The PROFIBUS-DP network operates at up to 12 Mbps, ensuring that servo status data reaches the PLC and SCADA layers within the scan cycle without causing communication bottlenecks. Shielded cabling and proper network termination are recommended to maintain signal integrity in electrically noisy environments.

Q3: Can the ABB 3HAC14209-1 be integrated into an existing multi-vendor automation network?
Yes. The IRC5 controller’s open fieldbus architecture allows the 3HAC14209-1 to coexist on networks that include Siemens, Rockwell, Schneider, or Mitsubishi PLCs. Using OPC-UA servers or Modbus TCP gateways, servo data can be published to any SCADA or MES platform regardless of vendor. This makes the 3HAC14209-1 a flexible choice for brownfield upgrades where legacy and modern systems must operate in parallel.

Q4: What quality assurance and warranty coverage is provided with the ABB 3HAC14209-1?
Every ABB 3HAC14209-1 unit supplied by ZYPLC undergoes pre-shipment functional testing, including encoder signal verification, winding resistance measurement, and insulation resistance checks. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-day dispatch via DHL Express or FedEx International Priority, with full traceability documentation provided upon request.
