ABB 3HAC14279-1 Industrial Robot Controller for IRC5 Systems

ABB 3HAC14279-1 Industrial Network Interface for IRC5 Systems: Backbone of Smart Factory Data Links

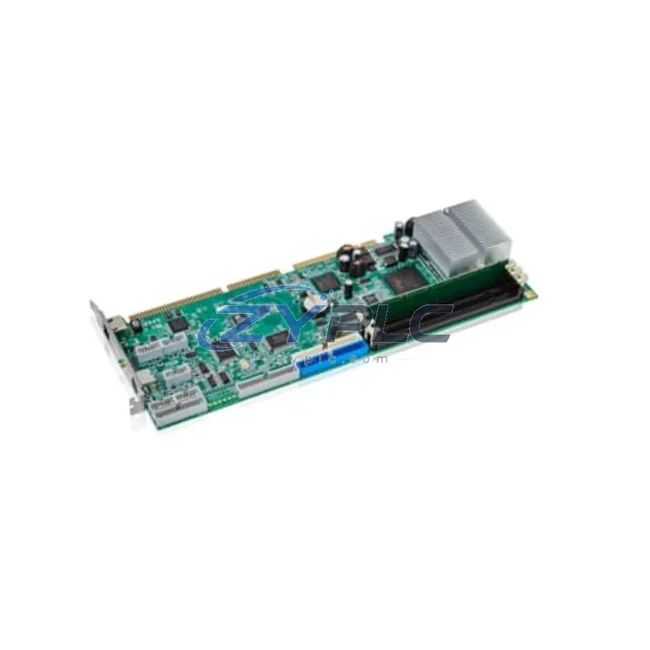

The ABB 3HAC14279-1 IRC5 Main Computer Board is the central processing and communication hub of the ABB IRC5 robot controller series. Engineered for high-reliability industrial environments, this board governs the real-time data exchange between the robot’s motion control system and the broader factory automation network — spanning field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, and edge computing gateways. In an era where smart manufacturing demands seamless connectivity across every layer of the production floor, the 3HAC14279-1 delivers the computational backbone that makes it possible.

As industrial sites evolve toward Industry 4.0 architectures, the demand for robust, low-latency communication between robotic systems and supervisory networks has never been greater. The ABB 3HAC14279-1 addresses this need directly, supporting the IRC5 controller’s ability to participate in multi-device automation cells where data must flow continuously, accurately, and without interruption from signal acquisition through to enterprise-level reporting systems.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 3HAC14279-1 sits at the heart of a multi-layered communication architecture. At the field level, signals originate from sensors, proximity switches, and vision systems connected to the robot’s I/O interface. These signals are processed by the main computer board and translated into motion commands executed by the IRC5’s drive units — the same drive modules that govern servo motor torque, speed, and positioning across all six robot axes.

Moving up the network stack, the 3HAC14279-1 communicates with the ABB DSQC679 FlexPendant operator panel, providing real-time status feedback, alarm notifications, and program execution data directly to the HMI layer. Simultaneously, the board interfaces with the ABB DSQC688 Ethernet/IP Communication Module, enabling the IRC5 controller to participate in EtherNet/IP networks alongside Allen-Bradley PLCs, Siemens S7-series controllers, and Omron NJ/NX-series automation platforms.

For sites running PROFIBUS-DP fieldbus architectures, the 3HAC14279-1 supports integration with the ABB DSQC667 PROFIBUS Adapter, allowing the IRC5 to exchange cyclic process data with remote I/O stations, distributed control panels, and third-party field devices at scan rates suitable for real-time production monitoring. This makes the board a natural fit for automotive assembly lines, electronics manufacturing cells, and food and beverage packaging systems where millisecond-level synchronization between robot motion and conveyor control is critical.

At the supervisory level, data collected by the 3HAC14279-1 flows upward through OPC-UA gateways — such as the Moxa MGate MB3660 Industrial Protocol Gateway — into SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC. This integration enables production managers to monitor robot cycle times, track fault histories, and generate OEE (Overall Equipment Effectiveness) reports without manual data entry or physical inspection of the controller cabinet.

The board also plays a key role in edge computing scenarios. When paired with an ABB Edge Computing Module or a third-party industrial edge gateway such as the Advantech WISE-5000 series, the 3HAC14279-1 enables local data preprocessing — filtering, aggregation, and anomaly detection — before transmitting summarized datasets to cloud-based MES or ERP systems. This reduces network bandwidth consumption while ensuring that critical alarm events are escalated in real time.

In multi-robot cells, the 3HAC14279-1 coordinates with ABB IRC5 MultiMove controllers, synchronizing motion data across multiple robot arms operating on shared workpieces. The board’s communication architecture supports the tight timing requirements of coordinated motion, ensuring that data latency between controllers does not introduce positional errors or collision risks.

Variable frequency drives — including the ABB ACS880 industrial drive series — connect to the IRC5 network via fieldbus adapters, with the 3HAC14279-1 managing the data exchange that allows the robot controller to modulate conveyor speeds, spindle feeds, and pump outputs in response to production state changes. This closed-loop integration between robot control and drive systems is a hallmark of fully automated smart factory cells.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A factory floor may simultaneously operate legacy PROFIBUS-DP devices, mid-generation DeviceNet nodes, and modern EtherNet/IP infrastructure — each speaking a different protocol, each generating data that cannot be natively shared across the network boundary.

The ABB 3HAC14279-1 addresses this challenge by serving as a protocol-aware processing node within the IRC5 controller. Through its support for multiple fieldbus option modules, the board enables the IRC5 to act as a protocol bridge — receiving data from legacy field devices over serial or PROFIBUS interfaces and re-transmitting it in formats compatible with modern Ethernet-based supervisory systems. This eliminates the data silos that arise when older equipment cannot communicate with newer SCADA or MES platforms.

Remote monitoring is another area where the 3HAC14279-1 delivers measurable value. By maintaining a persistent network connection to the plant’s supervisory infrastructure, the board enables remote diagnostics — allowing maintenance engineers to access controller logs, review fault codes, and initiate diagnostic routines from a central control room or even from off-site locations via secure VPN connections. This capability dramatically reduces mean time to repair (MTTR) by enabling pre-emptive fault identification before a production stoppage occurs.

Production line transparency is further enhanced by the board’s ability to stream real-time cycle data to SCADA dashboards. Operators can monitor robot utilization rates, track the number of completed cycles per shift, and receive instant alerts when cycle times deviate from established baselines — all without interrupting production. This level of visibility supports continuous improvement initiatives and provides the data foundation for predictive maintenance programs.

System scalability is a core design principle of the IRC5 architecture, and the 3HAC14279-1 reflects this philosophy. The board’s modular communication interface supports the addition of new fieldbus adapters, I/O expansion modules, and network interface cards without requiring hardware replacement of the main computer itself. This means that as a factory’s automation requirements evolve — adding new robot cells, integrating new sensor types, or adopting new communication standards — the existing 3HAC14279-1 installation can be extended rather than replaced, protecting the capital investment in the IRC5 platform.

Every ABB 3HAC14279-1 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication interface integrity, processor operation, and I/O response before dispatch. All units are covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation available for shipment arranged after confirmation via DHL or FedEx Express to destinations worldwide.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3HAC14279-1 support in an IRC5 controller?
The 3HAC14279-1 supports a range of industrial communication protocols through the IRC5’s modular fieldbus architecture, including DeviceNet, PROFIBUS-DP, EtherNet/IP, Modbus TCP, and CANopen. OPC-UA connectivity is achievable via external protocol gateways, enabling integration with modern SCADA and MES platforms.

Q2: Can the ABB 3HAC14279-1 be integrated with third-party SCADA and HMI systems?
Yes. The 3HAC14279-1 supports integration with a wide range of SCADA and HMI platforms, including Siemens WinCC, Wonderware InTouch, Ignition by Inductive Automation, and FactoryTalk View. Integration is typically achieved via OPC-UA gateways or direct EtherNet/IP connections, depending on the supervisory system’s communication capabilities.

Q3: How does ZYPLC ensure network stability and reliability of the 3HAC14279-1 before shipment?
Each unit undergoes pre-shipment functional testing that verifies communication interface operation, processor integrity, and I/O response. Units are inspected against ABB’s original specifications and are supplied with a warranty terms confirmed during quotation covering hardware defects and communication failures identified under normal operating conditions.

Q4: Is the ABB 3HAC14279-1 compatible with IRC5 Compact and Panel Mounted Controller variants?
Yes. The 3HAC14279-1 is compatible with the full IRC5 controller family, including the IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. Compatibility should be verified against the specific IRC5 hardware revision and software version in use at the installation site. Contact ZYPLC’s technical team for pre-purchase compatibility confirmation.
