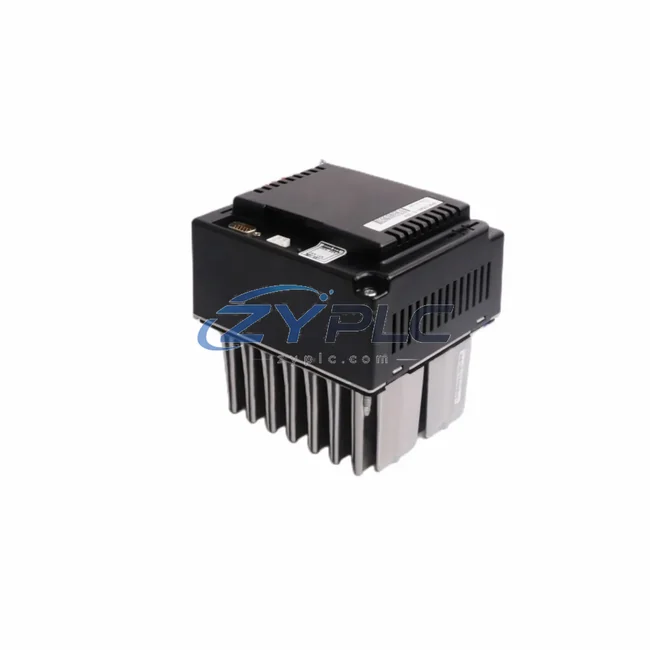

ABB 3HAC14549-3/07A Rectifier for IRC5

ABB 3HAC14549-3/07A Rectifier for IRC5: Compatibility and Replacement Notes

The ABB 3HAC14549-3/07A is a factory-verified rectifier module engineered specifically for the IRC5 drive system architecture. Within a fully integrated robot control cabinet, this module occupies a critical position in the power conversion layer — transforming incoming AC supply into the stable DC bus voltage that feeds the drive units, axis computers, and motion control boards downstream. Its role is not isolated; it is the electrical foundation upon which the entire IRC5 control hierarchy depends. Understanding this module in the context of the full system architecture — from the control layer through the I/O layer, network layer, power layer, HMI layer, and actuator layer — is essential for engineers responsible for system commissioning, long-term maintenance, and architecture expansion.

In the IRC5 cabinet, the 3HAC14549-3/07A rectifier module works in close coordination with the drive unit (such as the 3HAC025338-004 or 3HAC17326-1 series), the main computer unit (DSQC639 / 3HAC025097-001), and the axis computer board. The rectifier converts three-phase AC input into a regulated DC link, which is then distributed to each drive channel. Any instability at the rectifier level — whether caused by component aging, thermal stress, or supply voltage fluctuation — propagates directly into axis positioning errors, servo faults, and emergency stop events. Replacing or maintaining the 3HAC14549-3/07A with a verified, system-compatible unit is therefore a prerequisite for maintaining motion accuracy and system uptime.

Product Specification Table

System Compatibility Notes

The 3HAC14549-3/07A does not operate in isolation. Its performance is directly linked to the health and compatibility of every adjacent module in the IRC5 cabinet. At the control layer, the IRC5 main computer (DSQC639, 3HAC025097-001) issues motion commands through the axis computer board, which translates trajectory data into current references for each servo drive channel. The rectifier module supplies the DC bus that powers these drive channels, making it the upstream dependency for all motion execution.

At the I/O layer, the IRC5 system typically integrates digital and analog I/O boards such as the DSQC652 (24 VDC digital I/O) and DSQC355A (analog I/O), which handle sensor feedback, gripper control, and process interlocks. These boards draw their logic power from the cabinet’s 24 VDC power supply unit (PSU), which itself depends on a stable DC bus maintained by the rectifier. A degraded rectifier can therefore cause intermittent I/O faults that are difficult to trace without understanding the power architecture.

At the network layer, the IRC5 controller communicates with upstream SCADA systems, PLCs, and MES platforms via fieldbus options including PROFIBUS-DP, DeviceNet, and EtherNet/IP. The fieldbus interface boards (such as DSQC688 for PROFIBUS or DSQC679 for EtherNet/IP) are housed within the controller and depend on stable cabinet power. Network communication interruptions caused by power instability are often misdiagnosed as software or configuration issues when the root cause lies in the rectifier or DC bus.

At the HMI layer, the FlexPendant (3HAC028357-001) communicates with the IRC5 main computer over a dedicated internal bus. Operators rely on the FlexPendant for program execution, jogging, and fault acknowledgment. Power instability at the rectifier level can cause FlexPendant disconnection events or controller reboot cycles, disrupting production and requiring manual restart procedures.

At the actuator layer, the servo drive units — including the 3HAC025338-004 drive unit and associated capacitor bank modules — convert the DC bus voltage into the variable-frequency AC signals that drive the robot’s servo motors. The rectifier module’s output quality directly determines the smoothness of axis motion, the accuracy of torque control, and the thermal load on the drive units. Maintaining the 3HAC14549-3/07A in verified condition is therefore a system-level maintenance decision, not merely a component replacement.

Industrial Application Notes

The ABB IRC5 platform, and by extension the 3HAC14549-3/07A rectifier module, is deployed across a wide range of industrial automation environments. In automotive manufacturing, IRC5-controlled robots perform spot welding, arc welding, material handling, and assembly operations on high-speed production lines where uptime is measured in seconds per vehicle. A rectifier failure in this context can halt an entire line, making verified spare parts with warranty terms confirmed during quotation coverage a standard procurement requirement for maintenance engineers.

In electronics manufacturing, IRC5 robots handle precision pick-and-place, soldering, and inspection tasks where positional repeatability is critical. The rectifier module’s role in maintaining a stable DC bus directly affects the servo system’s ability to hold micron-level positioning accuracy over extended production runs.

In the power generation and utilities sector, IRC5 robots are used for inspection, maintenance, and assembly of turbine components and switchgear. These environments demand high system reliability and often require redundant spare part inventories. The 3HAC14549-3/07A, sourced from a verified supplier with system integration support, fits directly into planned maintenance schedules without requiring additional engineering validation.

In petrochemical and process industries, robots operating in hazardous or semi-hazardous zones rely on the IRC5 paint cabinet or explosion-proof configurations. The rectifier module in these variants must meet the same electrical specifications as the standard IRC5 unit, and cross-compatibility is confirmed through the 07A revision designation.

In metal fabrication, foundry, and heavy industry applications, IRC5 robots handle cutting, grinding, and material transfer in high-vibration, high-temperature environments. The rectifier module’s thermal design and component-level robustness are key factors in long-term reliability. Sourcing a tested, revision-matched unit (07A) ensures compatibility with the existing drive system without requiring firmware or parameter reconfiguration.

Product Compatibility FAQ

Q1: Is the 3HAC14549-3/07A compatible with all IRC5 cabinet variants, including the dual cabinet and paint cabinet configurations?
The 3HAC14549-3/07A is designed for the IRC5 drive system and is compatible with the standard single cabinet, dual cabinet (M2004 and later), and paint cabinet configurations where the R3 rectifier position is specified. The /07A revision designation indicates a specific hardware revision; engineers should verify the revision against the cabinet’s spare parts list or the original equipment documentation before installation. ZYPLC provides system integration support to assist with revision verification and system compatibility confirmation prior to shipment.

Q2: What commissioning steps are required after replacing the rectifier module in an IRC5 system?
After physical installation of the 3HAC14549-3/07A, the IRC5 system should be powered up in a controlled sequence: verify AC input voltage at the cabinet terminals, confirm DC bus voltage at the drive unit test points, and check for any active fault codes on the FlexPendant. No firmware flashing or parameter reconfiguration is typically required for a like-for-like rectifier replacement, as the module does not store system parameters. However, engineers should perform a full axis calibration check and a motion test cycle before returning the robot to production. ZYPLC’s technical team can provide commissioning guidance as part of the warranty terms confirmed during quotation support package.

Q3: How does ZYPLC’s warranty terms confirmed during quotation apply to the 3HAC14549-3/07A, and what does system integration support include?
ZYPLC’s warranty terms confirmed during quotation covers the 3HAC14549-3/07A against manufacturing defects and functional failure under normal operating conditions from the date of shipment. system integration support means that ZYPLC’s engineering team assists customers in confirming system compatibility, identifying the correct revision for their specific IRC5 cabinet configuration, and providing technical documentation to support installation and commissioning. In the event of a warranty claim, ZYPLC provides a replacement unit or repair service with priority processing to minimize production downtime. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for pre-purchase compatibility verification and post-sale technical support.
