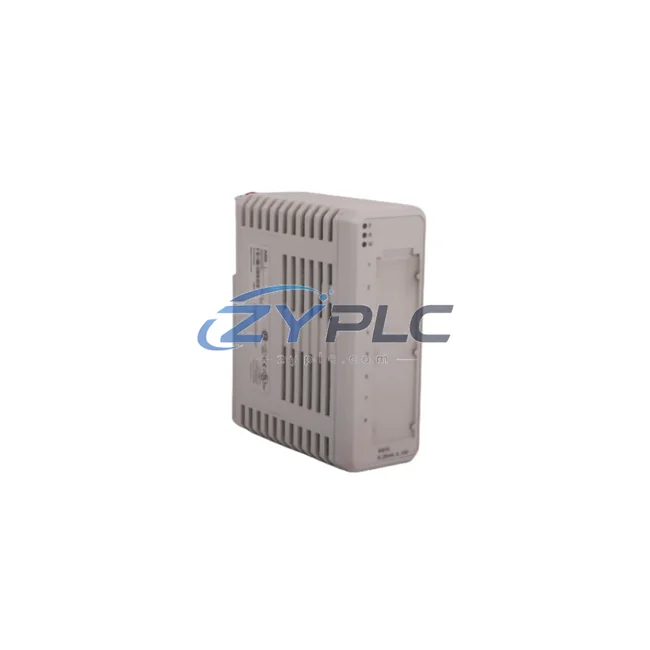

ABB 3HAC17345-1/01 DeviceNet Interface Module for IRC5 Systems

ABB 3HAC17345-1/01 DeviceNet Interface Module: Industrial Data Link for IRC5 Robot Systems

The ABB 3HAC17345-1/01 is a dedicated DeviceNet interface module engineered for seamless integration within ABB IRC5 robot controller architectures. As industrial automation networks grow increasingly complex — spanning field-level sensors, PLC controllers, remote I/O nodes, HMI panels, SCADA platforms, and cloud-connected edge gateways — the demand for reliable, deterministic communication at every layer of the data chain has never been greater. The 3HAC17345-1/01 addresses this demand by providing a robust, standards-compliant DeviceNet communication bridge that connects the IRC5 controller to the broader automation ecosystem with minimal latency and maximum signal integrity.

In smart factory environments, data isolation remains one of the most persistent obstacles to operational transparency. When robot controllers cannot communicate natively with upstream SCADA systems or downstream field devices, production data becomes fragmented, alarm response times increase, and remote diagnostics become unreliable. The ABB 3HAC17345-1/01 eliminates this bottleneck by acting as a certified DeviceNet slave or master node, enabling real-time bidirectional data exchange between the IRC5 robot controller and any CIP-compliant network device on the plant floor.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding how the ABB 3HAC17345-1/01 fits into a live production environment requires tracing the full data path from signal origin to system response. At the field level, sensors and actuators — including proximity switches, vision systems, and servo feedback encoders — generate continuous process signals that must be aggregated and transmitted upstream without delay. These signals are collected by remote I/O modules such as the ABB DSQC 652 digital I/O board, which interfaces directly with the IRC5 controller’s internal bus. The 3HAC17345-1/01 then bridges this internal data to the DeviceNet network, making it accessible to any connected node on the plant floor.

On the controller side, the IRC5 cabinet — often paired with the ABB DSQC 639 main computer unit or the ABB DSQC 643 power distribution board — relies on the 3HAC17345-1/01 to maintain synchronized communication with external PLCs. In mixed-vendor environments, this is particularly critical: a Rockwell Automation ControlLogix L7x PLC managing conveyor sequencing may need to coordinate pick-and-place timing with the IRC5 robot, and the DeviceNet interface module provides the deterministic I/O exchange required for this synchronization. Cycle times, gripper states, and fault flags are transmitted in real time, ensuring that the PLC ladder logic and the robot’s RAPID program remain in lockstep.

Moving up the network hierarchy, the DeviceNet segment connects to SCADA and HMI layers through protocol gateways. An HMS Anybus X-gateway or a Moxa MGate MB3000 series gateway can translate DeviceNet CIP messages into Modbus TCP or PROFINET frames, enabling the plant’s central SCADA server — running platforms such as Wonderware InTouch or Ignition by Inductive Automation — to receive live robot status data, cycle counts, and alarm codes. Operators at HMI terminals can monitor the IRC5 robot cell in real time, acknowledge faults remotely, and trigger recipe changes without interrupting production. The ABB CP600 HMI panel, when deployed alongside the IRC5 system, can be configured to display DeviceNet node diagnostics directly, giving floor technicians immediate visibility into network health.

For drive-level integration, variable frequency drives such as the ABB ACS880 series — commonly used for coordinated motion on conveyor belts and rotary indexers adjacent to robot cells — can participate in the same DeviceNet segment as the 3HAC17345-1/01. Speed references, torque feedback, and fault status from the ACS880 are exchanged over the network, allowing the IRC5 controller to adapt its motion profile based on upstream conveyor speed in real time. This closed-loop coordination between robot and drive eliminates the need for hardwired analog speed references, reducing wiring complexity and improving system responsiveness.

At the edge, industrial Ethernet switches such as the Hirschmann SPIDER series or Moxa EDS-400A managed switches provide the backbone connectivity that links DeviceNet segments to the plant’s Ethernet/IP backbone. Edge computing nodes — including Advantech UNO-2484G edge gateways — can aggregate data from multiple DeviceNet segments, apply local analytics, and forward structured data packets to MES or ERP systems via OPC-UA. This architecture ensures that the 3HAC17345-1/01 is not an isolated component but a critical node in a fully connected, data-transparent smart factory.

Solving Data Isolation in Industrial Sites

One of the most common challenges in brownfield automation upgrades is protocol fragmentation. Legacy robot cells running proprietary communication schemes cannot easily share data with newer PLC platforms or cloud-connected SCADA systems. The ABB 3HAC17345-1/01 resolves this by providing a standardized DeviceNet interface that is recognized by virtually every major industrial automation platform. Whether the plant runs Rockwell Automation’s Studio 5000 environment, Siemens TIA Portal with a DeviceNet scanner card, or an Omron Sysmac controller with a CIP network unit, the 3HAC17345-1/01 integrates without requiring custom protocol adapters or middleware.

Data silos — where robot controllers operate in isolation from the broader MES and ERP data ecosystem — are eliminated through the module’s support for explicit messaging. Production counts, fault histories, and maintenance alerts generated by the IRC5 controller can be polled by SCADA systems on a configurable cycle, ensuring that production dashboards reflect real-time machine status rather than manually entered shift reports. This transparency is foundational to OEE (Overall Equipment Effectiveness) tracking and predictive maintenance programs.

Remote diagnostics are significantly enhanced by the 3HAC17345-1/01’s network-accessible node status. Maintenance engineers can query the DeviceNet node table from a remote workstation, identify communication faults, check I/O mapping integrity, and verify baud rate consistency — all without physical access to the robot cell. This capability reduces mean time to repair (MTTR) and supports the shift toward condition-based maintenance strategies in Industry 4.0 environments.

System scalability is another key advantage. As production lines expand — adding new robot cells, additional remote I/O drops, or supplementary sensor networks — the DeviceNet segment can be extended by adding nodes up to the network’s maximum capacity. The 3HAC17345-1/01 supports this growth without requiring controller firmware changes or network reconfiguration, protecting the initial integration investment as the factory evolves.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying DeviceNet node initialization, I/O data exchange, and communication stability under load. Units are shipped with a warranty terms confirmed during quotation, and our technical team provides post-sale support for network configuration, node addressing, and SCADA integration queries.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the ABB 3HAC17345-1/01 on a DeviceNet network?
At 500 kbps baud rate, the 3HAC17345-1/01 achieves I/O polling cycle times in the range of 2–10 ms depending on network load and node count. For time-critical robot-PLC synchronization tasks, operating at 500 kbps with a reduced node count is recommended to minimize jitter and ensure deterministic data delivery.

Q2: Is the 3HAC17345-1/01 compatible with non-ABB PLC platforms such as Rockwell ControlLogix or Omron NJ series?
Yes. The module communicates using the standard CIP (Common Industrial Protocol) over DeviceNet, which is supported by all major DeviceNet-compatible PLC platforms including Rockwell Automation ControlLogix, Omron NJ/NX series with CJ1W-DRM21 scanner units, and Siemens controllers equipped with third-party DeviceNet master cards. EDS (Electronic Data Sheet) files are available for seamless integration into RSNetWorx for DeviceNet and equivalent configuration tools.

Q3: How does the module handle network instability or cable faults during production?
The 3HAC17345-1/01 implements DeviceNet’s built-in bus-off recovery and node health monitoring. In the event of a cable fault or node dropout, the IRC5 controller generates a system fault event that can be mapped to a SCADA alarm or HMI notification. The module supports configurable I/O idle state behavior, allowing the system to hold last-known output states or default to a safe state during communication interruptions, minimizing unplanned downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
All ABB 3HAC17345-1/01 units supplied by ZYPLC are tested for DeviceNet node initialization, I/O data integrity, and communication stability prior to dispatch. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. Our technical support team is available to assist with installation, network configuration, and integration troubleshooting throughout the warranty period. Expedited replacement is available for critical production applications.
