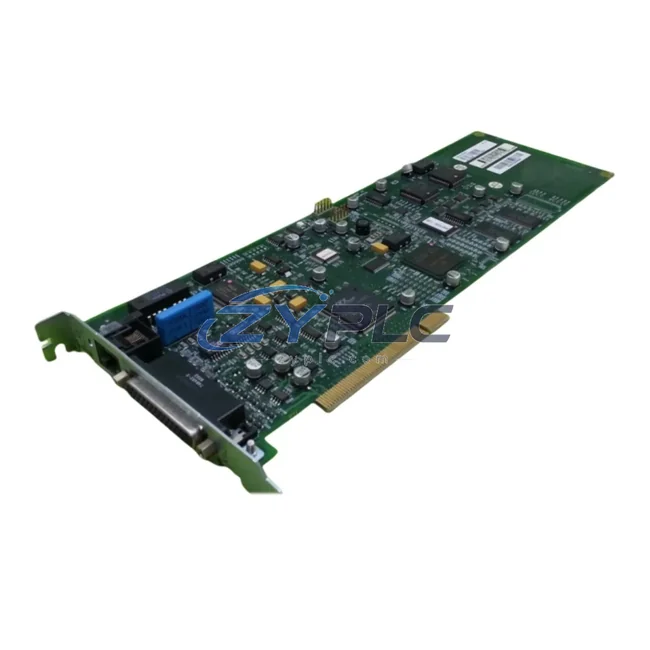

ABB 3HAC18158-1 Control Module for IRC5

ABB 3HAC18158-1 Control Module for IRC5

The ABB 3HAC18158-1 is a purpose-engineered robot control module designed to operate as a core processing and signal management component within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone unit, this module is conceived as an integral node within a multi-layer automation system — coordinating upstream commands from the controller CPU, managing real-time I/O signal routing, and maintaining synchronization across the motion control, safety, and communication layers of a complete robotic cell. In high-throughput manufacturing environments, the 3HAC18158-1 contributes directly to system consistency, deterministic cycle execution, and long-term maintainability of the robot installation.

The IRC5 controller platform, within which the 3HAC18158-1 operates, is structured around a modular cabinet architecture that separates the drive system, control electronics, and I/O infrastructure into discrete, serviceable layers. This design philosophy allows engineers to replace or upgrade individual modules — such as the 3HAC18158-1 — without disrupting the broader system configuration. For facilities managing fleets of ABB robots across multiple production lines, this modularity translates directly into reduced mean time to repair (MTTR) and lower lifecycle maintenance costs.

Product Specification Table

System Compatibility Notes

The 3HAC18158-1 does not operate in isolation. Its value is realized through tight integration with the surrounding IRC5 system architecture. At the controller level, the DSQC639 main computer unit serves as the primary CPU, executing RobotWare programs and issuing motion commands that flow through the control module layer. The DSQC662 I/O unit handles digital and analog signal exchange with field devices, while the DSQC643 drive unit manages axis servo amplification for each robot joint. Together, these modules form the core processing and actuation stack of the IRC5 cabinet.

Power distribution within the IRC5 cabinet is managed by the DSQC609 power supply unit, which provides regulated 24 VDC to the control electronics layer, including the 3HAC18158-1. Stable power delivery is critical for maintaining signal integrity across the backplane bus, particularly in high-cycle applications where transient loads from servo drives could otherwise introduce noise into the control layer.

For systems requiring network connectivity, the DSQC688 EtherNet/IP adapter or DSQC667 PROFIBUS adapter can be installed alongside the control module to enable real-time communication with PLCs, SCADA systems, or MES platforms. This is particularly relevant in automotive body-in-white lines or electronics assembly cells where the robot controller must exchange handshake signals with upstream conveyor PLCs or downstream vision inspection systems.

In dual-robot or coordinated motion applications, the DSQC656 axis computer extends the motion control capacity of the IRC5 platform, allowing the 3HAC18158-1 to participate in multi-axis synchronization routines. Safety architecture is reinforced through the DSQC647A safety board, which monitors emergency stop circuits, safeguarding zones, and speed supervision — all of which interface with the control module layer to enforce safe state transitions.

For panel-level human-machine interaction, the IRC5 FlexPendant (3HAC028357-001) connects directly to the controller and provides operators with real-time system status, program editing capability, and manual jogging functions. The FlexPendant communicates over the IRC5 internal Ethernet backbone, ensuring that operator commands are processed with the same deterministic timing as automated program execution.

Industrial Application Notes

The ABB 3HAC18158-1 control module finds application across a broad range of industrial sectors where robotic automation is deployed within structured, multi-layer control architectures.

In automotive manufacturing, IRC5-based robot cells are integrated into body-in-white welding lines, paint shop handling systems, and final assembly stations. The control module supports high-speed, high-precision motion profiles required for resistance spot welding and sealing applications, where cycle times are measured in fractions of a second and positional repeatability must be maintained across millions of cycles.

In electronics and semiconductor assembly, the IRC5 platform with the 3HAC18158-1 is deployed in PCB handling, component placement verification, and cleanroom material transfer applications. The module’s stable signal processing ensures that fine-motion trajectories are executed without deviation, even in thermally variable cleanroom environments.

In food and beverage packaging, the 3HAC18158-1 supports high-throughput pick-and-place and palletizing cells where robots must coordinate with conveyor encoders, vision systems, and downstream packaging machinery. The module’s compatibility with EtherNet/IP and PROFIBUS communication options allows seamless integration with Siemens S7 or Allen-Bradley ControlLogix PLCs managing the broader line control architecture.

In petrochemical and process industries, IRC5 robots equipped with this control module are used for valve manipulation, pipe welding, and hazardous material handling in Zone 2 classified areas. The modular serviceability of the IRC5 cabinet means that the 3HAC18158-1 can be replaced during scheduled maintenance windows without requiring full system reconfiguration.

In metal fabrication and welding, the module supports arc welding power source integration via the IRC5 weld interface, coordinating torch motion, wire feed, and shielding gas control within a unified robot program. Long-term weld quality consistency depends on the control module maintaining stable communication between the robot CPU and the weld process interface throughout multi-shift production schedules.

Product Compatibility FAQ

Q1: Is the ABB 3HAC18158-1 compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
The 3HAC18158-1 is designed for the standard IRC5 single-cabinet and dual-cabinet controller platforms. Compatibility with the IRC5 Compact or Panel Mounted Controller variants depends on the specific hardware revision and RobotWare version installed. It is recommended to verify the controller’s hardware generation and software version against ABB’s module compatibility matrix before installation. Our technical team can assist with pre-installation compatibility verification as part of the warranty terms confirmed during quotation support process.

Q2: What is the recommended procedure for replacing the 3HAC18158-1 in a live production environment to minimize downtime?
Replacement should be performed during a scheduled maintenance window with the IRC5 controller powered down and locked out per site LOTO procedures. Prior to removal, a full system backup should be created via the FlexPendant or RobotStudio to preserve program data, calibration parameters, and I/O configuration. After installing the replacement 3HAC18158-1, the system backup is restored and a functional verification test — including axis calibration check and I/O signal mapping confirmation — should be completed before returning the cell to production. The warranty terms confirmed during quotation covers the replacement module against manufacturing defects identified during this commissioning process.

Q3: How does the 3HAC18158-1 support long-term maintenance planning in multi-robot facilities?
In facilities operating multiple IRC5-based robot cells, maintaining a standardized spare parts inventory that includes the 3HAC18158-1 is a recognized best practice for minimizing unplanned downtime. Because the module is a common component across IRC5 installations of different robot models and generations, a single spare can serve as a cross-cell replacement asset. Our supply chain supports bulk procurement with consistent lead times, and all units shipped under the warranty terms confirmed during quotation program are tested for functional conformance prior to dispatch, ensuring that spare inventory is deployment-ready when needed.
