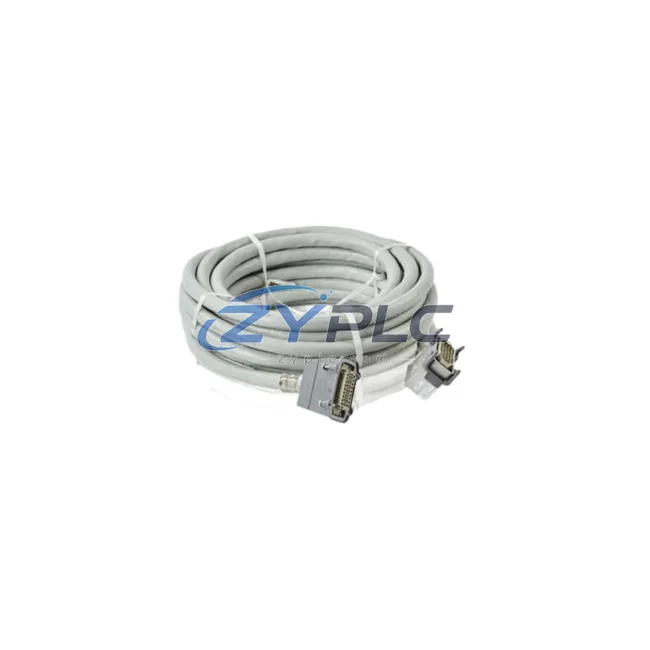

ABB 3HAC9038-1 IRC5 Power Control Cable | 3HAC Series

ABB 3HAC9038-1 IRC5 Power Control Cable: Industrial Data Link & Smart Factory Connectivity

The ABB 3HAC9038-1 (also referenced as 3HAC9038-2) is a precision-engineered Power Control Cable designed specifically for the ABB IRC5 robot controller platform — one of the most widely deployed motion control architectures in modern smart manufacturing environments. With a standard length of 15 metres, this cable forms a critical segment of the industrial data and power link between the IRC5 controller cabinet and the robot manipulator, enabling reliable signal transmission, coordinated motion execution, and real-time feedback across the entire automation cell.

In today’s connected factory, every cable in the control loop is part of a larger communication chain. The 3HAC9038-1 is no exception. It carries both power and control signals that synchronise the IRC5 drive system with the robot’s servo motors, encoders, and safety circuits — ensuring that upstream commands from SCADA platforms, HMI panels, and PLC controllers are faithfully translated into precise mechanical motion at the end effector. Any degradation in this link directly impacts cycle time, positional accuracy, and system uptime.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding where the ABB 3HAC9038-1 sits within the broader automation architecture helps engineers plan cable routing, redundancy, and maintenance schedules more effectively. In a typical IRC5-based robot cell, the data and power flow begins at the plant-level SCADA or MES system, which issues production commands through an ABB AC500 PLC or a third-party controller via EtherNet/IP or PROFINET. These commands are received by the IRC5 controller cabinet, which houses the ABB DSQC639 main computer board and the DSQC663 drive unit — both of which depend on the integrity of the internal cabling harness to function correctly.

The 3HAC9038-1 cable connects the IRC5 drive section to the robot manipulator’s motor junction box, carrying three-phase servo power alongside encoder feedback signals from each axis. This bidirectional signal path allows the IRC5’s motion planner to perform real-time closed-loop control, adjusting torque and velocity on each joint within milliseconds. Simultaneously, the ABB DSQC643 I/O module processes digital and analogue signals from peripheral devices — including safety light curtains, pneumatic grippers, and vision sensors — feeding status data back to the HMI panel and SCADA dashboard.

In multi-robot cells, the IRC5 controller communicates with neighbouring controllers and with the cell’s ABB FlexPendant teach pendant over a dedicated internal Ethernet network. Remote I/O nodes, such as the ABB DSQC652 digital I/O board, extend the controller’s reach to field-level sensors and actuators without adding cable complexity at the cabinet level. When the 3HAC9038-1 is replaced or upgraded, engineers must verify connector pinout compatibility with the ABB IRB 6700, IRB 4600, or other IRC5-compatible manipulators to ensure uninterrupted data flow across the entire robot network.

At the edge of the factory network, an industrial Ethernet switch — typically a managed switch supporting VLAN segmentation — aggregates data from multiple IRC5 controllers and forwards it to the plant historian or cloud analytics platform. This architecture enables predictive maintenance algorithms to monitor cable insulation resistance, connector contact resistance, and signal integrity trends over time, flagging potential failures before they cause unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy robot installations is data isolation — the inability to extract real-time performance data from robot controllers and integrate it with plant-wide monitoring systems. Older IRC5 installations often rely on proprietary communication stacks that do not natively expose data to modern SCADA or IIoT platforms. The 3HAC9038-1, as part of a correctly specified cable assembly, ensures that the physical layer of this communication chain is sound, eliminating signal noise and intermittent faults that can corrupt encoder feedback and cause false alarms in the safety PLC.

When the power control cable degrades — due to repeated flexing, chemical exposure, or connector oxidation — the IRC5 controller may log axis errors, trigger emergency stops, or produce inconsistent positional data. These symptoms are frequently misdiagnosed as software or drive faults, leading to extended troubleshooting cycles. Replacing the 3HAC9038-1 with a genuine ABB spare restores signal integrity and allows the SCADA system to resume accurate cycle-time monitoring, OEE calculation, and alarm management without further intervention.

For facilities undergoing digital transformation, integrating the IRC5 robot cell with a SCADA/HMI platform such as ABB Ability™ or a third-party system via OPC-UA requires a stable and noise-free physical layer. The 3HAC9038-1’s shielded construction minimises electromagnetic interference from adjacent variable frequency drives (VFDs) and servo amplifiers, protecting the integrity of encoder pulses and safety signals that underpin the entire control loop. This makes it an essential component not just for robot operation, but for the broader goal of factory-wide data transparency and production line visibility.

System expansion is equally straightforward: when adding a new robot to an existing IRC5 network, the 3HAC9038-1 provides a standardised, pre-tested cable interface that reduces commissioning time and eliminates the risk of wiring errors. Combined with ABB’s modular IRC5 architecture, this approach supports scalable automation rollouts without disrupting existing production schedules.

Industrial Connectivity FAQ

Q1: Does the ABB 3HAC9038-1 support EtherNet/IP or PROFINET communication?
The 3HAC9038-1 is a power and encoder control cable, not a fieldbus communication cable. However, it is a prerequisite for stable IRC5 operation, which in turn supports EtherNet/IP, PROFINET, DeviceNet, and other protocols via optional communication modules (e.g., DSQC688, DSQC679). Without a reliable 3HAC9038-1 connection, fieldbus communication may be disrupted by drive faults or safety stops.

Q2: How does cable condition affect network stability and SCADA data quality?
A degraded power control cable introduces signal noise into the encoder feedback loop, causing the IRC5 to generate axis error codes and emergency stop events. These events appear as data gaps or alarm floods in SCADA and HMI systems, reducing the reliability of OEE metrics and predictive maintenance models. Replacing the cable with a genuine 3HAC9038-1 restores clean signal transmission and consistent data reporting.

Q3: Is the 3HAC9038-1 compatible with all IRC5 robot models and cabinet variants?
The 3HAC9038-1 is designed for the ABB IRC5 controller family, including Single Cabinet, Dual Cabinet, and Panel Mounted variants. Compatibility depends on the specific robot manipulator model (e.g., IRB 4600, IRB 6700, IRB 2600). Always verify the cable assembly part number against the robot’s wiring diagram before ordering. ZYPLC’s technical team can assist with cross-referencing.

Q4: What warranty and testing standards apply to this cable?
Every 3HAC9038-1 supplied by ZYPLC carries a warranty terms confirmed during quotation and is electrically tested before shipment to verify continuity, insulation resistance, and connector integrity. This pre-shipment testing protocol ensures that the cable performs to ABB’s original specification from the moment it is installed, minimising commissioning risk and protecting your automation investment.
