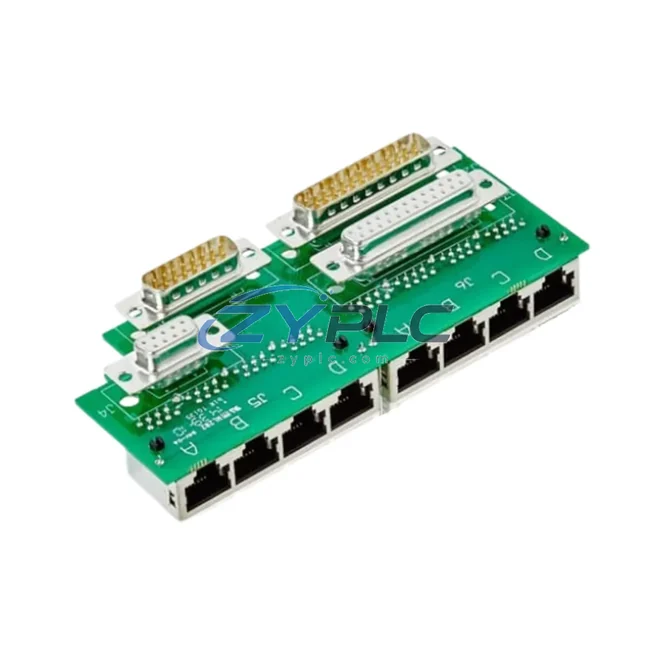

ABB 3HEA800906-001 Node Splitter IRC5 Industrial Network Interface

ABB 3HEA800906-001 Node Splitter: Industrial Data Link for IRC5 Smart Factory Networks

The ABB 3HEA800906-001 Node Splitter is a precision-engineered industrial network interface designed to extend and distribute DeviceNet communication across IRC5 robot controller architectures. In modern smart factory environments where seamless data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, servo drives, and upper-level MES platforms is mission-critical, the 3HEA800906-001 delivers the network backbone reliability that production engineers demand.

From the moment a signal is captured at the sensor level — whether from a proximity switch, encoder feedback, or vision system — the data must travel reliably through the automation hierarchy. The ABB 3HEA800906-001 Node Splitter sits at the heart of this data chain, enabling the IRC5 controller to communicate with distributed I/O nodes, coordinate motion sequences, and relay real-time status data upstream to SCADA dashboards and HMI operator panels without latency or packet loss.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated IRC5 robotic cell, the ABB 3HEA800906-001 functions as the network distribution node that allows the IRC5 main computer to address multiple DeviceNet slave devices simultaneously. Consider a typical welding or assembly line: the IRC5 controller — running ABB’s RobotWare software — issues motion commands while simultaneously polling I/O status from remote I/O modules such as the ABB DSQC 652 digital I/O board and the ABB DSQC 328A analog I/O unit. The 3HEA800906-001 Node Splitter distributes the DeviceNet trunk signal to these drop-line devices without signal degradation.

Upstream, the IRC5 system connects to a plant-level SCADA gateway — often an ABB AC500 PLC or a third-party Siemens S7-300 with a DeviceNet communication module — which aggregates robot status, cycle counts, fault codes, and production throughput data into the MES database. The ABB FlexPendant HMI provides the operator interface layer, displaying real-time axis positions, program states, and alarm conditions sourced directly from the DeviceNet network that the 3HEA800906-001 helps sustain.

For multi-robot cells, the node splitter enables the IRC5 to manage ABB DSQC 503 axis computer boards and ABB DSQC 609 power supply units across a shared DeviceNet segment, ensuring synchronized motion and coordinated I/O response times within the sub-millisecond range required for precision manufacturing. Edge gateway devices — such as an ABB Edge Computing Module or a third-party Moxa industrial gateway — can tap into this DeviceNet segment to push data to cloud-based analytics platforms, enabling predictive maintenance and OEE monitoring without interrupting the real-time control loop.

Variable frequency drives (VFDs) on conveyor systems adjacent to the robot cell, such as ABB ACS880 series drives with DeviceNet adapter options, can also be integrated into the same network segment managed by the 3HEA800906-001, allowing the IRC5 to coordinate robot pick timing with conveyor speed in a fully synchronized production flow.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid factory environments is data isolation — where robot controllers, PLCs, drives, and sensors each operate on incompatible communication protocols, creating information silos that prevent plant-wide visibility and coordinated control. The ABB 3HEA800906-001 Node Splitter directly addresses this by providing a standardized DeviceNet distribution point that bridges the IRC5 robot ecosystem with the broader industrial network.

Without a properly functioning node splitter, DeviceNet trunk lines cannot be reliably branched to multiple drop devices, leading to network instability, increased bus load errors, and communication timeouts that trigger robot faults and unplanned downtime. The 3HEA800906-001 eliminates these failure modes by providing clean signal distribution with correct impedance matching across the DeviceNet segment.

For facilities undergoing digital transformation — migrating from isolated robot cells to fully connected smart factory architectures — the 3HEA800906-001 is a foundational component. It enables the IRC5 to participate in plant-wide SCADA monitoring, remote diagnostics via OPC-UA gateways, and real-time alarm propagation to maintenance teams through HMI and mobile notification systems. Production line transparency improves dramatically when every robot, drive, and I/O node is visible on a unified network dashboard, and the 3HEA800906-001 makes that connectivity possible at the DeviceNet layer.

System expansion is equally simplified: adding new DeviceNet slave devices — additional remote I/O racks, vision system interfaces, or safety relay modules — requires only a drop-line connection to the existing trunk managed by the 3HEA800906-001, without redesigning the network topology or replacing the IRC5 controller hardware.

Every ABB 3HEA800906-001 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify DeviceNet communication integrity, node addressing, and signal distribution performance. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and communication failures, with global logistics via DHL and FedEx ensuring fast delivery to production facilities worldwide.

Industrial Connectivity FAQ

Q1: What is the maximum number of DeviceNet nodes the ABB 3HEA800906-001 can support on a single segment?
A: The DeviceNet protocol supports up to 64 nodes per network segment (addresses 0–63). The 3HEA800906-001 Node Splitter distributes the trunk signal to multiple drop lines, each of which can address individual slave devices within this node count limit. Proper network design — including correct termination resistors and cable length management — ensures stable communication across all connected nodes.

Q2: Is the ABB 3HEA800906-001 compatible with non-ABB DeviceNet masters such as Rockwell ControlLogix or Omron CJ2M PLCs?
A: Yes. DeviceNet is an open industrial protocol based on the CAN physical layer, and the 3HEA800906-001 functions as a passive network distribution component. It is compatible with any DeviceNet master controller, including Rockwell Automation ControlLogix, Omron CJ2M, Siemens with DeviceNet CM, and other CIP-compliant systems, provided the IRC5 is configured as a DeviceNet slave or master accordingly.

Q3: How does the 3HEA800906-001 contribute to network stability and reduced communication latency in high-speed robot applications?
A: The node splitter maintains correct DeviceNet bus impedance and signal integrity across trunk-to-drop transitions, preventing reflections and voltage drops that cause CAN frame errors and retransmissions. By ensuring clean signal distribution, it minimizes communication latency and reduces the risk of watchdog timeouts in time-critical IRC5 motion sequences, supporting cycle times in the millisecond range.

Q4: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims on the ABB 3HEA800906-001?
A: The warranty terms confirmed during quotation covers manufacturing defects, component failures, and DeviceNet communication malfunctions under normal industrial operating conditions. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC will arrange inspection, repair, or replacement as appropriate, with return logistics coordinated to minimize production downtime.
