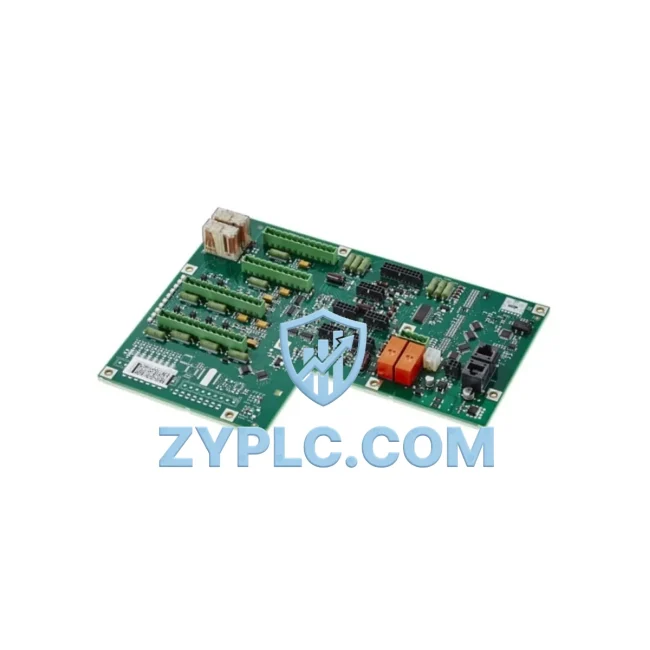

ABB 3HNA010059-001/02 Digital I/O Module for IRC5 Systems

ABB 3HNA010059-001/02 Digital I/O Module: Industrial Data Link for IRC5 Robot Systems

The ABB 3HNA010059-001/02 (also referenced as AA16C0778 / 3HAC021455-001/05) is a high-performance Digital I/O Module engineered for the ABB IRC5 robot controller platform. In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. This module serves as a critical node in that data chain — bridging physical signals from end-effectors, sensors, and actuators directly into the IRC5 controller’s real-time processing architecture, and from there into SCADA, MES, and cloud-based monitoring platforms.

Whether deployed in automotive body-in-white welding cells, electronics assembly lines, food and beverage packaging systems, or precision machining centers, the 3HNA010059-001/02 delivers deterministic I/O response times that keep robot motion synchronized with upstream and downstream process equipment. Its robust design meets the demands of 24/7 industrial operation, with full compatibility across the ABB IRC5 controller family including single-cabinet, dual-cabinet, and paint robot variants.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the ABB 3HNA010059-001/02 sits at the intersection of physical process control and digital data intelligence. Signal acquisition begins at the field level: proximity sensors, photoelectric detectors, and safety light curtains feed discrete signals into the module’s digital inputs. These signals are processed in real time by the IRC5 controller’s motion CPU, enabling the robot to react to part presence, fixture confirmation, and safety zone status within milliseconds.

At the controller level, the 3HNA010059-001/02 works in close coordination with the ABB DSQC 652 digital I/O board and the ABB DSQC 378B fieldbus communication module, which extends the IRC5’s connectivity to plant-wide DeviceNet or PROFIBUS-DP networks. Through these fieldbus adapters, the robot cell communicates with upstream ABB AC500 PLC systems managing conveyor sequencing, part indexing, and production scheduling. The PLC receives real-time status signals — weld complete, part gripped, cycle end — directly from the IRC5 via the digital output channels of the 3HNA010059-001/02.

For facilities running EtherNet/IP or PROFINET backbones, the IRC5 controller equipped with the appropriate DSQC communication board can bridge the robot cell into the plant Ethernet network, making I/O status data available to Wonderware SCADA, Ignition by Inductive Automation, or ABB Ability™ Connected Services platforms. HMI panels — such as the ABB CP600 series or third-party Siemens TP series touch panels — can display live robot I/O states, alarm conditions, and cycle counters, giving operators full process visibility without entering the robot cell.

At the edge layer, industrial gateways such as the Moxa MGate MB3480 or HMS Anybus X-gateway can be deployed to translate IRC5 fieldbus data into MQTT or OPC-UA streams for cloud analytics platforms. Variable frequency drives (VFDs) controlling conveyor motors and servo positioners receive coordinated start/stop commands through the PLC, which in turn receives its sequencing logic from the robot controller’s digital outputs — all routed through the 3HNA010059-001/02. This creates a closed-loop data architecture where every actuator state and sensor reading is traceable, logged, and available for predictive maintenance analysis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy robot cell integration is protocol fragmentation. Older IRC5 installations may use DeviceNet for robot I/O while the plant PLC network runs PROFIBUS-DP, and the SCADA system expects EtherNet/IP or Modbus TCP. The 3HNA010059-001/02, combined with the appropriate ABB DSQC fieldbus adapter, resolves this by standardizing I/O data at the controller level before it is translated and forwarded to the plant network — eliminating the need for external protocol converters between the robot and the PLC.

Data silos are another common problem in multi-robot facilities. When each IRC5 controller operates as an isolated island, production managers lose visibility into cross-cell performance metrics. By connecting each 3HNA010059-001/02-equipped IRC5 to a common PROFIBUS or EtherNet/IP segment, all robot I/O data can be aggregated into a single SCADA historian, enabling OEE dashboards, shift reports, and alarm trend analysis across the entire production floor.

Remote monitoring and diagnostics are increasingly critical as facilities reduce on-site maintenance staff. The IRC5 controller’s built-in web services, accessible via the RobotStudio Online Monitor or ABB Ability™ platform, expose I/O status, error logs, and program states over standard Ethernet. Maintenance engineers can remotely verify the state of digital inputs and outputs mapped through the 3HNA010059-001/02 without dispatching a technician to the cell — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production line transparency is achieved when robot I/O data is made available to MES systems in real time. Cycle counts, fault codes, and output confirmations from the 3HNA010059-001/02 can be mapped to MES production orders, providing accurate part traceability and automated quality records. For facilities pursuing ISO 9001 or IATF 16949 compliance, this level of data granularity is essential for audit readiness and continuous improvement programs.

System scalability is built into the IRC5 architecture. Additional I/O modules can be added to the controller’s internal bus without reconfiguring the fieldbus network, allowing production engineers to expand robot cell capabilities — adding new tooling, safety circuits, or process feedback signals — without disrupting existing automation logic.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3HNA010059-001/02 support within the IRC5 system?
The 3HNA010059-001/02 is a digital I/O module that interfaces with the IRC5 controller’s internal I/O bus. Protocol connectivity to external networks (DeviceNet, PROFIBUS-DP, EtherNet/IP) is handled by the IRC5’s DSQC fieldbus adapter boards. The combination supports all major industrial protocols used in automotive, electronics, and general manufacturing environments.

Q2: How is communication latency managed between the IRC5 and connected PLC or SCADA systems?
The IRC5 controller processes digital I/O signals in synchronization with its motion control cycle (typically 4ms). Fieldbus communication to external PLCs adds minimal overhead — DeviceNet and PROFIBUS-DP cycles are typically 1-10ms, while EtherNet/IP can achieve sub-millisecond update rates. This ensures that PLC and SCADA systems receive accurate, near-real-time I/O status from the robot cell.

Q3: Can the 3HNA010059-001/02 be integrated into an existing SCADA or MES system without modifying the robot program?
Yes. I/O signals mapped through the 3HNA010059-001/02 are accessible via the IRC5’s fieldbus interface without requiring changes to the RAPID robot program. SCADA and MES systems connect to the PLC or fieldbus gateway, which reads I/O states from the IRC5 over the plant network. This allows IT/OT integration projects to proceed without interrupting robot production.

Q4: What quality assurance and warranty coverage is provided with this module?
Every ABB 3HNA010059-001/02 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify digital input and output channel integrity, power supply performance, and communication bus compatibility. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch with full traceability documentation.
