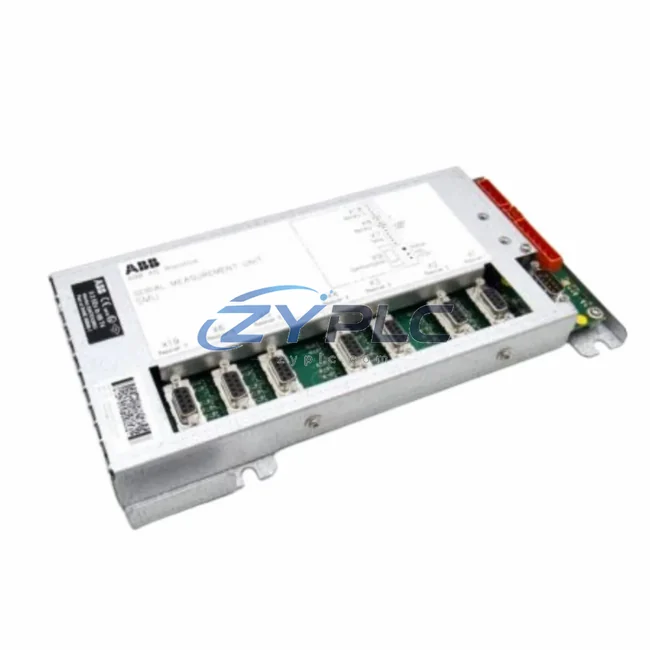

ABB 3HNA013638-001 SMU-03 Measurement Unit for IRC5

ABB 3HNA013638-001 SMU-03 Measurement Unit: Synchronization for IRC5 Robotic Systems

The ABB 3HNA013638-001 SMU-03 Measurement Unit is a precision-engineered feedback and signal processing component designed to operate at the heart of ABB IRC5 robotic control architecture. Rather than functioning as a standalone device, the SMU-03 serves as a critical node within a layered automation system — bridging the motion control layer, servo drive layer, and I/O signal layer to deliver synchronized, high-fidelity positional data across the entire robot cell. Its role in maintaining system coherence makes it indispensable for engineers designing, commissioning, or maintaining ABB robotic installations in demanding industrial environments.

In modern industrial automation, the reliability of a robotic system depends not on any single component, but on the seamless coordination of every layer within the control hierarchy. The SMU-03 is engineered with this philosophy in mind — providing stable, low-latency measurement signals that the IRC5 controller depends upon to execute precise motion trajectories, manage axis synchronization, and enforce safety interlocks across multi-axis robot configurations. Its system integration within the IRC5 platform ensures that every upstream and downstream module operates from a shared, accurate positional reference.

Product Specification Table

System Compatibility Notes

The SMU-03 does not operate in isolation. Its value is realized only when correctly integrated within the full IRC5 system architecture. At the control layer, the ABB IRC5 Main Computer (DSQC639) acts as the central processing unit, issuing motion commands and receiving feedback data from the SMU-03 in real time. The measurement unit translates raw encoder or resolver signals from the robot’s joint motors into digital positional data that the main computer uses to calculate trajectory corrections and velocity profiles — a process that defines the precision ceiling of the entire robotic cell.

At the drive layer, the SMU-03 works in close coordination with the ABB DSQC661 Drive Unit and DSQC663 Drive Module, which supply controlled power to the servo motors. The accuracy of the SMU-03’s feedback directly determines the quality of torque and speed regulation performed by these drive units. Any degradation in measurement signal quality propagates through the drive layer, resulting in positioning errors, axis oscillation, or fault conditions that interrupt production continuity.

The I/O layer, typically managed by the ABB DSQC652 Digital I/O Board or DSQC651 Analog I/O Module, interfaces with external sensors, safety relays, and end-of-arm tooling. The SMU-03 supports this layer indirectly by ensuring that the controller’s motion state is accurately known at all times, enabling the I/O system to trigger tool actions at precisely the correct robot positions — a prerequisite for consistent part handling, welding, and assembly outcomes.

For communication and network integration, the IRC5 system commonly employs the ABB DSQC688 DeviceNet Gateway or DSQC679 Fieldbus Adapter to connect the robot controller to plant-level SCADA systems, PLCs, or EtherNet/IP networks. The SMU-03’s stable feedback loop is a prerequisite for reliable network-level status reporting, as the controller can only transmit accurate position and status data when its internal measurement chain is functioning correctly. This system integration between the measurement layer and the communication layer is what enables true system-wide transparency.

At the power layer, the ABB DSQC609 Power Supply Unit provides regulated DC power to the controller’s internal boards, including the measurement unit. Stable power delivery is essential for the SMU-03 to maintain signal integrity, particularly in environments with high electromagnetic interference from welding equipment, variable frequency drives, or large motor starters. Engineers designing control cabinets for such environments should ensure adequate shielding and grounding to protect the SMU-03’s signal paths.

The human-machine interface layer, typically realized through the ABB FlexPendant (IRC5 Teach Pendant), allows operators and engineers to monitor axis positions, configure measurement parameters, and diagnose feedback faults. The SMU-03’s health status is directly visible through the FlexPendant’s diagnostic screens, making it straightforward to identify measurement chain issues during commissioning or preventive maintenance cycles — reducing mean time to repair and supporting long-term system uptime.

Industrial Application Notes

The ABB 3HNA013638-001 SMU-03 finds application across a wide range of industrial sectors where ABB IRC5 robotic systems are deployed as core automation assets.

In automotive manufacturing, IRC5-controlled robots perform spot welding, arc welding, material handling, and assembly operations on high-speed production lines. The SMU-03 ensures that each robot axis maintains sub-millimeter positional accuracy across thousands of cycles per shift, directly supporting weld quality, part placement precision, and line throughput targets. Redundant measurement architectures using paired SMU units are increasingly common in safety-critical automotive cells.

In electronics and semiconductor manufacturing, where component placement tolerances are measured in microns, the SMU-03’s high-resolution feedback capability supports the fine motion control required for PCB assembly, chip bonding, and optical inspection tasks. The unit’s low-latency signal processing ensures that the IRC5 controller can respond to positional deviations within microseconds, preventing yield losses caused by placement drift.

In metal fabrication and heavy industry, including steel mills, foundries, and press shops, the SMU-03 operates in thermally and electrically challenging environments. Its robust design supports continuous operation in the presence of heat, vibration, and electromagnetic noise — conditions that would compromise lesser measurement components. Long-term maintenance planning for these environments should include the SMU-03 as a critical spare, given its central role in the IRC5 measurement chain.

In food and beverage processing and pharmaceutical packaging, where hygienic design and precise motion are both required, the SMU-03 supports the IRC5 controller in executing pick-and-place, filling, capping, and labeling operations with the consistency demanded by regulatory and quality standards. Its sealed construction and resistance to cleaning agent vapors make it suitable for washdown-adjacent control cabinet installations.

In power generation and utilities, including hydroelectric, thermal, and nuclear facilities where robotic inspection and maintenance systems are deployed, the SMU-03’s reliability under continuous-duty conditions supports the long maintenance intervals required by plant operators. Its warranty terms confirmed during quotation and ZYPLC’s availability confirmed by RFQ supply chain ensure that replacement units are available without the extended lead times that can delay critical maintenance windows.

Product Compatibility FAQ

Q1: Is the ABB 3HNA013638-001 SMU-03 compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
The SMU-03 is designed for use within the ABB IRC5 control platform. Compatibility with specific IRC5 variants — including the standard IRC5, IRC5 Compact, and IRC5 Panel Mounted Controller — depends on the robot model and system configuration. Engineers should verify the applicable robot’s spare parts list and the IRC5 system documentation to confirm that 3HNA013638-001 is the correct measurement unit revision for their specific installation. Our technical team can assist with cross-referencing prior to order placement to ensure full system integration with your existing architecture.

Q2: What are the recommended commissioning steps when replacing the SMU-03 in an existing IRC5 system, and are there calibration requirements?
Replacing the SMU-03 in an operational IRC5 system typically requires the robot to be placed in a safe, mechanically locked position before the control cabinet is de-energized. After physical replacement, the IRC5 system may require a resolver calibration or fine calibration procedure using the FlexPendant to re-establish accurate axis reference positions. Engineers should follow the ABB IRC5 service manual procedures for measurement unit replacement and retain the original calibration data from the robot’s SMB (Serial Measurement Board) memory to minimize re-commissioning time. Our warranty terms confirmed during quotation covers the replacement unit against manufacturing defects throughout this process.

Q3: How does the warranty terms confirmed during quotation apply to the SMU-03, and what support is available for long-term maintenance planning?
Every ABB 3HNA013638-001 SMU-03 supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and premature failure under normal operating conditions. In the event of a warranty claim, our team provides rapid replacement support to minimize robot downtime. For long-term maintenance planning, we recommend holding a spare SMU-03 unit in your critical spares inventory, particularly for high-utilization robot cells operating on multi-shift schedules. Our stock availability and direct supply chain ensure that replacement units can be sourced quickly, reducing the risk of extended production stoppages due to measurement unit failure.
