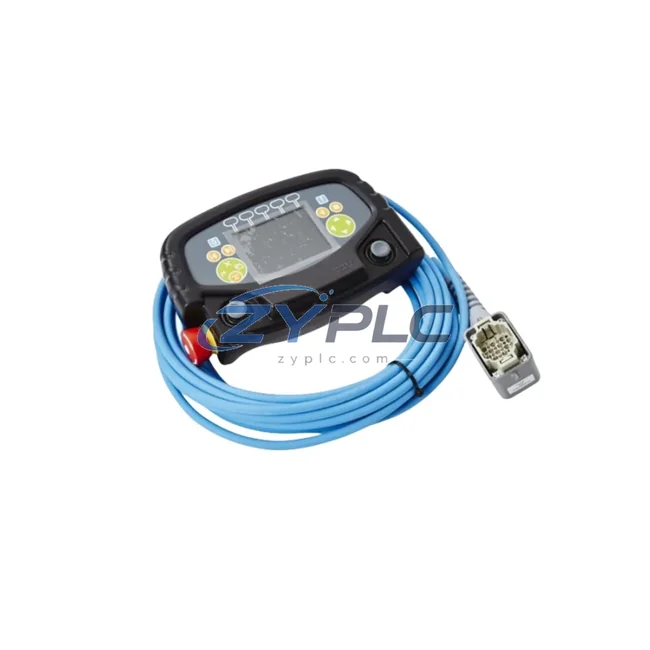

ABB 3HNA024941-002 Teach Pendant IRC5P

ABB 3HNA024941-002 Teach Pendant for IRC5P Automation

The ABB 3HNA024941-002 is a high-performance teach pendant engineered for the IRC5P paint robot controller platform. Designed with industrial energy efficiency at its core, this module enables operators to precisely program, monitor, and fine-tune robot motion paths — directly reducing unnecessary actuator cycles, minimizing idle-state power draw, and improving overall equipment utilization across paint and surface-treatment production lines.

In modern manufacturing environments where energy cost per unit is under constant scrutiny, the 3HNA024941-002 plays a critical role in the control loop. By giving operators granular, real-time command over the IRC5P controller’s motion parameters, it allows production engineers to eliminate redundant travel paths, reduce acceleration-deceleration losses, and synchronize robot cycles with upstream conveyor timing — all of which translate directly into measurable reductions in per-shift energy consumption.

Product Specification Table

System Compatibility and Application

The 3HNA024941-002 teach pendant does not operate in isolation — it is the human interface layer of a tightly integrated industrial automation system. Within the IRC5P system, the pendant communicates directly with the ABB IRC5P Main Computer Unit (MCU), which coordinates all motion planning and servo drive commands. Efficient path programs entered via the 3HNA024941-002 are executed by the ABB DSQC639 Axis Computer, which manages real-time interpolation and minimizes unnecessary servo torque demand.

On the drive side, the IRC5P platform relies on integrated servo drive modules — such as the ABB DSQC508 Drive Unit — to convert controller commands into precise motor currents. When robot paths are optimized through the teach pendant, these drive units operate closer to their efficiency sweet spot, avoiding the high-current transients associated with abrupt direction changes or over-travel. This directly reduces heat generation in the drive cabinet and extends the service life of power components.

For condition monitoring at the system level, the 3HNA024941-002 works alongside the ABB IRC5P Power Distribution Board (DSQC662), which manages cabinet-level power routing. Operators using the teach pendant to schedule maintenance windows and controlled shutdowns can leverage the power board’s switching logic to cut standby consumption during non-production periods. Paired with an external ABB B23 Energy Meter or equivalent DIN-rail power analyzer, facilities can log per-robot energy consumption and benchmark efficiency improvements after path reprogramming sessions.

Communication between the IRC5P controller and the broader factory automation network is handled via the ABB DSQC688 DeviceNet Gateway or DSQC679 Profibus Adapter, depending on the plant’s fieldbus topology. Programs created on the 3HNA024941-002 can be uploaded to a central ABB RobotStudio offline programming environment for simulation and energy cycle analysis before deployment — eliminating trial-and-error on the production floor and reducing wasted motion during commissioning. The ABB FlexPendant (3HAC028357-001) serves as a complementary interface on standard IRC5 platforms, and familiarity with one simplifies cross-training on the other.

For I/O expansion and sensor integration — such as flow meters, temperature probes, or paint atomizer feedback — the IRC5P system supports the ABB DSQC652 Digital I/O Board, which feeds real-time process data back to the controller. This closed-loop feedback, accessible and configurable through the 3HNA024941-002 interface, enables the robot program to adapt dynamically to process conditions, avoiding energy-wasteful fixed-speed operation when variable conditions would allow reduced cycle intensity.

Maintenance and Replacement Notes

In automotive paint shop environments — one of the most energy-intensive segments of vehicle manufacturing — the ABB 3HNA024941-002 delivers measurable impact across several dimensions of operational efficiency.

Reduced Idle Energy Draw: Paint robots frequently wait for conveyor indexing or upstream process completion. Using the teach pendant to program optimized wait states and low-power hold positions — rather than maintaining full servo torque at a fixed standby pose — can reduce idle-state power consumption by a meaningful margin across a multi-robot cell.

Path Efficiency and Motor Load Reduction: Every unnecessary millimeter of robot travel represents wasted servo energy. The 3HNA024941-002 allows process engineers to iteratively refine spray paths, reducing total path length and the number of direction reversals per cycle. Fewer reversals mean lower peak current demands on the DSQC508 drive units and reduced thermal stress on motor windings.

Production Line Takt Optimization: By enabling precise cycle time measurement and path adjustment directly at the robot, the teach pendant helps synchronize robot cycle times with conveyor speed — eliminating the buffer time that robots often spend in unnecessary hold states. Tighter takt alignment across a paint line reduces total line energy consumption and improves throughput per kWh.

Predictive Maintenance Enablement: The IRC5P controller logs axis load data and error histories accessible through the 3HNA024941-002 interface. Operators can monitor abnormal torque signatures — early indicators of bearing wear, paint buildup on wrist axes, or atomizer imbalance — and schedule maintenance before failures cause unplanned downtime. Avoiding emergency stops and restart cycles eliminates the energy spikes associated with cold-start motor acceleration.

Inventory Availability and Supply Assurance: ZYPLC maintains ready stock of the 3HNA024941-002 to support rapid replacement in the event of pendant failure, minimizing production line downtime. All units undergo functional testing prior to shipment, verifying display integrity, button response, emergency stop circuit continuity, and communication handshake with the IRC5P controller.

Product Sourcing FAQ

Q1: How does the 3HNA024941-002 contribute to operational stability in a paint robot cell?
The teach pendant is the primary tool for path programming and cycle optimization on the IRC5P platform. By enabling engineers to refine motion paths, reduce unnecessary travel, and program energy-efficient wait states, it directly reduces the servo load and idle power draw of the robot system. Efficiency gains are realized through better path design, not hardware modification.

Q2: Is the 3HNA024941-002 compatible with all IRC5P controller variants?
The 3HNA024941-002 is designed specifically for the ABB IRC5P paint robot controller series. It is not directly interchangeable with standard IRC5 pendants (such as the 3HAC028357-001 FlexPendant) due to differences in the paint-variant controller interface. Always verify the controller variant and software version before ordering a replacement pendant.

Q3: What is the replacement and testing process for this unit?
All 3HNA024941-002 units supplied by ZYPLC are tested prior to shipment. Testing covers display function, keypad response, emergency stop circuit, and IRC5P communication initialization. Units are shipped with protective packaging suitable for international freight. Lead time from order confirmation to dispatch is typically 1–3 business days for availability confirmed by RFQ units.

Q4: What warranty coverage is provided?
ZYPLC provides a warranty terms confirmed during quotation on the ABB 3HNA024941-002 from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, incompatible controller configurations, or physical mishandling. Warranty claims are supported via direct contact with the ZYPLC sales team.
