ABB 57275782D Digital Input Board Advant

ABB 57275782D Digital Input Board for Advant Automation

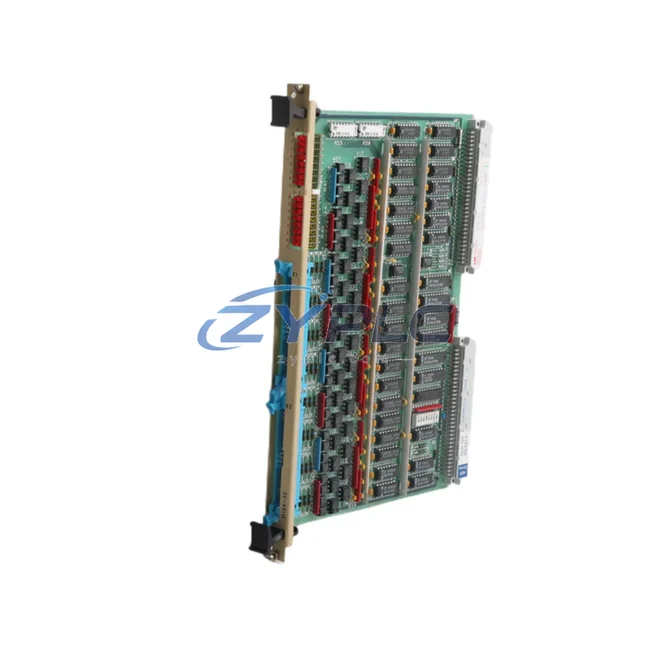

The ABB 57275782D (SKU: DI86-32 57275782D) is a high-density 32-channel digital input board engineered for the ABB Advant Controller series. Designed to minimize signal acquisition overhead and reduce unnecessary polling cycles, this module plays a direct role in lowering the energy footprint of industrial control architectures. By delivering fast, reliable field signal capture with minimal power draw per channel, the DI86-32 enables leaner automation loops that translate into measurable reductions in plant-wide operating load.

In modern manufacturing environments where energy costs and equipment uptime are equally critical KPIs, the choice of I/O hardware matters more than it might appear. The ABB 57275782D is built to operate continuously in demanding industrial conditions — from automotive assembly lines to chemical processing plants — while maintaining signal integrity and minimizing the controller’s scan-cycle burden. Fewer false triggers, faster input resolution, and stable communication with the Advant Controller AC450 or AC460 mean the PLC spends less time in error-recovery routines and more time executing productive control logic.

Every unit shipped from ZYPLC undergoes pre-shipment functional testing to verify channel integrity, power rail stability, and backplane communication. Stock is maintained on-hand for shipment arranged after confirmation, and all modules are covered by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility and Application

The ABB 57275782D does not operate in isolation — its efficiency contribution is amplified when integrated within a well-designed Advant automation architecture. In a typical energy-optimized plant layout, the DI86-32 collects field-level digital signals from sensors, limit switches, and proximity detectors, feeding real-time status data into the ABB AC450 Advant Controller. The controller processes this data and issues commands to downstream drive systems, including the ABB ACS800 series variable frequency drive, which regulates motor speed based on actual process demand rather than fixed setpoints — a fundamental step in eliminating motor over-running and the unplanned downtime it causes.

On the output side, the DI86-32 works in tandem with digital output modules such as the ABB DO810 Digital Output Board to complete the control loop. Analog process variables — pressure, flow, temperature — are captured by the ABB AI810 Analog Input Module, providing the controller with the full picture needed to make maintenance decisions. For motion-critical applications, the ABB MicroFlex e150 servo drive receives positioning commands derived from the controller’s processed input data, enabling precise, energy-efficient axis control without unnecessary torque or speed overshoot.

Communication across the automation network is handled via PROFIBUS DP or Modbus RTU protocol layers, allowing the Advant system to exchange data with higher-level SCADA platforms and condition monitoring systems. The ABB CP430 HMI panel provides operators with a real-time view of operating load trends, drive status, and I/O diagnostics — enabling proactive intervention before inefficiencies escalate into downtime. Power quality at the panel level is maintained by the ABB CP-E 24/10.0 power supply unit, ensuring stable 24 VDC rail voltage that the DI86-32 and associated I/O modules depend on for accurate signal acquisition.

For plants implementing predictive maintenance strategies, the DI86-32’s reliable input capture supports condition monitoring routines within the ABB System 800xA or third-party CMMS platforms, where digital status signals from vibration sensors, thermal switches, and run-hour counters feed maintenance scheduling algorithms. This reduces unplanned downtime and the energy spikes associated with emergency restarts and cold-start motor surges.

Maintenance and Replacement Notes

Consider a mid-scale automotive stamping facility running three-shift operations. The production line relies on a network of ABB Advant controllers managing press cycles, conveyor indexing, and part transfer robots. Before optimizing the I/O layer, aging input modules with slow scan rates forced the controller to extend its cycle time, causing downstream drives to hold torque longer than necessary between press strokes. Replacing legacy boards with the ABB 57275782D DI86-32 reduced the controller scan overhead, allowing the ACS800 VFDs on the conveyor motors to ramp down faster between cycles — a change that reduced conveyor motor load during idle intervals by a measurable margin across a full production shift.

In a water treatment facility, the DI86-32 monitors valve position feedback and pump run signals across 32 field points. The fast, stable input acquisition allows the Advant controller to implement tighter pump sequencing logic, avoiding simultaneous motor starts that cause demand spikes on the facility’s power meter. By staggering motor start commands based on real-time input status — rather than fixed timers — the plant reduced its peak demand charge, one of the largest line items on an industrial electricity bill.

Maintenance teams benefit directly from the module’s reliability. With a mean time between failures consistent with ABB’s industrial-grade hardware standards, the DI86-32 reduces the frequency of I/O-related fault investigations. Each avoided unplanned shutdown eliminates the energy cost of a cold restart sequence — which, for large motor-driven systems, can represent a significant transient load. Combined with ZYPLC’s pre-shipment testing and warranty terms confirmed during quotation coverage, procurement teams can plan replacement cycles with confidence, maintaining spare inventory without overstocking.

Product Sourcing FAQ

Q1: How does the ABB 57275782D contribute to operational stability in an Advant-based system?
The DI86-32 reduces controller scan-cycle overhead by delivering fast, stable 32-channel digital input acquisition. This allows the Advant controller to issue drive commands more responsively, enabling VFDs like the ACS800 to ramp motors down sooner during idle periods — directly reducing motor load between production cycles.

Q2: Is the 57275782D compatible with both AC450 and AC460 Advant Controllers?
Yes. The ABB 57275782D is designed for the Advant S100 I/O bus and is compatible with the AC450 and AC460 controller families, as well as Advant OCS configurations. If you are integrating into a mixed-generation Advant system, contact ZYPLC to confirm backplane slot compatibility before ordering.

Q3: What is the recommended replacement or upgrade path if the 57275782D is end-of-life in my system?
For systems being migrated from Advant to the ABB System 800xA platform, the S100 I/O family can often be retained during a phased migration. ZYPLC stocks both legacy Advant I/O modules and compatible 800xA I/O boards to support parallel-run migration strategies. Our technical team can advise on direct replacement options based on your channel count and signal type requirements.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every ABB 57275782D shipped by ZYPLC is tested for channel continuity, backplane communication integrity, and power rail stability prior to dispatch. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC — contact plc.sales@zyplc.com with your order reference and fault description to initiate a return or replacement.
