ABB 5SHX0845F0001 IGCT Power Interface for ACS6000 Systems

ABB 5SHX0845F0001 IGCT Power Interface for ACS6000 Drive Systems: Industrial Data Link and Smart Factory Connectivity

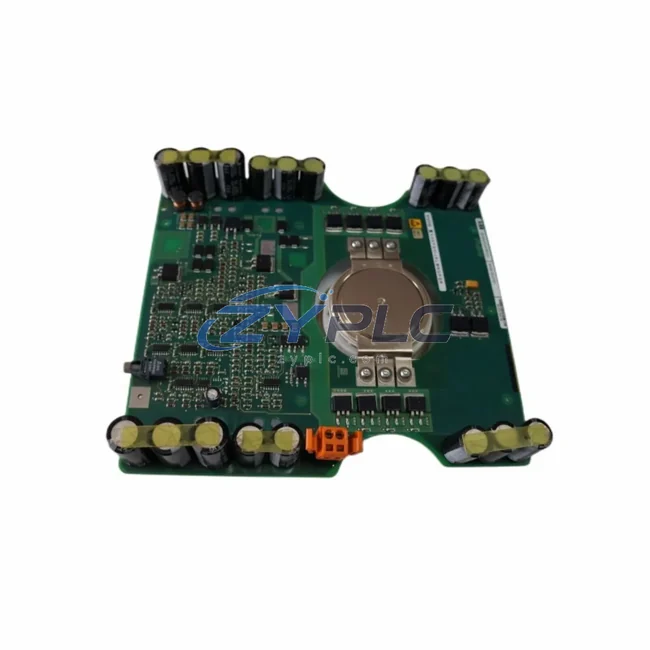

The ABB 5SHX0845F0001 (alternate part number 3BHL000385P0101) is a high-performance Gate Commutated Thyristor (IGCT) module engineered for demanding industrial power conversion and drive control applications. Designed as a core switching element within ABB’s ACS6000 medium-voltage drive platform, this IGCT module plays a critical role in the industrial data and power chain — from field-level energy conversion to supervisory control and real-time monitoring across smart factory environments.

In modern industrial automation, the power semiconductor layer is no longer isolated from the communication and control network. The 5SHX0845F0001 operates at the intersection of high-power switching and intelligent drive control, enabling seamless integration with SCADA systems, HMI platforms, and upper-level MES/ERP architectures. Its gate commutation technology ensures precise, low-loss switching that supports the real-time feedback loops demanded by today’s process-critical applications — including compressor drives, pump stations, mill drives, and marine propulsion systems.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB 5SHX0845F0001 IGCT module sits at the heart of a layered industrial automation architecture. In a typical ACS6000 medium-voltage drive installation, the data and power flow begins at the field level, where process sensors — including speed encoders, temperature transmitters, and current transducers — feed real-time signals into the ABB ACS6000 drive controller. The controller processes these inputs and issues precise gate pulse commands to the 5SHX0845F0001 IGCT, regulating motor torque and speed with microsecond-level accuracy.

The drive controller communicates upstream via PROFIBUS-DP or PROFINET to the plant’s PLC layer — typically an ABB AC500 PLC or Siemens S7-400 / S7-1500 — which coordinates multi-drive sequencing, interlocking, and process logic. Alongside the IGCT switching layer, the ABB IGCT Gate Drive Unit (GDU) provides the isolated gate signal interface, monitoring gate current feedback and reporting fault states back to the drive controller in real time.

At the network level, the ACS6000 drive integrates with plant-wide SCADA systems such as ABB System 800xA or Siemens WinCC, enabling operators to monitor drive status, energy consumption, and alarm conditions from centralized HMI workstations. Remote I/O modules — such as the ABB CI854 PROFIBUS interface module — extend the communication reach to distributed field panels, while ABB NETA-21 remote monitoring adapters provide secure Ethernet-based remote diagnostics and drive parameter access without requiring on-site intervention.

In multi-drive installations, the 5SHX0845F0001 works in parallel with companion IGCT modules such as the ABB 5SHX0845F0002 and 5SHX1045H0006, forming the complete power stack of the ACS6000 converter. The ABB SDCS-CON-4 control board manages the firing sequence across all IGCT positions, ensuring balanced current sharing and coordinated fault response. Energy metering data flows from the drive to the plant’s MES layer via OPC-UA gateways, supporting production transparency, predictive maintenance scheduling, and energy efficiency reporting.

For edge-level data aggregation, industrial edge gateways — such as the ABB Edge Connect or third-party Moxa MGate series — collect drive diagnostics, vibration data from connected sensors, and thermal readings from the IGCT heat sink assembly, forwarding structured data packets to cloud-based analytics platforms. This end-to-end data chain — from the 5SHX0845F0001 gate switching event to the SCADA dashboard and cloud analytics layer — exemplifies the connected intelligence that defines Industry 4.0 power drive systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial drive environments is data isolation — the inability to extract meaningful operational data from power semiconductor layers and integrate it into plant-wide monitoring and control systems. Legacy IGCT-based drives often operate as black boxes, with fault codes and performance data locked within proprietary drive controllers and inaccessible to SCADA or MES platforms.

The ABB 5SHX0845F0001, when deployed within the ACS6000 ecosystem, directly addresses this challenge. The ACS6000 drive platform supports open communication protocols including PROFIBUS-DP, PROFINET, Modbus TCP, and DeviceNet, allowing drive status, energy data, and fault diagnostics to be published to any compatible SCADA or DCS system. This eliminates the protocol fragmentation that typically forces plant engineers to rely on manual inspection or proprietary software tools for drive health assessment.

Remote monitoring capability is a key value driver. With the ABB NETA-21 remote monitoring adapter connected to the ACS6000 drive, maintenance teams can access real-time IGCT junction temperature trends, gate current waveforms, and switching loss data from any location — enabling predictive maintenance decisions before a fault escalates to unplanned downtime. Alarm thresholds can be configured within the drive controller and propagated to the plant’s alarm management system, ensuring that IGCT degradation events trigger immediate operator notification.

For plants undergoing digital transformation, the 5SHX0845F0001 supports a phased integration approach. Existing ACS6000 installations can be upgraded with communication modules and edge gateways without replacing the core power stack, protecting capital investment while enabling production line transparency, OEE tracking, and remote diagnostics. System expansion — adding new drive nodes, extending the PROFINET ring, or integrating additional remote I/O — is supported without disrupting the existing IGCT switching architecture.

Every ABB 5SHX0845F0001 IGCT module supplied by ZYPLC undergoes full functional testing prior to shipment, including gate trigger verification, forward voltage drop measurement, and thermal resistance validation. Availability confirmed by RFQ inventory ensures rapid dispatch, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Industrial Connectivity FAQ

Q1: What communication protocols does the ACS6000 drive support when using the 5SHX0845F0001 IGCT module?
The ACS6000 drive platform supports PROFIBUS-DP, PROFINET, Modbus TCP, and DeviceNet via optional communication adapter modules. The 5SHX0845F0001 IGCT itself interfaces with the drive’s internal gate drive unit (GDU), while the drive controller manages all external protocol communication to PLC, SCADA, and HMI systems.

Q2: How is network stability maintained in multi-IGCT drive configurations?
The ABB ACS6000 uses a dedicated SDCS-CON-4 control board to synchronize gate firing across all IGCT positions in the power stack. Redundant communication paths and watchdog timers ensure that a single communication fault does not propagate to a drive trip, maintaining network stability and process continuity.

Q3: Can the 5SHX0845F0001 be integrated into an existing SCADA or DCS system without replacing the entire drive?
Yes. The ACS6000 drive supports retrofit communication upgrades via plug-in adapter modules (e.g., RPBA-01 for PROFIBUS, RETA-01 for Ethernet). These modules allow existing ACS6000 installations — including those using the 5SHX0845F0001 IGCT — to be connected to modern SCADA, DCS, or MES platforms without modifying the power stack.

Q4: What testing and warranty coverage is provided for the ABB 5SHX0845F0001?
All 5SHX0845F0001 IGCT modules supplied by ZYPLC are fully tested before shipment, including gate trigger function, forward voltage characteristics, and thermal performance validation. A warranty terms confirmed during quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
