ABB 5SHX14H4502 IGCT Module GVC704

ABB 5SHX14H4502 IGCT Module for GVC704 Automation

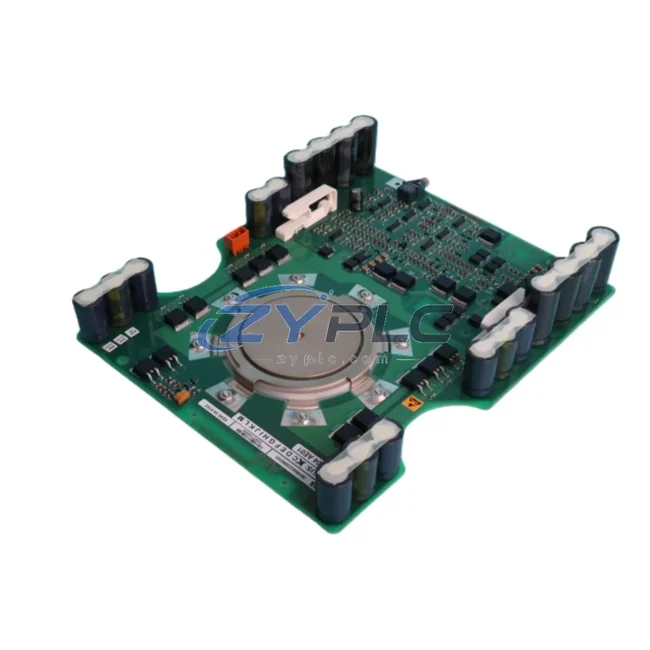

The ABB 5SHX14H4502 (Part No. 3BHB003230R0101, GVC704 AE01) is a high-efficiency Integrated Gate-Commutated Thyristor (IGCT) module engineered for medium-voltage variable speed drives and industrial power conversion systems. Designed to operate within ABB’s ACS6000 and ACS5000 drive platforms, this IGCT module delivers precise switching control that directly reduces switching losses, minimizes reactive power waste, and improves overall drive efficiency — translating into measurable operational stability across continuous production environments.

Product Specification Table

System Compatibility and Application

In a modern energy-optimized drive system, the ABB 5SHX14H4502 IGCT module sits at the core of the power conversion stack. It works in close coordination with the GVC704 AE01 gate drive board, which provides the precise gate pulse signals required to achieve low-loss commutation. The gate drive board monitors junction temperature and adjusts firing angles dynamically, preventing thermal runaway and unnecessary energy dissipation during partial-load operation.

At the system level, the IGCT module interfaces with the ABB ACS6000 medium-voltage drive control architecture, which relies on a distributed I/O and fieldbus communication backbone — typically PROFIBUS-DP or IEC 61850 — to relay real-time power quality data to the plant DCS or SCADA layer. This allows operators to monitor active power draw, power factor, and harmonic distortion from a centralized ABB AC800M PLC or equivalent control platform.

On the motor side, the 5SHX14H4502 enables smooth speed ramping through the drive’s PWM control algorithm, reducing inrush current during motor start-up — a critical factor when running large synchronous or induction motors in compressor stations or pump houses. Paired with an ABB RETA-02 Ethernet adapter module for remote diagnostics, the system can push energy consumption logs to a cloud historian or local MES, enabling shift-by-shift energy benchmarking.

For applications requiring regenerative energy recovery — such as downhill conveyors or crane hoists — the IGCT module supports four-quadrant operation within the ACS6000 platform. Recovered braking energy is fed back to the DC bus and redistributed to other active drives on the same supply rail, reducing net energy drawn from the grid. This architecture is further supported by ABB PVD300 power quality meters installed at the MCC panel, which log demand peaks and identify opportunities for load shifting.

In multi-axis systems, the 5SHX14H4502 can be deployed alongside ABB DSQC series servo drive modules and ABB CI854 PROFIBUS communication interface cards to build a fully integrated motion and maintenance planning network. The CI854 card enables the ACS6000 drive to participate in the plant-wide energy reporting loop, feeding data into the ABB Ability Energy Manager platform for KPI tracking and ISO 50001 compliance reporting.

Maintenance and Replacement Notes

In heavy industrial environments — steel rolling mills, cement plants, petrochemical compressor stations, and large-scale water treatment facilities — energy cost is one of the largest controllable operating expenses. The ABB 5SHX14H4502 IGCT module addresses this directly by enabling the ACS6000 drive to operate at near-unity power factor across a wide load range, reducing reactive power penalties on the utility bill.

Because IGCT technology inherently supports lower switching frequencies with minimal switching losses compared to IGBT-based alternatives, the 5SHX14H4502 is particularly well-suited for high-power, continuous-duty applications where thermal management and energy efficiency are paramount. Reduced heat generation means cooling system loads — fans, heat exchangers, water-cooling circuits — operate less intensively, creating a secondary energy saving effect that compounds over time.

From a maintenance and uptime perspective, the module’s robust gate drive interface and built-in protection logic (overcurrent, overvoltage, and thermal shutdown) reduce unplanned downtime events. Predictive maintenance strategies become viable when the GVC704 AE01 gate board’s diagnostic outputs are integrated into the plant’s condition monitoring system, allowing maintenance teams to schedule replacements during planned shutdowns rather than reacting to failures. This directly improves Overall Equipment Effectiveness (OEE) and reduces the unplanned downtime associated with emergency restarts and production catch-up cycles.

Every unit supplied by ZYPLC undergoes functional testing and load verification prior to shipment, ensuring that the 5SHX14H4502 performs to ABB factory specifications from day one. With a warranty terms confirmed during quotation and availability confirmed by RFQ availability, lead times are minimized — keeping your production line running and your maintenance planning program on schedule.

Product Sourcing FAQ

Q1: How does the ABB 5SHX14H4502 contribute to operational stability in a medium-voltage drive system?
The 5SHX14H4502 IGCT module reduces switching losses inherent in high-power conversion by enabling low-frequency, high-efficiency commutation within the ACS6000 drive. This lowers heat generation, reduces cooling energy demand, and supports near-unity power factor operation — all of which directly cut energy costs in continuous industrial processes.

Q2: Is the 5SHX14H4502 compatible with my existing ABB ACS6000 or ACS5000 drive system?
Yes. The 5SHX14H4502 (3BHB003230R0101) is designed for use with ABB ACS6000 and ACS5000 medium-voltage drive platforms in conjunction with the GVC704 AE01 gate drive board. Always verify your drive’s hardware revision and gate drive board compatibility before installation. Our technical team can assist with cross-referencing your existing configuration.

Q3: What is the recommended replacement procedure, and can it be done during a planned shutdown?
IGCT module replacement should be performed by qualified drive service engineers during a planned maintenance window. The process involves de-energizing the drive, discharging DC bus capacitors, removing the existing module, installing the replacement 5SHX14H4502, and performing gate drive verification tests before re-energizing. ZYPLC provides tested units with documentation to streamline the commissioning process.

Q4: What warranty and testing does ZYPLC provide for the ABB 5SHX14H4502?
All ABB 5SHX14H4502 units supplied by ZYPLC carry a warranty terms confirmed during quotation and are functionally tested prior to shipment. Testing includes gate drive response verification, insulation resistance checks, and operational parameter validation against ABB factory specifications. Availability is confirmed via RFQ for shipment arranged after confirmation to minimize your production downtime.
