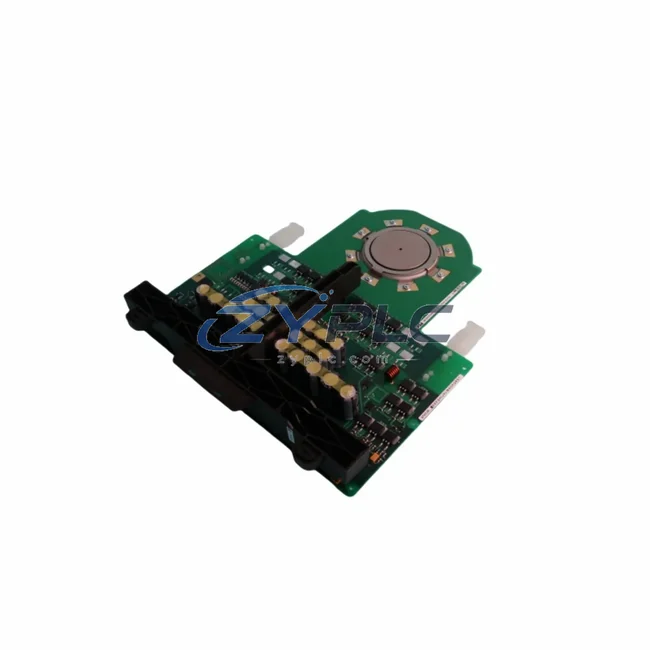

ABB 5SHY3545L0009 IGCT Module for ACS6000

ABB 5SHY3545L0009 IGCT Module for ACS6000

The ABB 5SHY3545L0009 (part number 3BHB013085R0001) is an Integrated Gate-Commutated Thyristor (IGCT) gate turn-off module engineered specifically for deployment within ABB’s ACS6000 and PCS6000 medium-voltage drive platforms. As a core switching element in the power conversion stack, this module occupies a critical position in the control architecture — bridging the high-power execution layer with the precision demands of the drive’s digital control and gate-drive circuitry. Its role is not simply that of a discrete component; it is a system-defined element whose performance directly governs the reliability, efficiency, and long-term maintainability of the entire drive system.

In modern industrial automation, medium-voltage variable-speed drives are no longer standalone devices. They are integrated nodes within layered control architectures that span the control layer (PLC/DCS), the drive intelligence layer (ACS6000 control unit), the power conversion layer (IGCT stack), the network communication layer (PROFIBUS, Modbus, or IEC 61850), and the supervisory HMI layer. The 5SHY3545L0009 operates at the heart of the power conversion layer, and its system integration capability ensures that replacement or commissioning activities do not disrupt the broader system’s operational continuity. Engineers working with ABB’s ACS6000 platform understand that the IGCT module must be matched precisely to the gate-drive unit, the snubber circuit, the DC link capacitor bank, and the cooling system — all of which are pre-engineered within the ACS6000 cabinet architecture.

This module is supplied with a warranty terms confirmed during quotation, reflecting confidence in its tested performance and suitability for demanding industrial environments including steel mills, mining hoists, marine propulsion, oil and gas compressors, and large pump/fan applications.

Product Specification Table

System Compatibility Notes

The 5SHY3545L0009 does not function in isolation. Its performance is inseparable from the coordinated operation of the surrounding ACS6000 system architecture. At the control layer, the ABB ACS6000 Control Unit (APBU board) generates the firing pulses that are transmitted via fiber-optic links to the gate-drive circuit of each IGCT module. The ABB IGCT Gate Unit (3BHB003154R0001) interfaces directly with the 5SHY3545L0009, providing the precise gate current waveform required for reliable turn-on and turn-off transitions at high power levels.

The DC link section — comprising the ABB ACS6000 DC Link Capacitor Bank and associated pre-charge resistors — must be correctly sized and maintained to ensure that the IGCT module operates within its safe operating area (SOA). The ABB Snubber Circuit Assembly for the ACS6000 stack provides the dv/dt protection that prevents overvoltage stress on the IGCT during commutation events. These components form an interdependent subsystem: replacing the 5SHY3545L0009 without verifying the condition of the snubber and gate-drive components is an incomplete maintenance action.

At the network and communication layer, the ABB RDCO-03 DDCS Communication Module and ABB RPBA-01 PROFIBUS Adapter enable the ACS6000 to receive speed and torque references from the plant DCS or PLC — typically an ABB AC500 PLC or a Siemens S7-400 controller in hybrid installations. The HMI layer, often realized through an ABB CP600 Panel or a SCADA workstation running ABB 800xA, provides operators with real-time visibility into drive status, fault codes, and IGCT health diagnostics. The ABB ACS6000 I/O Extension Module handles auxiliary signals including cooling water flow, cabinet temperature, and door interlock status — all of which feed into the drive’s protective logic and directly affect IGCT module longevity.

For redundant drive architectures — common in critical applications such as LNG compressor trains or mine winder systems — the ABB ACS6000 Redundancy Module enables hot-standby operation, ensuring that a single IGCT failure does not result in process shutdown. Maintaining a verified spare 5SHY3545L0009 module on-site is a standard recommendation within ABB’s predictive maintenance framework for ACS6000 installations.

Industrial Application Notes

The 5SHY3545L0009 IGCT module finds application across a broad spectrum of heavy industrial sectors where medium-voltage variable-speed drives are essential to process efficiency and maintenance planning.

In steel and metals processing, ACS6000 drives equipped with this IGCT module control rolling mill main drives, where precise torque control and rapid dynamic response are critical to product quality. The module’s ability to handle high repetitive peak currents makes it well-suited to the demanding duty cycles of reversing mill applications.

In oil, gas, and petrochemical facilities, the ACS6000 platform drives large centrifugal compressors and pipeline pumps. The 5SHY3545L0009 supports soft-start and variable-speed operation that reduces mechanical stress on couplings and seals, extending equipment life and reducing unplanned downtime. The warranty terms confirmed during quotation and verified testing protocol provide procurement teams with the confidence required for critical asset replacement decisions.

In mining and minerals applications — including conveyor drives, grinding mill drives, and hoist systems — the IGCT module’s robust switching characteristics and compatibility with the ACS6000’s regenerative braking capability enable energy recovery during descent cycles, contributing to measurable reductions in site energy consumption.

In water and wastewater treatment infrastructure, large pump drives using the ACS6000 platform benefit from the module’s stable switching performance across varying load profiles, supporting both constant-pressure and flow-controlled pumping strategies. The system integration design philosophy ensures that module replacement during scheduled maintenance windows can be completed without requiring full drive recommissioning, minimizing process interruption.

In power generation and utilities, including wind farm pitch control systems and hydro plant auxiliary drives, the 5SHY3545L0009 contributes to grid-compliant operation by enabling precise reactive power management within the ACS6000’s active front-end configuration.

Product Compatibility FAQ

Q1: Is the 5SHY3545L0009 directly interchangeable with other ABB IGCT modules used in the ACS6000 platform?
The 5SHY3545L0009 (3BHB013085R0001) is a specific IGCT module qualified for defined positions within the ACS6000 and PCS6000 power stack. While ABB produces multiple IGCT variants across the 5SHY and 5SHX series, interchangeability is determined by the drive’s hardware revision, the stack configuration, and the gate-drive board version. Always cross-reference the drive’s hardware documentation and the module’s position designation before substitution. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What commissioning steps are required after replacing the 5SHY3545L0009 in an operational ACS6000 system?
Following physical installation, the replacement procedure requires verification of gate-drive fiber-optic connections, confirmation of snubber circuit integrity, and a controlled power-up sequence per ABB’s ACS6000 maintenance manual. The drive’s self-diagnostic routine will perform an IGCT gate test during the initialization sequence. In systems with redundancy modules, the standby channel should be tested independently before returning the drive to full-load operation. No full drive recommissioning is typically required for a like-for-like IGCT replacement, which is a key benefit of the system integration architecture.

Q3: What does the warranty terms confirmed during quotation cover for the 5SHY3545L0009, and what support is available during the warranty period?
The warranty terms confirmed during quotation covers manufacturing defects, premature failure under normal operating conditions consistent with the ACS6000 platform’s design parameters, and verified performance against ABB’s original electrical specifications. Warranty claims are supported by our technical team, who can assist with failure analysis documentation, cross-referencing with ABB service bulletins, and expedited replacement logistics. Customers are encouraged to retain installation records and commissioning reports to facilitate any warranty assessment process.
