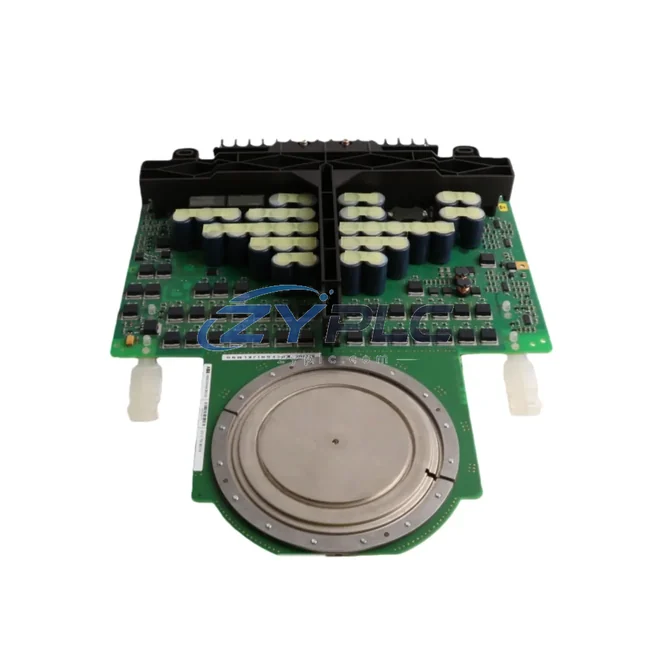

ABB 5SHY3545L0010 IGCT Module for ACS6000

ABB 5SHY3545L0010 IGCT Module for ACS6000: Compatibility and Replacement Notes

The ABB 5SHY3545L0010 is an Integrated Gate-Commutated Thyristor (IGCT) module engineered specifically for deployment within ABB’s ACS6000 medium voltage drive platform. As a core switching element in the power conversion stage, this module occupies a critical position in the layered automation architecture — bridging the control layer’s command signals with the high-power execution layer responsible for driving large AC motors in demanding industrial environments. Understanding its role within the full system hierarchy is essential for engineers designing, commissioning, or maintaining ACS6000-based installations.

In a complete ACS6000 drive system, the 5SHY3545L0010 does not operate in isolation. It functions as part of a coordinated assembly that spans the control layer (housing the AMC board and RDCU control unit), the power conversion layer (where IGCT modules perform the actual switching), the gate drive layer (managed by the GVC750BE101 gate unit), the DC link and capacitor bank layer, the cooling and thermal management layer, and the network communication layer interfacing with plant-level SCADA or DCS systems via PROFIBUS, Modbus, or ABB’s proprietary DDCS fiber-optic protocol. Each layer depends on the others for stable, continuous operation, and the integrity of the IGCT module directly determines the reliability of the entire drive.

Product Specification Table

System Compatibility Notes

The ACS6000 drive architecture is built around a tightly integrated set of hardware layers, and the 5SHY3545L0010 IGCT module is the linchpin of the power conversion stage. At the control layer, the RDCU-02C control unit and the AMC board (3BHE009681R0101) generate the firing pulses and system-level commands that govern switching behavior. These signals are transmitted via fiber-optic DDCS links to the gate drive layer, where the GVC750BE101 gate unit translates control commands into the precise gate current pulses required to turn the IGCT on and off with sub-microsecond accuracy.

The DC link layer, comprising the DC capacitor bank assembly (3BHB013088R0001) and associated pre-charge circuits, provides the energy reservoir that the IGCT module switches against. Proper capacitor bank sizing and health directly affect the voltage stress seen by the 5SHY3545L0010 during commutation. Engineers must ensure that the snubber circuits and clamp networks within the power stack are correctly rated and in good condition whenever an IGCT module is replaced or recommissioned.

On the network and communication layer, the ACS6000 interfaces with plant DCS or SCADA systems through PROFIBUS DP adapter modules (NPBA-12) or Modbus RTU/TCP communication boards, enabling real-time monitoring of drive status, fault codes, and thermal parameters. This connectivity allows maintenance teams to detect early signs of IGCT degradation — such as rising on-state voltage or gate energy anomalies — before a catastrophic failure occurs.

The human-machine interface layer typically employs the ABB Panel Bus CDP312R control panel or an integrated HMI terminal, providing operators with direct access to drive parameters, fault history, and commissioning tools. During IGCT replacement, the CDP312R is used to verify gate drive integrity and run the drive’s built-in diagnostic routines. At the execution layer, the ACS6000 drives large synchronous or induction motors — often in the 1 MW to 27 MW range — through output filter reactors and dV/dt filters that protect motor insulation from the steep voltage fronts generated during IGCT switching.

For redundancy-critical installations, some ACS6000 configurations incorporate bypass contactors and redundant power cell arrangements, allowing the drive to continue operating at reduced capacity even if one IGCT module requires replacement. This architecture significantly reduces unplanned downtime in continuous-process industries such as petrochemicals, mining, and steel production. Maintaining a verified spare 5SHY3545L0010 in the plant’s critical spares inventory is a standard recommendation for any facility operating ACS6000 drives in 24/7 production environments.

Industrial Application Notes

Manufacturing and Metal Processing: In steel rolling mills and aluminum smelters, ACS6000 drives equipped with 5SHY3545L0010 IGCT modules control the main mill motors and compressor drives. The high current capacity and low switching losses of the IGCT topology make it ideal for the sustained high-torque, variable-speed demands of these applications. The drive’s ability to regenerate braking energy back to the supply network also contributes to measurable operational stability in reversing mill applications.

Oil, Gas, and Petrochemical: Offshore platforms and onshore refineries rely on ACS6000 drives for large pump and compressor motor control. In these environments, the reliability of the IGCT module is paramount — an unplanned drive trip can trigger a plant-wide shutdown with significant safety and financial consequences. The 5SHY3545L0010’s press-pack construction and water-cooled thermal management ensure stable operation in the high-ambient-temperature, vibration-prone environments typical of process plant motor control centers.

Power Generation and Utilities: In hydroelectric and thermal power stations, ACS6000 drives are used for pump-turbine speed control and boiler feed pump drives. The IGCT module’s ability to handle the high fault currents associated with grid-connected applications — combined with the drive’s built-in protection functions — makes the 5SHY3545L0010 a trusted component in utility-grade automation systems.

Water and Wastewater Treatment: Large municipal water treatment facilities use ACS6000 drives to control high-power pumping stations. The energy efficiency gains from variable-speed pump control, enabled by the low-loss IGCT switching technology, translate directly into reduced operating costs over the multi-decade lifecycle of these installations.

Mining and Minerals Processing: Conveyor drives, ball mill drives, and hoisting systems in underground and open-pit mining operations demand the highest levels of drive reliability. The 5SHY3545L0010 IGCT module, as the core switching element in ACS6000 drives deployed in these applications, must withstand frequent load transients, dusty environments (managed by the sealed cabinet design), and extended maintenance intervals. system integration of the drive within the mine’s automation network — via PROFIBUS or Ethernet-based protocols — enables remote diagnostics and predictive maintenance scheduling.

Product Compatibility FAQ

Q1: Is the 5SHY3545L0010 directly interchangeable with other 5SHY-series IGCT modules in the ACS6000 platform?
The 5SHY series encompasses multiple current and voltage ratings. While the physical press-pack form factor is similar across the range, the 5SHY3545L0010 is specifically rated and matched to the ACS6000 power stack configuration it was designed for. Substituting a different 5SHY variant without verifying the gate drive parameters, snubber circuit values, and thermal interface specifications can result in improper gate drive operation or thermal runaway. Always cross-reference the ACS6000 hardware manual and the specific drive’s bill of materials before substituting IGCT modules. Our technical team can assist with compatibility verification prior to shipment.

Q2: What commissioning steps are required after replacing the 5SHY3545L0010 in an operational ACS6000 drive?
After physical installation — including correct torque on the press-pack clamping assembly, verified thermal interface compound application, and reconnection of the gate drive cables — the ACS6000 must undergo a gate drive integrity test using the CDP312R panel or the DriveWindow commissioning software. This test verifies gate turn-on and turn-off energy, checks for gate-cathode short circuits, and confirms that the fiber-optic DDCS communication between the GVC750BE101 gate unit and the AMC control board is error-free. A no-load power-up sequence followed by a controlled ramp to rated speed under load should be performed before returning the drive to full production service. All commissioning records should be retained for warranty and maintenance documentation purposes.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation provided with the 5SHY3545L0010 covers manufacturing defects and premature failure under normal operating conditions as specified in the ACS6000 hardware documentation. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or failure of associated components such as the gate drive unit or cooling system. For long-term maintenance planning, we recommend establishing a critical spares strategy that includes at least one verified spare IGCT module per drive train, with periodic inspection of the module’s clamping torque and thermal interface condition. Our team provides post-warranty technical support and can source replacement modules with full traceability documentation to support your plant’s maintenance management system.
