ABB 5SXE05-0151 IGCT Module ACS6000

ABB 5SXE05-0151 IGCT Module for ACS6000 Automation

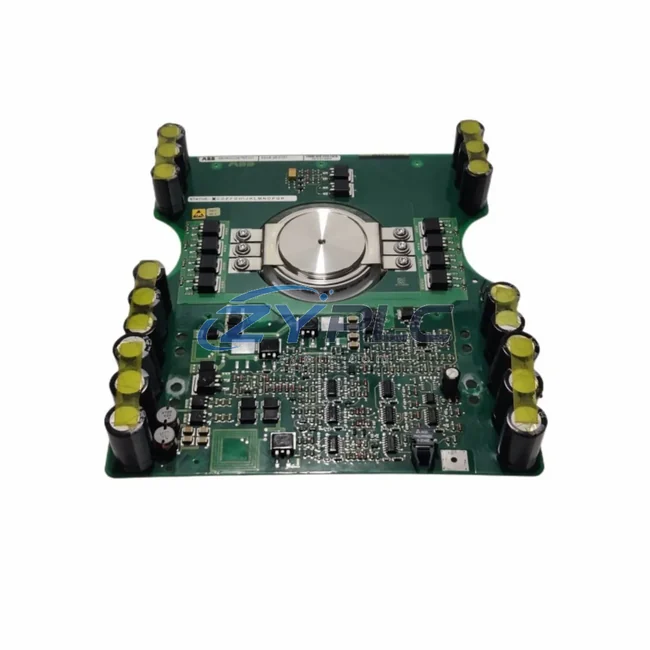

The ABB 5SXE05-0151 (full SKU: 5SXE05-0151 3BHB003387R0101) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered for the ABB ACS6000 medium-voltage variable speed drive platform. Designed for demanding industrial environments where energy efficiency, motor control precision, and production continuity are non-negotiable, this IGCT module serves as the core power switching element that directly governs how effectively electrical energy is converted into controlled mechanical output.

In modern manufacturing and process industries — from cement plants and steel mills to water treatment facilities and marine propulsion systems — the ability to regulate motor speed with minimal unplanned downtime is a key competitive advantage. The 5SXE05-0151 delivers exactly that: ultra-low switching losses, high current handling capability, and robust thermal performance that translates directly into measurable reductions in plant operating load and operating cost.

Product Specification Table

System Compatibility and Application

The 5SXE05-0151 does not operate in isolation — it is the power heart of a tightly integrated automation ecosystem. In a typical ACS6000-based drive system, the IGCT module works in concert with the ABB ACS6000 Gate Unit, which provides the precise gate drive signals that control turn-on and turn-off timing, directly influencing switching efficiency and harmonic distortion levels. The gate unit’s accuracy is what allows the 5SXE05-0151 to achieve its characteristically low on-state losses compared to conventional IGBT-based alternatives at medium voltage.

At the control layer, the ABB AC800M PLC (such as the PM866 or PM891 controller modules) orchestrates the overall drive strategy — managing speed references, torque limits, and energy recovery sequences. The AC800M communicates with the ACS6000 drive via PROFIBUS-DP or PROFINET IO, enabling real-time closed-loop motor control that adapts dynamically to load changes on the production line, preventing unplanned downtime during partial-load or idle conditions.

On the measurement side, ABB CM-series power monitoring relays and M2M energy meters installed upstream of the drive provide continuous visibility into active power draw, power factor, and harmonic content. This data feeds back into the control system, allowing operators to detect efficiency degradation — often an early indicator of IGCT module wear or cooling system issues — before it escalates into unplanned downtime.

The drive’s DC link is supported by ABB capacitor bank assemblies specific to the ACS6000 cabinet, which buffer energy during regenerative braking events. When the connected motor decelerates — common in crane, hoist, or compressor applications — the kinetic energy is recovered back into the DC bus rather than dissipated as heat, a process the 5SXE05-0151’s bidirectional switching capability makes possible.

For I/O integration, ABB S800 I/O modules (such as the AI810 analog input or DI810 digital input modules) connected to the AC800M gather field signals from temperature sensors, vibration monitors, and flow meters distributed across the driven equipment. This sensor data enables the control system to implement adaptive speed profiles — running motors only as fast as the process demands — which is one of the most impactful maintenance planning strategies available in variable-speed drive applications.

The ABB Panel Builder 800 HMI or compatible CP600 operator panels provide the human interface layer, displaying real-time operating load trends, drive status, and alarm histories. Operators can monitor kWh consumption per production batch, compare against baseline targets, and identify process segments where speed optimization can yield further operational stability.

Maintenance and Replacement Notes

Consider a cement plant running large raw mill or kiln fan motors at fixed speed. Without variable speed control, the motor runs at full power regardless of actual airflow demand — a significant source of wasted energy. By deploying the ACS6000 drive equipped with the 5SXE05-0151 IGCT module, the plant can modulate fan speed in direct response to process demand signals. A 20% reduction in fan speed, for example, translates to approximately 49% reduction in power consumption due to the affinity laws governing centrifugal loads. Over a year of continuous operation, this single optimization can save hundreds of thousands of operating-hours.

In steel rolling mills, where large synchronous or induction motors drive roughing and finishing stands, the 5SXE05-0151 enables precise torque control during acceleration and deceleration phases. This not only reduces peak energy demand — which directly impacts electricity tariff charges — but also reduces mechanical stress on gearboxes, couplings, and roll bearings, extending their service life and reducing maintenance intervals. Fewer unplanned stops mean higher overall equipment effectiveness (OEE) and better production line throughput.

For water and wastewater treatment facilities operating large pump stations, the IGCT module’s ability to support soft-start and variable-flow operation eliminates the water hammer effects and pressure surges associated with across-the-line motor starting. This protects pipeline infrastructure while simultaneously reducing the energy consumed during the high-inrush starting period. Combined with the ACS6000’s built-in maintenance planning algorithms, the 5SXE05-0151 helps pump stations achieve and maintain optimal operating points across varying demand conditions throughout the day.

From a maintenance perspective, the 5SXE05-0151 is designed for straightforward replacement within the ACS6000 cabinet. Each unit undergoes full functional testing and load simulation prior to shipment, ensuring that the replacement module performs identically to the original factory specification. With a warranty terms confirmed during quotation covering both parts and verified performance, procurement teams can plan replacements with confidence, avoiding the costly uncertainty of sourcing untested surplus components.

Product Sourcing FAQ

Q1: How much energy can the ABB 5SXE05-0151 IGCT module help save in a typical industrial application?
A: The operational stability depend on the application type and load profile, but variable-speed drive systems using IGCT technology like the 5SXE05-0151 typically achieve 20–50% energy reduction compared to fixed-speed motor operation on variable-torque loads such as fans, pumps, and compressors. The IGCT’s low switching losses also contribute to higher overall drive efficiency — often exceeding 98% — compared to alternative power switching technologies at medium voltage levels.

Q2: Is the 5SXE05-0151 compatible with my existing ACS6000 drive cabinet?
A: The 5SXE05-0151 (3BHB003387R0101) is specifically designed for the ABB ACS6000 medium-voltage drive platform. Compatibility depends on your specific ACS6000 cabinet configuration, firmware version, and gate unit type. We recommend verifying the exact drive serial number and existing IGCT part number before ordering. Our technical team can assist with cross-referencing to confirm fitment.

Q3: What is the testing and quality assurance process before shipment?
A: Every 5SXE05-0151 unit is functionally tested prior to shipment, including gate trigger response verification, forward voltage drop measurement, and insulation resistance checks. Units are shipped with test documentation. The warranty terms confirmed during quotation covers manufacturing defects and verified performance deviations from ABB’s published specifications, giving you assurance of operational reliability from day one of installation.

Q4: What should I consider when planning a replacement to minimize production downtime?
A: Plan the replacement during a scheduled maintenance window. Ensure the ACS6000 drive is fully de-energized and DC link capacitors are discharged before module removal — this typically requires a minimum 15-minute wait after drive shutdown. Have the gate unit and fiber optic connections inspected during the same maintenance event. Keeping a spare 5SXE05-0151 in inventory is recommended for critical production lines where unplanned downtime carries high cost. Our team can support with lead time planning and stock reservation for high-priority customers.
