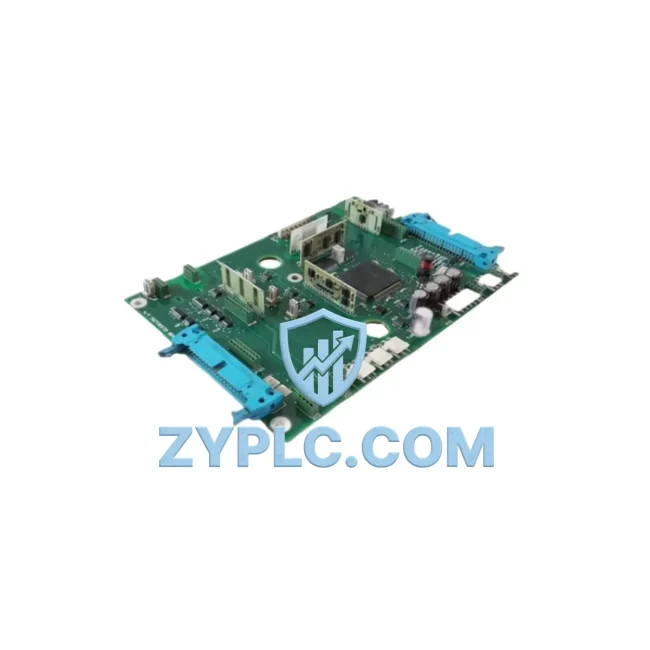

ABB 61336125G SDCS-CON-1 Industrial Network Interface for SDCS Systems

ABB 61336125G SDCS-CON-1: Industrial Data Link for Smart Factory Drive Networks

The ABB 61336125G SDCS-CON-1 is a high-performance DC drive control board engineered for the ABB SDCS series of industrial DC drive systems. Designed to serve as the intelligence core of variable-speed DC motor control, this control board enables seamless data exchange between field-level drive hardware and upper-level automation systems including PLCs, SCADA platforms, HMI terminals, and edge computing gateways. In modern smart factory environments where real-time data visibility and network-level integration are non-negotiable, the SDCS-CON-1 delivers the communication backbone that keeps production lines transparent, responsive, and continuously optimized.

At its core, the 61336125G control board manages the closed-loop regulation of DC motor armature current and speed feedback, while simultaneously interfacing with the broader automation network. Whether deployed in paper mills, steel rolling lines, crane systems, extruder drives, or winding machines, this board ensures that drive-level signals — including speed reference, torque demand, fault status, and diagnostic data — are accurately transmitted across the control architecture without latency or data loss.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory deployment, the ABB SDCS-CON-1 (61336125G) sits at the intersection of field-level drive hardware and plant-wide automation networks. The data flow begins at the motor and encoder level, where speed and current feedback signals are captured by the SDCS-CON-1’s onboard regulation circuits. These signals are processed in real time and made available to the upstream control layer via the ABB DDCS fiber optic communication link — a deterministic, noise-immune protocol purpose-built for industrial drive environments.

At the PLC layer, an ABB AC500 PLC or Siemens S7-300/S7-400 controller acts as the master, issuing speed references and torque limits to the SDCS-CON-1 over the DDCS network. The control board executes these commands with millisecond-level response times, ensuring tight synchronization across multi-drive systems such as those found in coordinated winding lines or multi-motor crane applications. For sites requiring PROFIBUS DP integration, the ABB SDCS-COM-8 PROFIBUS adapter can be mounted directly onto the SDCS drive chassis, extending the SDCS-CON-1’s connectivity to Siemens SIMATIC or Schneider Modicon PLC platforms without additional gateways.

Remote I/O expansion is handled through ABB S800 I/O modules or compatible third-party remote I/O racks, which feed process signals — including temperature sensors, pressure transmitters, and limit switches — into the control loop managed by the SDCS-CON-1. These field signals are aggregated and forwarded upstream to Wonderware InTouch or Ignition SCADA platforms via OPC-DA/OPC-UA gateways, enabling operators to monitor armature current, motor speed, drive temperature, and fault history from centralized control rooms or mobile HMI terminals.

For HMI-level visualization, ABB CP600 operator panels or Siemens SIMATIC HMI TP700 displays connect to the drive network to present real-time speed curves, torque trends, and alarm logs. When a fault condition is detected — such as overcurrent, encoder loss, or communication timeout — the SDCS-CON-1 generates a structured fault code that propagates through the DDCS link to the PLC, triggers an alarm on the HMI, and logs the event in the SCADA historian for post-event analysis.

At the edge computing layer, an ABB Edge Controller or Moxa industrial gateway can aggregate drive data from multiple SDCS-CON-1 nodes across a production line, packaging the data into MQTT or REST API payloads for transmission to cloud-based MES or ERP systems. This architecture enables plant managers to track OEE (Overall Equipment Effectiveness), schedule predictive maintenance based on drive health indicators, and remotely adjust process parameters without dispatching field technicians — a critical capability for geographically distributed industrial sites.

Power supply stability for the SDCS drive system is maintained by ABB CP-E series DIN rail power supplies, which provide regulated 24VDC to the control board logic circuits and I/O interfaces, ensuring that communication integrity is preserved even during mains voltage fluctuations common in heavy industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial installations is protocol fragmentation — where DC drives, PLCs, remote I/O systems, and SCADA platforms each speak different communication languages, creating data silos that prevent real-time visibility and coordinated control. The ABB 61336125G SDCS-CON-1 directly addresses this challenge by serving as a protocol-aware control node within the SDCS drive architecture.

Sites that previously relied on hardwired analog speed references and discrete fault signals can migrate to structured digital communication using the DDCS fiber optic link, eliminating the signal degradation and noise susceptibility inherent in long analog cable runs across large factory floors. For facilities requiring integration with PROFIBUS DP or DeviceNet networks — common in automotive assembly, chemical processing, and mining applications — the SDCS-CON-1’s adapter slot architecture allows fieldbus connectivity to be added without replacing the drive hardware, protecting existing capital investment while enabling network-level data access.

Remote monitoring and diagnostics represent another critical value dimension. With the SDCS-CON-1 connected to a SCADA system via an OPC server or fieldbus gateway, maintenance engineers can remotely interrogate drive parameters, review fault logs, and perform parameter adjustments from engineering workstations located anywhere on the plant network — or even remotely via VPN-secured connections. This capability dramatically reduces mean time to repair (MTTR) by enabling pre-diagnosis before a technician is dispatched to the field.

Production line transparency is further enhanced by the SDCS-CON-1’s ability to expose real-time process variables — motor speed, armature current, field current, and drive temperature — to MES systems for production tracking and quality assurance. In paper and printing applications, for example, precise speed synchronization data from multiple SDCS-CON-1 nodes can be used to detect web tension anomalies before they result in material breaks, reducing waste and unplanned downtime.

System scalability is a built-in advantage of the SDCS architecture. As production capacity expands, additional SDCS drives equipped with SDCS-CON-1 control boards can be added to the DDCS ring network without reconfiguring the existing nodes, allowing the automation system to grow incrementally alongside the physical plant.

Every ABB 61336125G SDCS-CON-1 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication interface integrity, I/O channel operation, and firmware version compatibility. Units are shipped with full 12-month warranty coverage, supported by our technical team for installation guidance, parameter configuration, and fault diagnosis throughout the warranty period.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SDCS-CON-1 (61336125G) support natively?
The SDCS-CON-1 natively supports ABB’s DDCS (Distributed Drive Control System) fiber optic protocol for high-speed, deterministic communication within the SDCS drive family. For integration with PROFIBUS DP, DeviceNet, or Modbus RTU networks, optional fieldbus adapter modules such as the SDCS-COM-8 can be installed in the drive’s adapter slot, extending connectivity to third-party PLC and SCADA platforms without requiring additional external gateways.

Q2: How does the SDCS-CON-1 ensure network stability in electrically noisy industrial environments?
The DDCS fiber optic communication link used by the SDCS-CON-1 is inherently immune to electromagnetic interference (EMI) generated by high-power motor drives, welding equipment, and variable frequency drives commonly found in heavy industrial sites. The fiber optic medium eliminates ground loop issues and provides galvanic isolation between drive nodes, ensuring stable, error-free data transmission even in environments with significant electrical noise.

Q3: Can the ABB 61336125G SDCS-CON-1 be integrated with modern SCADA and HMI systems?
Yes. The SDCS-CON-1 integrates with SCADA platforms such as Wonderware, Ignition, and Siemens WinCC via OPC-DA or OPC-UA servers connected to the DDCS or fieldbus network. HMI terminals from ABB, Siemens, and Schneider Electric can display real-time drive parameters including speed, current, torque, and fault status. For cloud-connected smart factory architectures, edge gateways can bridge DDCS data to MQTT or REST API endpoints for MES and ERP integration.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every ABB 61336125G SDCS-CON-1 supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes verification of all digital and analog I/O channels, DDCS communication link integrity, onboard regulation circuit functionality, and firmware version confirmation. Units are packaged in anti-static protective materials and shipped via DHL or FedEx with full tracking to ensure safe delivery to your facility.
