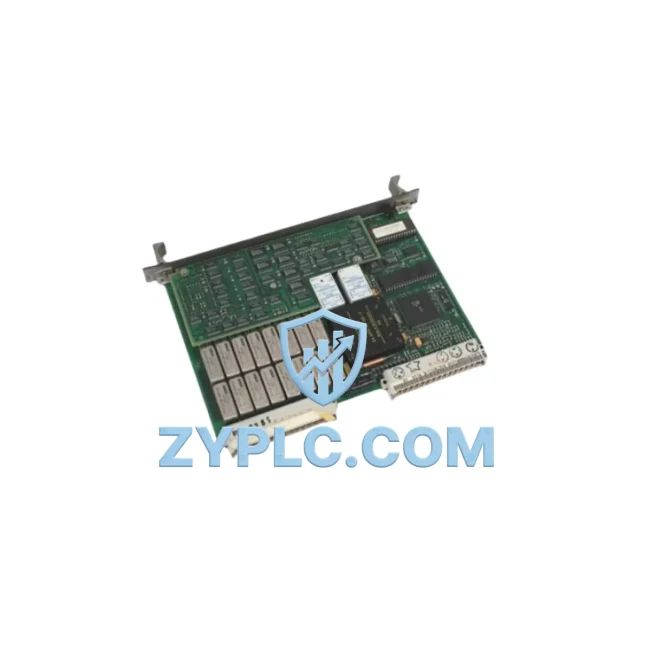

ABB 81ET03 GJR2389800R1210: Industrial Data Link for AC500 Temperature Networks

The ABB 81ET03 GJR2389800R1210 is a high-precision temperature input module engineered for the ABB AC500 PLC platform, delivering reliable multi-channel RTD and thermocouple signal acquisition at the field level. Designed for demanding industrial environments, this module serves as a critical node in the smart factory data chain — converting raw thermal signals from sensors and transmitters into structured process data that flows seamlessly through the AC500 backplane bus into the controller, SCADA layer, and enterprise MES systems.

In modern automated production lines, temperature monitoring is not merely a safety function — it is a real-time data source that drives process optimization, predictive maintenance, and energy efficiency. The 81ET03 GJR2389800R1210 addresses this need by providing stable, low-latency signal acquisition with high channel density, reducing wiring complexity while maximizing data fidelity across the entire control network.

Network Communication Table

Connected Automation Data Flow

The ABB 81ET03 GJR2389800R1210 sits at the foundation of a layered industrial data architecture. At the field level, temperature sensors — including Pt100 RTDs mounted on motor windings, heat exchangers, and reactor vessels — feed analog signals directly into the 81ET03’s input channels. The module performs on-board signal conditioning and analog-to-digital conversion, then transmits structured process values across the AC500 internal backplane bus to the host CPU module, such as the ABB PM591-ETH or PM595 controller.

From the CPU, data is forwarded upstream via Modbus TCP or PROFINET — supported through communication modules like the ABB CM572-DP PROFIBUS DP master or the CM589-PNIO PROFINET I/O controller — to SCADA platforms such as ABB System 800xA, Wonderware, or Ignition. HMI panels, including the ABB CP600 series operator terminals, display live temperature trends and alarm states, enabling operators to respond immediately to process deviations.

For distributed plant topologies, the 81ET03 can be deployed in remote I/O racks connected via the CS31 field bus, extending the AC500 network across large factory floors without signal degradation. Remote I/O couplers such as the ABB DC532 digital coupler or AI523 analog input modules work alongside the 81ET03 in the same rack, consolidating multi-parameter field data into a single communication trunk back to the PLC cabinet.

Variable frequency drives — including the ABB ACS880 series — receive temperature feedback from the 81ET03 via the PLC logic to implement motor thermal protection routines, automatically reducing drive output when winding temperatures approach critical thresholds. This closed-loop thermal management strategy is essential in continuous process industries such as petrochemicals, food processing, and pharmaceutical manufacturing.

At the network edge, industrial Ethernet switches — such as the ABB AF series managed switches — aggregate data from multiple AC500 stations and route it to the plant historian or cloud-based analytics platform, completing the data journey from raw sensor signal to enterprise-level insight. The 81ET03 GJR2389800R1210 is therefore not simply an input card — it is the origin point of a critical industrial data stream.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — temperature readings locked inside standalone controllers, unable to reach SCADA dashboards, maintenance systems, or production planning tools. The ABB 81ET03 GJR2389800R1210 directly addresses this problem by integrating natively into the AC500 ecosystem, which supports open communication standards including Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, and EtherNet/IP through its modular CPU and communication card architecture.

For sites migrating from older DCS or relay-based control systems, the 81ET03 provides a straightforward upgrade path: existing RTD and thermocouple wiring can be reconnected to the module’s terminals without sensor replacement, while the AC500 CPU handles protocol conversion and data forwarding to modern SCADA and MES platforms. This eliminates the need for costly parallel wiring infrastructure or proprietary protocol converters.

Remote diagnostics are fully supported through the AC500 platform’s built-in web server and OPC UA server capabilities, allowing maintenance engineers to monitor channel status, wire-break alarms, and out-of-range conditions from any networked workstation — without physical access to the control cabinet. This capability is particularly valuable for unmanned substations, offshore platforms, and geographically distributed process plants.

Production line transparency is further enhanced by the module’s ability to timestamp temperature events at the PLC scan level, providing accurate process records for quality audits, regulatory compliance, and root-cause analysis. When integrated with ABB’s System 800xA or third-party SCADA platforms, the 81ET03’s data contributes to real-time OEE dashboards, predictive maintenance algorithms, and energy consumption analytics — transforming raw temperature data into actionable operational intelligence.

System expansion is equally straightforward: additional 81ET03 modules can be added to the AC500 rack or CS31 remote I/O bus without modifying the existing network topology, supporting phased capacity increases as production requirements grow.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 81ET03 GJR2389800R1210 support for SCADA integration?
The 81ET03 communicates natively over the AC500 internal backplane bus and CS31 field bus. When paired with AC500 communication modules such as the CM589-PNIO or CM572-DP, the system supports PROFINET, PROFIBUS DP, Modbus TCP, and Modbus RTU — enabling direct integration with all major SCADA platforms including ABB System 800xA, Siemens WinCC, Wonderware InTouch, and Ignition by Inductive Automation.

Q2: How does the module handle communication latency in real-time temperature monitoring applications?
The 81ET03 performs synchronous data acquisition within the AC500 CPU scan cycle, typically 1–10 ms depending on CPU configuration and rack size. This ensures that temperature values are updated in the SCADA historian with minimal latency, supporting alarm response times well within the requirements of most process control and safety instrumented system (SIS) applications.

Q3: Is the ABB 81ET03 GJR2389800R1210 compatible with existing AC500 installations, and can it be added without system downtime?
Yes. The 81ET03 is fully compatible with all AC500 CPU generations (PM571 through PM595) and can be hot-inserted in systems that support hot-swap I/O expansion. For CS31 remote I/O deployments, additional modules can be added to the bus during scheduled maintenance windows with minimal configuration changes in the AC500 programming environment (Automation Builder / PS501 Control Builder Plus).

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ABB 81ET03 GJR2389800R1210?
Every ABB 81ET03 GJR2389800R1210 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes functional verification testing prior to shipment. Units are inspected for physical integrity, communication bus response, and channel continuity. Fast international logistics via DHL and FedEx ensure delivery within 3–7 business days to most destinations, with full export documentation and compliance support included.
