ABB 83SR07F-E GJR2392700R1210 Industrial Network Interface for AC500 Systems

ABB 83SR07F-E GJR2392700R1210: Industrial Data Link for AC500 Smart Factory Systems

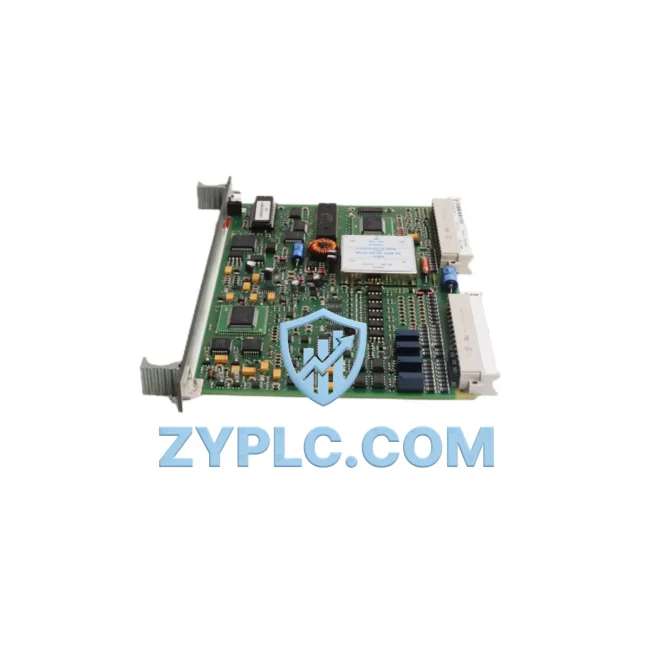

The ABB 83SR07F-E (GJR2392700R1210) is a high-performance communication and control module engineered for the ABB AC500 PLC platform — one of the most widely deployed modular automation controllers in process manufacturing, power distribution, and discrete production environments. Designed to serve as a critical node in the industrial data chain, this module bridges field-level devices and upper-level supervisory systems, enabling seamless, real-time data exchange across multi-protocol factory networks.

In modern smart factory architectures, the integrity of the data link between sensors, actuators, PLCs, and SCADA systems determines the responsiveness and reliability of the entire production line. The ABB 83SR07F-E GJR2392700R1210 is purpose-built to anchor this link within AC500-based control topologies, supporting protocol-transparent communication across Modbus RTU/TCP, PROFIBUS DP, and Industrial Ethernet — three of the most prevalent industrial communication standards in global automation infrastructure.

Network Communication Table

Connected Automation Data Flow

Within a typical AC500-based automation cell, the ABB 83SR07F-E GJR2392700R1210 operates at the intersection of field instrumentation and supervisory control. Signal acquisition begins at the sensor layer — pressure transmitters, flow meters, and proximity switches feed raw process data into ABB S500 remote I/O modules via distributed I/O racks. These signals are aggregated and pre-processed before being passed upstream through the AC500 backplane to the ABB PM573-ETH or PM591-ETH CPU modules, where the 83SR07F-E communication interface handles protocol encapsulation and network routing.

On the PROFIBUS DP segment, the module communicates directly with ABB ACS880 variable frequency drives and ACS580 general-purpose inverters, retrieving real-time speed references, torque feedback, and fault status registers at cyclic scan rates well within the demands of closed-loop motion control. Simultaneously, the Modbus TCP/IP channel connects to ABB CP600 HMI panels and third-party SCADA gateways, delivering live process variables, alarm states, and production counters to operator workstations and MES platforms.

For edge connectivity, the Industrial Ethernet port enables integration with ABB Ability™ Edge computing gateways, allowing the 83SR07F-E to participate in IIoT data pipelines — forwarding structured JSON payloads to cloud analytics platforms for predictive maintenance and OEE dashboards. In multi-drop Modbus RTU configurations, the RS-485 interface supports daisy-chained connections to ABB EL1000 series energy meters and intelligent motor control centers, consolidating power quality data alongside process telemetry in a single unified network view.

The module also interfaces with ABB AC500-eCo compact PLCs in satellite control panels, extending the reach of the central AC500 system to remote skids and auxiliary equipment without requiring additional gateway hardware. This architecture reduces network latency, eliminates protocol translation bottlenecks, and ensures that alarm events propagate from field device to SCADA display in under 100 milliseconds — a critical requirement for safety-instrumented systems and high-speed packaging lines.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of legacy serial networks alongside modern Ethernet-based control systems. Older PROFIBUS DP segments, Modbus RTU loops, and proprietary fieldbus installations create data silos that prevent plant-wide visibility and complicate system expansion. The ABB 83SR07F-E GJR2392700R1210 directly addresses this fragmentation by acting as a multi-protocol bridge within the AC500 platform — eliminating the need for standalone protocol converters and reducing the number of network nodes that must be individually managed and maintained.

Remote monitoring is another area where this module delivers measurable value. By exposing all connected field device data over Industrial Ethernet, maintenance engineers can access live diagnostics, historical trend data, and device health indicators from any networked workstation — or via secure VPN from off-site locations. This capability is particularly valuable for unmanned substations, remote pump stations, and geographically distributed production facilities where on-site intervention is costly and time-consuming.

Production line transparency is achieved through tight integration with SCADA and MES platforms. The 83SR07F-E supports standard OPC-UA and Modbus TCP data models, making it straightforward to configure data acquisition in systems such as Wonderware, Ignition, or WinCC. Real-time KPIs — including cycle time, reject rate, energy consumption per unit, and equipment availability — can be surfaced on operator dashboards within minutes of commissioning, without custom middleware development.

System expansion is equally well-supported. The modular architecture of the AC500 platform means that additional ABB S500 I/O modules — digital input, analog output, temperature measurement, and high-speed counter variants — can be added to the rack without disrupting existing network configurations. The 83SR07F-E automatically recognizes new I/O nodes during hot-configuration updates, minimizing planned downtime during capacity expansions.

Every unit supplied by ZYPLC undergoes pre-shipment functional verification, including communication port continuity checks, protocol handshake validation, and firmware version confirmation. Stock is maintained in our warehouse for immediate dispatch, with DHL and FedEx express options available for urgent project requirements. All units are covered by a 12-month warranty from the date of shipment.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the ABB 83SR07F-E GJR2392700R1210 on a PROFIBUS DP network?
A: In standard PROFIBUS DP configurations with the AC500 CPU, cyclic data exchange latency is typically 1–5 ms per scan cycle, depending on the number of slaves and the configured baud rate (up to 12 Mbps). For time-critical applications, the module supports equidistant bus cycle settings to minimize jitter.

Q2: Is the ABB 83SR07F-E compatible with third-party SCADA systems and HMI platforms?
A: Yes. The module’s Modbus TCP/IP and Industrial Ethernet interfaces are fully compatible with major SCADA platforms including Siemens WinCC, AVEVA Wonderware, Inductive Automation Ignition, and GE iFIX. Standard Modbus register mapping and OPC-UA server functionality ensure straightforward integration without proprietary drivers.

Q3: Can the ABB 83SR07F-E GJR2392700R1210 be used to expand an existing AC500 network without system downtime?
A: The AC500 platform supports online configuration changes for I/O expansion and communication parameter updates. In most cases, adding the 83SR07F-E to an existing rack or modifying its network parameters can be performed without a full system restart, subject to the specific CPU firmware version and project configuration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this module?
A: All ABB 83SR07F-E GJR2392700R1210 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment testing including communication port verification, protocol handshake validation, and visual inspection for physical integrity. In-stock units are available for same-day or next-day dispatch via DHL or FedEx express.
