ABB 88VU01B-E Coupling Module Advant

ABB 88VU01B-E Coupling Module for Advant Automation

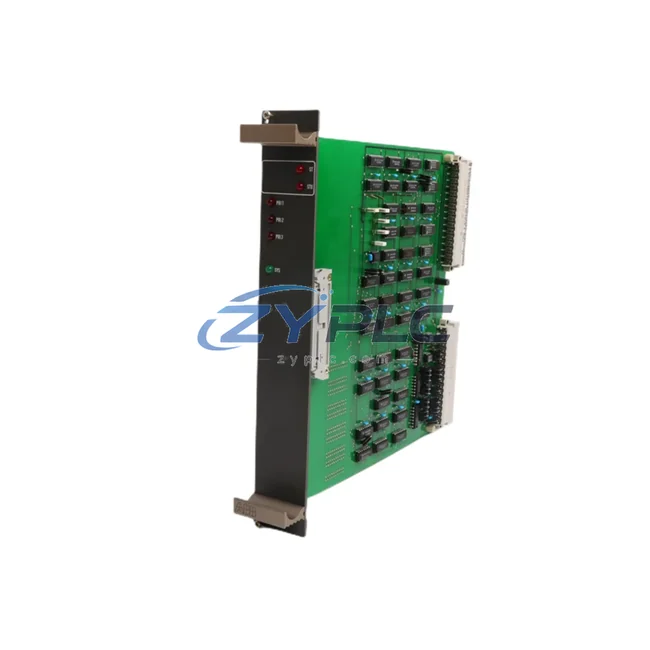

The ABB 88VU01B-E (part number GJR2326500R1011) is a high-performance coupling module engineered for the ABB Advant series distributed control architecture. Designed to minimize signal latency and reduce unnecessary power draw across interconnected control nodes, this module plays a critical role in industrial automation — enabling factories to tighten control loops, reduce idle-state consumption, and improve overall equipment effectiveness (OEE) without costly infrastructure overhauls.

In modern production environments where energy cost per unit of output is under constant scrutiny, the quality of inter-module communication directly affects drive efficiency and motor control precision. The 88VU01B-E ensures clean, low-loss signal coupling between Advant controller nodes and field-level devices, reducing retransmission overhead and the associated micro-energy penalties that accumulate across high-cycle production lines.

Product Specification Table

System Compatibility and Application

The 88VU01B-E is most effective when deployed as part of a cohesive, energy-conscious control architecture. In a typical Advant-based system, this coupling module interfaces directly with the ABB DSBC 176 bus controller and ABB DSMB 127 memory board, forming the backbone of a distributed I/O network that feeds real-time process data to the ABB AC 450 controller. This tight integration allows the controller to execute precise motor speed commands via ABB ACS800 series variable frequency drives (VFDs), which are among the most energy-efficient drive platforms available for industrial motor control.

On the field side, analog and digital signals from process sensors are aggregated through ABB DSAI 130 analog input modules and ABB DSDO 115 digital output modules, both of which communicate through the same Advant coupling infrastructure supported by the 88VU01B-E. Accurate, low-latency I/O data means the drive system can respond to load changes in milliseconds — preventing the energy-wasting overshoot and hunting behavior common in poorly coupled control loops.

For power quality monitoring, the architecture is often complemented by ABB M2M energy meters or ABB B23 power measurement units, which provide per-circuit consumption data that feeds back into the control strategy. When the 88VU01B-E maintains clean coupling integrity, these measurement devices deliver more consistent readings, enabling better demand-side management decisions at the plant level.

HMI visibility is typically provided through ABB Panel 800 or compatible operator terminals, giving line supervisors real-time insight into drive states, operating load trends, and alarm conditions — all dependent on the reliable signal flow that the 88VU01B-E coupling module sustains.

Maintenance and Replacement Notes

In continuous process industries — including chemical, pulp and paper, water treatment, and food manufacturing — the Advant platform with the 88VU01B-E coupling module has demonstrated measurable contributions to energy reduction. The mechanism is straightforward: when coupling integrity is compromised by aging or failed modules, controllers compensate by increasing polling frequency and command retries, which in turn causes drives to receive noisier setpoint signals. The result is increased motor current draw, elevated heat generation, and accelerated bearing wear — all of which translate directly into higher energy bills and unplanned downtime.

Replacing a degraded coupling module with a tested 88VU01B-E restores signal fidelity, allowing the ABB ACS800 or ACS550 VFDs to operate at their designed efficiency curves. In motor-heavy applications such as pump and fan control, even a 2–3% improvement in drive efficiency across multiple motors can yield significant annual operational stability at scale.

Beyond energy, the 88VU01B-E supports predictive maintenance strategies by ensuring that condition monitoring data — vibration, temperature, and load current signals routed through the Advant I/O network — reaches the controller without corruption. Clean data enables earlier detection of mechanical degradation, reducing both emergency repair costs and the energy penalty of running equipment in a deteriorating state.

Production line throughput also benefits: tighter control loops enabled by reliable coupling reduce inter-cycle variability, improving line takt time consistency and reducing the energy cost per unit produced. For facilities operating under ISO 50001 maintenance planning frameworks, maintaining coupling module integrity is a low-cost, high-impact intervention point.

Every 88VU01B-E unit supplied by ZYPLC undergoes full functional testing prior to shipment, with results documented and available upon request. Stock is maintained for fast dispatch, and all units are covered by a warranty terms confirmed during quotation against defects in materials and workmanship.

Product Sourcing FAQ

Q1: How does replacing the 88VU01B-E coupling module contribute to operational stability?
A degraded coupling module introduces signal noise and retransmission overhead into the control loop. This causes VFDs such as the ABB ACS800 to receive inconsistent speed setpoints, leading to excess motor current draw. A tested replacement restores loop fidelity, allowing drives to operate at optimal efficiency and reducing unplanned downtime risk across connected motors.

Q2: Is the 88VU01B-E compatible with my existing Advant or MOD 300 system?
Yes. The 88VU01B-E (GJR2326500R1011) is designed for ABB Advant OCS and MOD 300 distributed control platforms. It is compatible with standard Advant bus architectures and interfaces with DSBC-series bus controllers and associated I/O modules without requiring firmware changes or hardware adapters.

Q3: What is the recommended replacement process and how long does it take?
Module swap-out is typically performed during a scheduled maintenance window. The 88VU01B-E is a plug-in module; replacement involves powering down the affected node, extracting the faulty module, inserting the replacement, and verifying communication status via the system HMI. Most experienced maintenance teams complete the procedure in under 30 minutes. ZYPLC recommends verifying loop integrity with a short functional test run before returning the line to full production.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
All ZYPLC-supplied 88VU01B-E modules are tested for electrical continuity, communication function, and signal coupling performance before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair with priority handling to minimize production impact.
