ABB A50-30-11 1SBL351001R8011 Contactor for A-Line

ABB A50-30-11 1SBL351001R8011 AC Contactor for A-Line

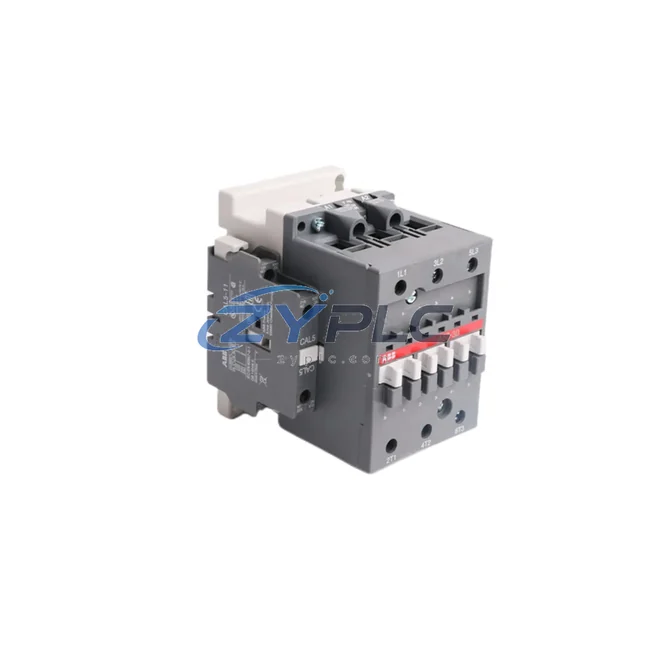

The ABB A50-30-11 (catalog reference 1SBL351001R8011) is a three-pole AC contactor engineered for seamless integration within ABB’s A-Line low-voltage switchgear and motor control architecture. Rated for demanding industrial environments, this contactor serves as a critical switching element at the motor control layer, bridging the command signals from programmable logic controllers and relay logic systems to the physical load — whether that is a pump, compressor, conveyor drive, or HVAC fan unit. Its robust construction and IEC 60947-4-1 compliance make it a preferred choice for system architects designing layered automation platforms across manufacturing, power distribution, water treatment, petrochemical, and mining applications.

In a fully integrated control system, the A50-30-11 does not operate in isolation. It functions as part of a coordinated switching and protection assembly that typically includes upstream circuit breakers such as the ABB MS116 or MS132 motor starter protector, downstream overload relays from the ABB TA series, and control wiring routed through ABB terminal blocks from the SNK or UK series. The coil voltage — available in 24V AC, 110V AC, or 230V AC configurations — is driven directly from the digital output modules of a PLC or DCS, enabling deterministic, scan-cycle-synchronized switching that is essential for process-critical applications.

From a system architecture perspective, the A50-30-11 occupies the execution layer of the automation hierarchy. Above it, the control layer may consist of ABB AC500 PLCs or third-party controllers communicating over PROFIBUS DP, PROFINET, or Modbus RTU. The I/O layer translates digital commands into coil energization signals, while the power layer — typically fed through ABB SACE Tmax or Formula series molded case circuit breakers — ensures that fault currents are interrupted before they can propagate to the contactor or the connected motor. This layered approach to system design ensures that each component, including the A50-30-11, operates within its rated envelope and contributes to overall system reliability.

Redundancy is a key consideration in high-availability installations. In dual-contactor interlocked configurations — common in reversing starter assemblies or star-delta motor starting circuits — the A50-30-11 is paired with a mechanically or electrically interlocked companion contactor, often the ABB A50-30-10 or A50-30-01 variant, to prevent simultaneous energization. The auxiliary contact block (1 NO + 1 NC as standard) provides feedback to the control system, enabling the PLC to confirm contactor state and trigger alarms or safe-state routines if a discrepancy is detected. This closed-loop confirmation is a fundamental requirement in safety-instrumented systems operating under IEC 61511 or SIL-rated architectures.

Signal flow within the motor control center (MCC) begins at the field device — a pushbutton, proximity sensor, or PLC digital output — and terminates at the contactor coil. The A50-30-11’s coil circuit is typically protected by a surge suppressor or RC snubber to prevent voltage transients from damaging the PLC output card. On the power side, the three main poles handle the load current, with the contactor’s AC-3 utilization category rating ensuring reliable make-and-break performance under inductive motor loads. The 1 NO auxiliary contact is wired into the control circuit as a self-holding contact in manual start-stop configurations, while the 1 NC contact provides interlock or alarm signaling.

For system engineers specifying components for modular MCC assemblies, the A50-30-11 is compatible with ABB’s withdrawable and fixed-mounted MCC structures. It can be mounted on standard 35mm DIN rail or directly panel-mounted, offering flexibility for both retrofit and greenfield installations. When combined with ABB’s OT series manual motor starters, AF series contactors for capacitor switching, or the ABB UMC100 universal motor controller, the A50-30-11 becomes part of a fully coordinated, type-tested assembly that simplifies engineering documentation and third-party certification.

Long-term maintenance efficiency is significantly improved when all switching devices within a control panel share a common platform. The A50-30-11’s compatibility with ABB’s A-Line accessory ecosystem — including add-on auxiliary contact blocks, surge suppressors, mechanical interlocks, and timer modules — means that field technicians can service, replace, or reconfigure the contactor without specialized tooling or extended downtime. Spare parts availability is supported by ZYPLC’s inventory management program, and all units supplied carry a warranty terms confirmed during quotation covering manufacturing defects and premature failure under rated operating conditions.

Product Specification Table

System Compatibility Notes

The A50-30-11 achieves its highest value when specified as part of a coordinated system rather than a standalone component. In a typical motor control center for a water treatment facility or manufacturing line, the following components work in concert with the A50-30-11:

• ABB MS116 / MS132 Motor Starter Protector — provides upstream short-circuit and overload protection, type-coordinated with the A50-30-11 for back-up protection class II.
• ABB TA25DU / TA42DU Thermal Overload Relay — mounted directly onto the contactor for compact assembly, providing phase-loss and overload protection with manual or automatic reset.
• ABB AC500 PLC (PM573 / PM583 CPU) — issues digital switching commands to the contactor coil via DO522 or DO532 digital output modules, enabling deterministic process control.
• ABB CP600 HMI Panel — provides operator-level visibility of contactor state via auxiliary contact feedback wired to the PLC’s digital input module (DI524).
• ABB OVR Series Surge Protective Device — installed at the MCC incoming supply to protect the contactor and downstream equipment from transient overvoltages.
• ABB SNK / UK Series Terminal Blocks — used for control wiring termination within the panel, ensuring organized and maintainable wiring layouts.
• ABB A50-30-10 / A50-30-01 Companion Contactor — used in interlocked reversing or star-delta configurations, mechanically or electrically interlocked with the A50-30-11.
• ABB CA5-10 / CA5-01 Auxiliary Contact Block — snap-on accessory to expand auxiliary contact capacity for additional feedback or interlock circuits.
• ABB RC Snubber / Surge Suppressor Module — coil-side protection to suppress inductive kickback and protect PLC output cards from voltage spikes during de-energization.
• ABB SACE Tmax T3 / T4 MCCB — upstream molded case circuit breaker providing feeder protection and isolation capability for the MCC section housing the A50-30-11.

This coordinated assembly approach reduces engineering risk, simplifies type-testing documentation, and ensures that all components are rated and tested to operate together under fault conditions — a critical requirement for installations subject to IEC 61439 panel builder standards.

Industrial Application Notes

The ABB A50-30-11 is deployed across a wide range of industrial sectors where reliable motor switching is a non-negotiable requirement:

• Manufacturing & Assembly Lines: Controls conveyor motors, robotic cell power feeds, and pneumatic compressor starters within PLC-controlled production cells. Its fast make-and-break response supports high-cycle applications without premature contact wear.
• Water & Wastewater Treatment: Switches pump motors in lift stations, filtration systems, and aeration blower assemblies. The A50-30-11’s AC-3 rating ensures reliable performance under the repetitive starting conditions typical of pump control applications.
• Power Distribution & Utilities: Used in capacitor bank switching (with appropriate derating) and auxiliary motor control within substation buildings and power plant auxiliary systems.
• Petrochemical & Oil & Gas: Integrated into Ex-rated motor control panels (with appropriate enclosure) for pump and compressor control in Zone 2 classified areas, where system reliability and component traceability are mandatory.
• Mining & Minerals Processing: Controls crusher motors, conveyor drives, and slurry pump starters in harsh environments. The A50-30-11’s robust construction and wide operating temperature range support reliable operation in dusty, high-vibration conditions.
• Metallurgy & Steel: Applied in rolling mill auxiliary drives, furnace fan motors, and cooling system pumps where continuous duty operation and rapid fault recovery are essential.
• Packaging & Food Processing: Switches motors in filling lines, labeling machines, and conveyor systems where hygienic design and compact panel layouts are prioritized.

Product Compatibility FAQ

Q1: Is the ABB A50-30-11 compatible with ABB AC500 PLC digital output modules for direct coil drive?
Yes. When the 24V AC or 24V DC coil variant is selected, the A50-30-11 can be driven directly from ABB AC500 transistor output modules (e.g., DO522, DO532) without an intermediate relay, provided the output module’s current rating exceeds the contactor’s coil inrush current. For 110V AC or 230V AC coil variants, an intermediate relay or solid-state relay is recommended to protect the PLC output card. Always install an RC snubber or varistor across the coil terminals to suppress inductive transients.

Q2: Can the A50-30-11 be used in a star-delta motor starting configuration, and what interlock method is recommended?
Yes. In a star-delta starter, the A50-30-11 typically serves as the main contactor or the delta contactor, paired with a star contactor (e.g., ABB A30 or A40 series). Mechanical interlocking using ABB’s dedicated interlock accessory is strongly recommended in addition to electrical interlock via the PLC program to prevent simultaneous energization, which would cause a phase-to-phase short circuit. The transition timer — either a dedicated timer relay or a PLC-based timer block — should be set to allow complete motor deceleration before switching from star to delta configuration.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
All ABB A50-30-11 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects, premature contact failure, and coil burnout under rated operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team. For long-term maintenance planning, ZYPLC maintains buffer stock of the A50-30-11 and its associated accessories (auxiliary contact blocks, surge suppressors, mechanical interlocks) to support planned maintenance shutdowns and emergency replacements. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to discuss consignment stock arrangements or annual supply agreements.
