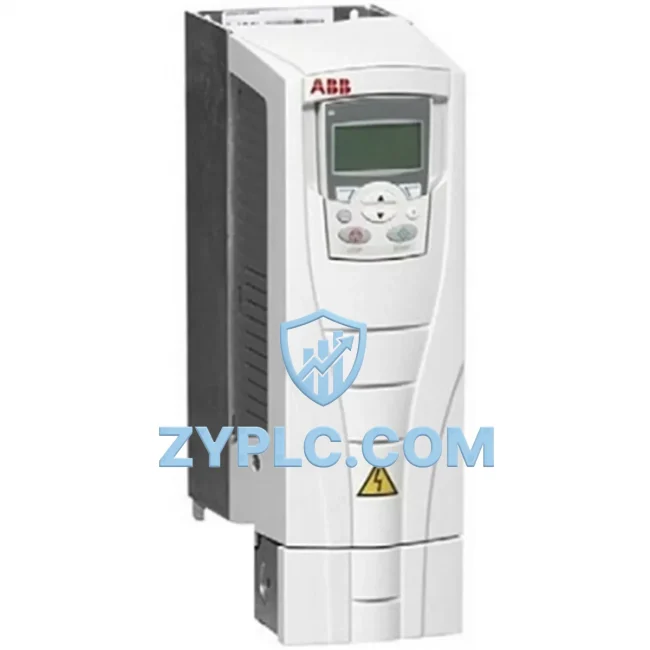

ABB ACH550-U0-125A-6+J400 AC Drive ACH550

ABB ACH550-U0-125A-6+J400 AC Drive for ACH550 Automation

The ABB ACH550-U0-125A-6+J400 is a high-performance, energy-efficient AC variable frequency drive engineered for demanding HVAC and industrial automation environments. Rated at 125A / 600V and equipped with the J400 fused disconnect option, this drive delivers precise motor speed control, measurable operational stability, and seamless integration into modern industrial control architectures. Whether deployed in air handling units, pump systems, or complex production line motor networks, the ACH550-U0-125A-6+J400 reduces unnecessary energy consumption by matching motor output to actual load demand — eliminating the inefficiencies of fixed-speed operation.

Sourced directly from authorized supply channels, every unit undergoes outgoing shipment testing before dispatch. All orders are backed by a warranty terms confirmed during quotation, with in-stock availability ensuring minimal lead times for maintenance replacements and new installations alike.

Product Specification Table

System Compatibility and Application

The ACH550-U0-125A-6+J400 is designed to operate as a core maintenance planning node within a broader industrial automation system. In a typical energy-optimized plant layout, the drive receives speed reference signals from an ABB AC500 PLC — such as the PM573-ETH CPU module — which coordinates production scheduling and load balancing across multiple motor circuits. The AC500 platform’s high-speed I/O processing ensures that speed commands are executed with minimal latency, directly reducing unplanned downtime during acceleration and deceleration cycles.

On the field level, ABB CI854A PROFIBUS DP communication adapters allow the ACH550 to exchange real-time process data with distributed I/O stations, enabling the control system to dynamically adjust motor output based on upstream sensor feedback. For facilities using BACnet/IP or Modbus TCP, the drive’s onboard communication options integrate directly with building management systems and SCADA platforms without requiring additional protocol converters.

Power quality and energy consumption are monitored upstream using ABB M2M energy meters or compatible ABB B23 series power analyzers, which log kWh consumption per motor circuit and feed data back to the control layer. This closed-loop condition monitoring architecture allows facility managers to identify inefficient operating windows, schedule preventive maintenance before failures occur, and benchmark energy performance across production shifts.

On the output side, the ACH550-U0-125A-6+J400 drives standard ABB M3BP series induction motors or IE3/IE4-class motors from compatible manufacturers. The drive’s built-in motor thermal model continuously estimates winding temperature, reducing the risk of motor burnout and extending mean time between failures. For applications requiring precise torque control, the drive can be paired with ABB ACSM1 servo drive modules or used alongside ABB ACS880 industrial drives in multi-drive cabinet configurations where coordinated axis control is required.

HMI visibility is provided through ABB CP600 operator panels or third-party touchscreen terminals connected via Modbus RTU, giving line operators real-time access to drive status, energy consumption trends, fault history, and parameter adjustment — all without requiring engineering workstation access during normal production.

Maintenance and Replacement Notes

In HVAC applications, the ACH550-U0-125A-6+J400 replaces traditional inlet vane or throttle valve control with direct motor speed regulation. A fan or pump running at 80% of full speed consumes approximately 51% of the energy required at full speed — a direct consequence of the affinity laws governing centrifugal loads. Across a facility operating multiple air handling units or chilled water pumps, deploying ACH550 drives across the motor fleet can reduce annual HVAC energy expenditure by 30–50%, depending on load profiles and operating hours.

In industrial conveyor and material handling applications, the drive’s programmable acceleration and deceleration ramps eliminate mechanical shock loads during start-stop cycles, reducing wear on gearboxes, couplings, and belt systems. This directly lowers maintenance frequency and spare parts consumption — translating into measurable reductions in total cost of ownership over a 5–10 year asset lifecycle.

The J400 fused disconnect option integrated into this unit simplifies panel wiring and reduces cabinet footprint by eliminating the need for a separate upstream disconnect switch. This is particularly valuable in retrofit projects where panel space is constrained and installation time must be minimized to reduce production downtime.

For predictive maintenance workflows, the ACH550’s onboard diagnostics — including run-time counters, fault logs, and energy consumption registers — can be polled via Modbus or PROFIBUS by the plant’s SCADA or MES system. When integrated with an ABB Ability™ Smart Sensor mounted on the driven motor, the system can detect bearing wear, rotor imbalance, and insulation degradation weeks before a failure event, allowing maintenance teams to schedule interventions during planned downtime windows rather than responding to unplanned stoppages.

Every ACH550-U0-125A-6+J400 unit shipped from our facility has passed a pre-shipment functional test covering power-up sequence, parameter initialization, and output voltage symmetry verification. Combined with the warranty terms confirmed during quotation covering manufacturing defects and component failures, this ensures that procurement teams and maintenance engineers can deploy the drive with confidence in both new installations and critical replacement scenarios.

Product Sourcing FAQ

Q1: How much energy can the ACH550-U0-125A-6+J400 save compared to a direct-on-line motor starter?
In variable torque applications such as fans and pumps, operational stability of 30–50% are typical when replacing direct-on-line starters with the ACH550 VFD. Actual savings depend on the load profile, operating hours, and the degree of speed variation required by the process. The drive’s energy optimizer function further reduces magnetizing current at partial loads, improving efficiency beyond standard V/Hz control.

Q2: Is the ACH550-U0-125A-6+J400 compatible with existing ABB AC500 PLC systems and third-party SCADA platforms?
Yes. The ACH550 series supports Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet/IP, and PROFIBUS DP communication protocols via optional fieldbus adapter modules. This makes it compatible with ABB AC500 PLCs, Siemens S7 series controllers, Schneider Electric Modicon platforms, and most SCADA systems supporting standard industrial protocols. No custom driver development is required for standard integration.

Q3: What is the recommended replacement or upgrade path if the existing drive is an older ACH550 variant without the J400 option?
The ACH550-U0-125A-6+J400 is a direct form-fit-function replacement for earlier ACH550-U0-125A-6 units. The J400 fused disconnect adds upstream protection without requiring panel redesign. Parameter sets from older ACH550 units can be uploaded via the drive’s assistant control panel or ABB Drive Composer software and transferred to the new unit, minimizing commissioning time during replacement.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Prior to shipment, each unit undergoes an outgoing functional test including power-on verification, parameter default confirmation, and output phase balance check. Units that do not pass testing are quarantined and not dispatched. Warranty claims are processed through our technical support team at plc.sales@zyplc.com.
