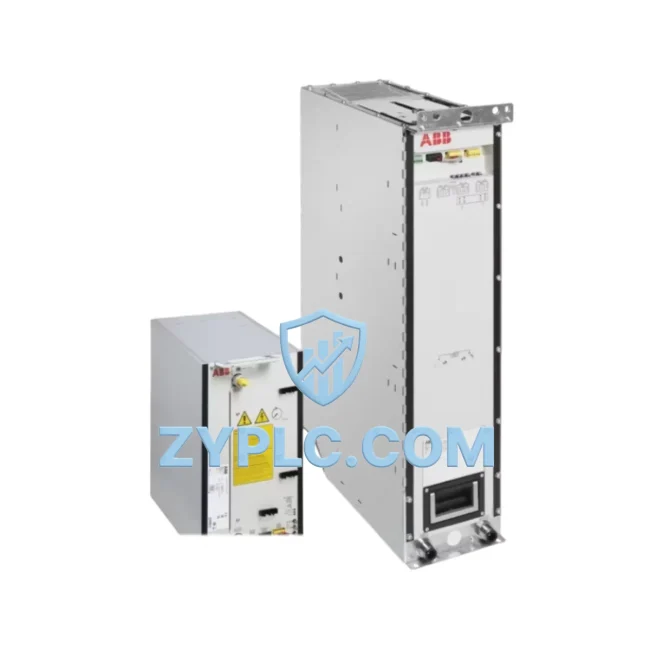

ABB ACS880-104LC-0860A-7 Inverter Module for ACS880

ABB ACS880-104LC-0860A-7 Inverter Module: Compatibility and Replacement Notes

The ABB ACS880-104LC-0860A-7 is a high-power inverter module engineered as a core drive component within the ACS880 modular drive architecture. Rather than functioning as a standalone unit, this inverter module is designed to operate as an integrated element within a layered industrial automation system — coordinating seamlessly across the control layer, I/O layer, power layer, communication network, and execution layer to deliver consistent, scalable, and redundancy-capable motor drive performance.

In modern industrial control architectures, the inverter module occupies a critical position between the DC bus power supply and the motor load. The ACS880-104LC-0860A-7 interfaces directly with the ACS880 control unit — such as the ZCU-12 or ZCU-14 control board — which manages speed reference, torque control, and protection logic. This separation of control intelligence from power conversion hardware is a hallmark of ABB’s modular drive philosophy, enabling engineers to replace, upgrade, or service the inverter section independently without disrupting the control program or system parameterization.

From a system architecture perspective, the ACS880-104LC-0860A-7 supports integration with ABB’s RDCO-02 or RDCO-04 DDCS communication adapters, enabling high-speed fiber-optic communication with master controllers, PLCs, or DCS platforms. This communication capability ensures that the inverter module participates fully in coordinated multi-drive systems — including master-follower configurations, load-sharing architectures, and synchronized multi-axis motion control applications common in paper mills, metal processing lines, and large-scale pump and fan systems.

The module is compatible with the ACS880 common DC bus architecture, allowing multiple inverter modules to share a single rectifier unit or active front end (AFE), such as the ACS880-104 AFE module. This topology significantly reduces harmonic distortion, improves energy efficiency through regenerative braking, and simplifies cabinet design by eliminating redundant rectifier stages. In conjunction with the ACS880 brake chopper unit and braking resistors, the system can handle high-inertia loads with controlled deceleration and energy dissipation.

For I/O integration, the ACS880-104LC-0860A-7 works in conjunction with ABB’s AIMA-01 I/O extension modules and FIO-01 or FIO-11 fieldbus adapter modules, enabling flexible signal routing between the drive and field instrumentation — including encoders, thermistors, digital I/O, and analog process signals. This I/O flexibility supports precise closed-loop control in demanding process applications such as extruder lines, winding machines, and compressor drives.

On the network layer, the inverter module supports integration via PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP, and CANopen through ABB’s FPBA, FENA, FEIP, FMBA, and FCAN fieldbus adapter modules respectively. This broad protocol compatibility ensures that the ACS880-104LC-0860A-7 can be incorporated into virtually any existing plant communication infrastructure without requiring gateway devices or protocol converters, reducing system complexity and potential points of failure.

The power layer design of the ACS880-104LC-0860A-7 is optimized for high-current, high-voltage applications. Operating within the ACS880 cabinet drive framework, the module is designed to work alongside the ACS880 supply unit, DC fuses, and busbars in a coordinated power distribution scheme. Proper sizing of upstream protection — including semiconductor fuses and circuit breakers — is essential to ensure that the inverter module operates within its rated thermal and electrical envelope, particularly in continuous-duty industrial environments.

From a maintenance and lifecycle management perspective, the modular architecture of the ACS880 platform means that the ACS880-104LC-0860A-7 can be replaced or serviced without a full drive shutdown in systems designed with redundant inverter configurations. Spare module availability, combined with our 12-Month Warranty and system integration support, ensures that engineering teams can maintain system uptime and reduce mean time to repair (MTTR) in critical production environments.

Product Specification Table

System Compatibility Notes

The ACS880-104LC-0860A-7 achieves its full performance potential when deployed as part of a coordinated ACS880 system architecture. A typical high-power drive system built around this inverter module would include the following coordinated components:

The ACS880-104 Active Front End (AFE) module serves as the regenerative rectifier, providing a clean, regulated DC bus voltage to the inverter module while enabling energy recovery during motor braking cycles. Paired with the ACS880 DC bus capacitor bank and DC fuse assemblies, the power section forms a robust and protected energy distribution backbone.

The ZCU-14 control unit provides the drive intelligence — executing the Direct Torque Control (DTC) algorithm, managing protection functions, and communicating with the plant-level PLC or DCS via the installed fieldbus adapter. The FENA-21 EtherNet/IP and PROFINET adapter enables real-time process data exchange and remote parameterization, reducing commissioning time and enabling predictive maintenance data collection.

For I/O expansion, the AIMA-01 analog I/O extension module and FIO-11 digital I/O module extend the drive’s signal interface capability, supporting encoder feedback, process transmitter inputs, and digital interlock signals from field devices. In multi-drive systems, the RDCO-04 DDCS fiber-optic adapter enables high-speed inter-drive communication for master-follower torque sharing or coordinated speed control across multiple ACS880-104LC inverter modules on a common DC bus.

At the human-machine interface layer, the ABB CP600 series HMI panel or a SCADA system connected via OPC-UA provides operators with real-time drive status, fault history, energy consumption data, and remote parameter adjustment capability — completing the full automation pyramid from field device to enterprise system.

Industrial Application Notes

The ACS880-104LC-0860A-7 is engineered for demanding industrial applications where high motor current, precise torque control, and system-level integration are non-negotiable requirements.

In metals and mining applications, this inverter module drives large grinding mills, conveyor systems, and hoisting equipment where high starting torque, controlled acceleration, and regenerative braking are essential for process efficiency and equipment protection. The liquid-cooled design ensures reliable operation in high-ambient-temperature environments typical of mineral processing facilities.

In oil, gas, and petrochemical plants, the ACS880-104LC-0860A-7 is applied to large compressor drives, pump systems, and extruder lines where continuous-duty operation at high current levels demands robust thermal management and redundant control architecture. The module’s compatibility with SIL-rated safety functions — implemented via the ACS880 FSO-12 safety functions module — enables integration into functional safety architectures compliant with IEC 62061 and ISO 13849.

In power generation and utilities, including hydroelectric, wind, and thermal power plants, the inverter module supports variable-speed generator control and large auxiliary drive applications. Its common DC bus capability allows energy from regenerating drives to be directly consumed by motoring drives within the same system, improving overall plant energy efficiency.

In pulp, paper, and packaging industries, the ACS880-104LC-0860A-7 is deployed in winder, unwinder, and section drive applications where precise speed and tension control across multiple coordinated drive axes is critical to product quality and line productivity. The module’s DTC control algorithm delivers fast torque response without encoder feedback, simplifying mechanical design while maintaining high dynamic performance.

Product Compatibility FAQ

Q1: Is the ACS880-104LC-0860A-7 compatible with existing ACS880 cabinet drive systems, and can it be retrofitted into an existing installation?
A: Yes. The ACS880-104LC-0860A-7 is designed as a modular replacement component within the ACS880 cabinet drive platform. It is mechanically and electrically compatible with ACS880 inverter module slots of the appropriate frame size. Retrofitting requires verification of DC bus voltage rating, liquid cooling circuit compatibility, and control unit firmware version. Our technical team provides system integration support to assist with compatibility assessment and commissioning documentation as part of the 12-Month Warranty package.

Q2: What communication protocols does the ACS880-104LC-0860A-7 support, and how does it integrate with third-party PLC or DCS platforms?
A: The inverter module supports all major industrial fieldbus protocols through ABB’s plug-in adapter system, including PROFIBUS DP (FPBA-01), PROFINET IO (FENA-21), EtherNet/IP (FENA-21), Modbus TCP (FMBA-01), and CANopen (FCAN-01). This enables direct integration with Siemens SIMATIC, Rockwell ControlLogix, Schneider Modicon, Yokogawa CENTUM, and Honeywell Experion DCS platforms without requiring protocol gateways. The ZCU control unit also supports ABB’s DDCS fiber-optic protocol for high-speed inter-drive communication in multi-drive architectures.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance planning?
A: The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and provides access to our system integration support service — which includes assistance with system architecture review, parameter backup, spare parts planning, and replacement logistics. For long-term maintenance, we recommend establishing a spare module inventory strategy aligned with your plant’s critical drive list, and our engineering team can assist with mean time between failure (MTBF) analysis and preventive maintenance scheduling to maximize system uptime over the drive’s operational lifecycle.
