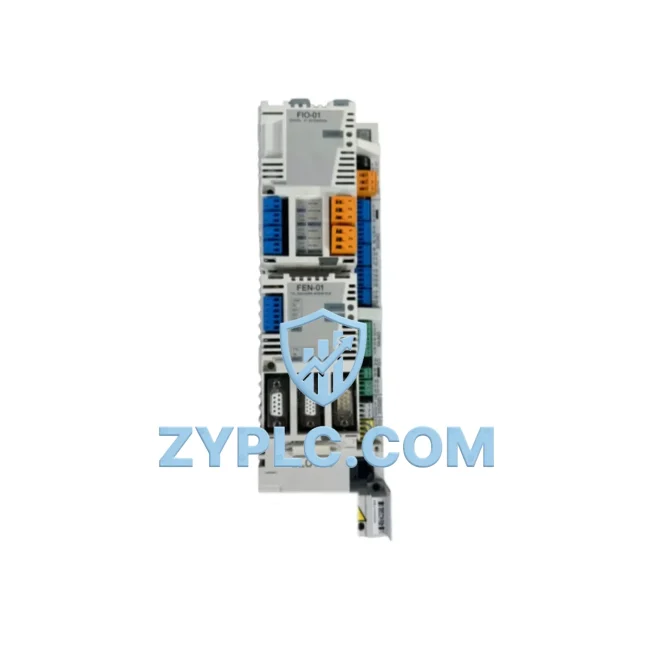

ABB ACSM1-04AM-04A0-4 Industrial Network Interface for ACSM1

ABB ACSM1-04AM-04A0-4 Industrial Network Interface for ACSM1 Systems

In modern smart factory environments, the ability to connect servo drives seamlessly into a unified industrial data network is no longer optional — it is the foundation of production efficiency. The ABB ACSM1-04AM-04A0-4 is a high-performance servo motor controller from ABB’s ACSM1 Series, engineered to serve as a critical industrial network interface node between field-level motion devices and upper-level control and monitoring systems. Whether your plant runs on PROFIBUS DP, CANopen, EtherCAT, or PROFINET, the ACSM1-04AM-04A0-4 is designed to integrate cleanly into your existing automation architecture, enabling real-time data exchange, remote diagnostics, and closed-loop motion control across the entire production line.

The ACSM1-04AM-04A0-4 supports a continuous output current of 4A at 400V AC (3-phase), making it well-suited for compact servo axis applications in packaging machinery, CNC systems, material handling, and precision assembly lines. Its multi-protocol communication capability allows it to function as a transparent data bridge between servo-level feedback signals and PLC controllers, SCADA platforms, and HMI terminals — eliminating the data isolation that plagues heterogeneous factory networks.

Network Communication Table

Connected Automation Data Flow

The ACSM1-04AM-04A0-4 sits at the intersection of motion control and industrial networking. In a typical smart factory deployment, field-level sensors — such as ABB’s TTK series encoders or third-party incremental encoders — feed position and velocity data directly into the ACSM1-04AM-04A0-4’s feedback interface. This real-time signal is processed locally within the drive’s motion controller, then transmitted upstream via the installed fieldbus adapter to the plant’s PLC layer.

When paired with an ABB AC500 PLC (such as the PM573-ETH or PM591-ETH CPU modules), the ACSM1-04AM-04A0-4 communicates axis status, fault codes, and motion completion signals over PROFINET or EtherCAT, enabling the PLC to coordinate multi-axis sequences without polling delays. For plants using PROFIBUS DP backbones, the FPBA-01 PROFIBUS adapter module slots directly into the ACSM1 drive, allowing it to appear as a standard DP slave on the network — readable by any PROFIBUS master, including Siemens S7 PLCs or ABB’s own AC500 DP master modules.

At the HMI layer, operators interact with the ACSM1-04AM-04A0-4’s runtime data through ABB CP600 series HMI panels or third-party SCADA terminals connected via OPC-UA gateways. Drive parameters such as actual speed, torque setpoint, motor temperature, and fault history are mapped to SCADA tags in real time, giving maintenance engineers full visibility into servo axis behavior without requiring physical access to the drive cabinet. This is particularly valuable in large-scale facilities where servo axes may be distributed across multiple production cells.

For multi-drive architectures, the ACSM1-04AM-04A0-4 can be networked alongside ABB ACS880 variable frequency drives and ACS580 general-purpose drives on the same PROFINET segment, creating a unified drive network managed from a single engineering workstation running ABB Drive Composer or DriveAP software. Remote I/O modules — such as ABB’s TU505 or TU516 terminal units — extend the I/O reach of the control system to remote machine sections, while the ACSM1-04AM-04A0-4 handles the precision motion axis locally.

Edge computing gateways installed at the panel level can subscribe to the ACSM1-04AM-04A0-4’s network data stream, aggregating servo performance metrics alongside energy consumption data from ABB M2M energy meters. This data pipeline feeds into MES or cloud analytics platforms, enabling predictive maintenance models that flag bearing wear or encoder drift before they cause unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A factory floor may simultaneously run legacy PROFIBUS DP devices installed a decade ago, newer EtherCAT servo systems, and Ethernet-based SCADA infrastructure — with no native bridge between them. The ACSM1-04AM-04A0-4 addresses this directly through its modular fieldbus adapter architecture.

By selecting the appropriate ABB fieldbus adapter — FENA-21 for PROFINET/EtherNet IP, FPBA-01 for PROFIBUS DP, or FCAN-01 for CANopen — the ACSM1-04AM-04A0-4 can be configured to speak the native protocol of any existing plant network. This eliminates the need for external protocol converters or gateway devices, reducing network latency, simplifying cabinet wiring, and lowering the risk of communication timeouts that can trigger nuisance faults on servo axes.

For plants pursuing production line transparency, the ACSM1-04AM-04A0-4’s network integration enables OEE (Overall Equipment Effectiveness) tracking at the drive level. Actual cycle times, axis utilization rates, and fault frequency data can be extracted from the drive’s network interface and fed into MES dashboards, giving production managers the granular data they need to identify bottlenecks, optimize line speed, and reduce idle time between production runs.

Remote diagnostics capability is another key advantage. Maintenance teams can access the ACSM1-04AM-04A0-4’s fault log, parameter set, and real-time status remotely via the SCADA network, without dispatching a technician to the machine. This is especially valuable for multi-site operations or facilities with limited on-site engineering resources. All units supplied by ZYPLC are fully tested prior to shipment and covered by a 12-month warranty, with in-stock availability ensuring fast delivery to minimize production downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the ACSM1-04AM-04A0-4 support?
The ACSM1-04AM-04A0-4 supports multiple industrial fieldbus protocols through ABB’s modular adapter system, including PROFIBUS DP (via FPBA-01), PROFINET / EtherNet/IP (via FENA-21), CANopen (via FCAN-01), and EtherCAT (via FECA-01). Protocol selection is made by installing the corresponding adapter module into the drive’s option slot, making it straightforward to match the drive to your existing plant network without additional gateway hardware.

Q2: Is the ACSM1-04AM-04A0-4 compatible with third-party PLCs and SCADA systems?
Yes. Because the ACSM1-04AM-04A0-4 communicates via standard industrial protocols (PROFIBUS DP, PROFINET, CANopen, EtherCAT), it is compatible with any PLC or SCADA system that supports these protocols — including Siemens S7, Rockwell ControlLogix, Schneider Modicon, and Mitsubishi MELSEC platforms. The drive appears as a standard fieldbus node, and its process data objects (PDOs) can be mapped to PLC variables using standard GSD or EDS configuration files.

Q3: How does the drive perform in terms of network latency and communication stability?
The ACSM1-04AM-04A0-4 is designed for deterministic real-time communication. In EtherCAT mode, cycle times as low as 250µs are achievable, suitable for tight multi-axis synchronization. In PROFIBUS DP mode, typical cycle times are 1–5ms depending on network configuration and number of nodes. The drive’s onboard watchdog function monitors network health and can trigger a configurable safe-state response if communication is lost, preventing uncontrolled axis movement during network interruptions.

Q4: What testing and warranty coverage is provided?
Every ACSM1-04AM-04A0-4 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including power-on verification, communication interface check, and parameter integrity validation. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains in-stock inventory of ACSM1 series drives to support urgent replacement requirements, with DHL/FedEx express shipping available for time-critical orders.
