ABB ACSM1-04AS-046A-4+JCU-01 Industrial Network Interface for ACSM1 Systems

ABB ACSM1-04AS-046A-4+JCU-01 Industrial Network Interface for ACSM1 Systems: Bridging Field Devices and Smart Factory Data Flows

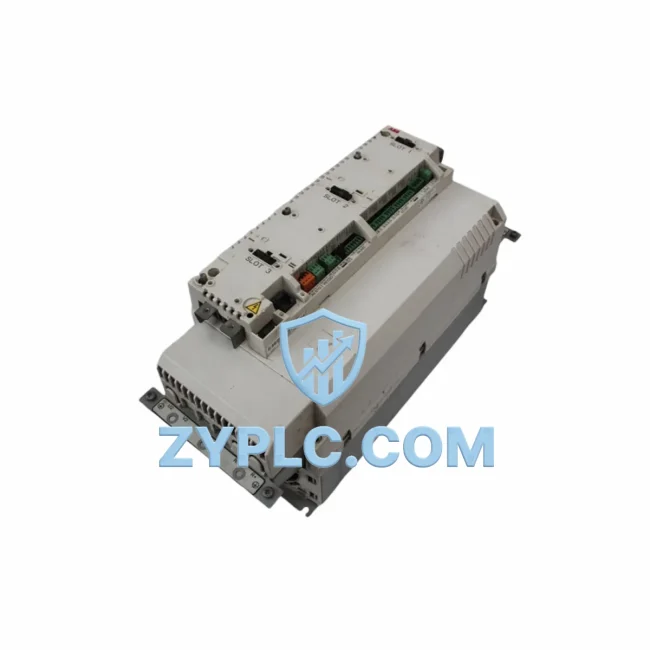

The ABB ACSM1-04AS-046A-4+JCU-01 is a high-performance AC drive inverter engineered for demanding industrial automation environments. Combining the ACSM1 series power module with the JCU-01 control unit, this drive delivers seamless protocol conversion, real-time data transmission, and robust network integration across the full spectrum of smart factory architectures. Whether deployed in motion control, conveyor systems, pump stations, or precision manufacturing lines, the ACSM1-04AS-046A-4+JCU-01 serves as a critical node in the industrial data chain — connecting field-level devices to supervisory control systems with minimal latency and maximum reliability.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the ACSM1-04AS-046A-4+JCU-01 sits at the intersection of field-level signal acquisition and upper-layer supervisory control. The data journey begins at the sensor layer — where encoders, proximity switches, and temperature transmitters feed real-time process values into the JCU-01 control unit via its high-resolution analog and digital I/O channels. These signals are processed locally within the ACSM1 drive, enabling closed-loop speed and torque regulation without burdening the network with unnecessary traffic.

Moving up the automation pyramid, the drive communicates with ABB AC500 PLC controllers over PROFIBUS DP or Modbus TCP, delivering cyclic process data — motor speed, output frequency, DC bus voltage, and fault codes — at scan rates well under 10 ms. In multi-axis applications, the ACSM1-04AS-046A-4+JCU-01 operates alongside ABB ACSM1-04AM motion control variants and ABB ACSM1-04AS-026A-4 units, forming a coordinated drive network managed by a single PLC program. The JCU-01 control unit’s modular fieldbus adapter slot allows engineers to insert an ABB FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP adapter, instantly extending the drive’s network reach without hardware redesign.

At the SCADA and HMI layer, the drive’s real-time data stream feeds into ABB Ability™ System 800xA or third-party SCADA platforms via OPC-UA gateways and industrial Ethernet switches. Operators monitoring a Siemens SIMATIC HMI or Wonderware InTouch panel can view live motor parameters, energy consumption trends, and predictive maintenance alerts — all sourced directly from the ACSM1-04AS-046A-4+JCU-01’s onboard diagnostics engine. Remote I/O modules such as the ABB CI854 communication interface further extend the data collection perimeter, aggregating signals from distributed field devices and routing them through the same industrial Ethernet backbone.

For applications requiring edge intelligence, the drive’s Modbus TCP interface connects to industrial edge gateways running IIoT middleware, enabling local data preprocessing, anomaly detection, and cloud upload to platforms such as ABB Ability™ or Microsoft Azure IoT Hub. Variable frequency drives like the ABB ACS880 series operating in adjacent process zones share the same network segment, and their combined data streams are managed by a unified SCADA historian — creating a transparent, plant-wide view of energy and production KPIs. Throughout this data chain, the ACSM1-04AS-046A-4+JCU-01 acts not merely as a motor controller, but as an active network participant that enriches the factory’s information fabric.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — older field devices speaking Modbus RTU while newer PLCs demand PROFINET or EtherNet/IP. The ACSM1-04AS-046A-4+JCU-01 addresses this directly through its modular fieldbus architecture. By selecting the appropriate ABB fieldbus adapter module, engineers can bridge incompatible protocol domains without introducing standalone protocol converters that add latency, failure points, and maintenance overhead.

Data silos are equally common in multi-vendor environments where drives, sensors, and controllers from different manufacturers cannot exchange information natively. The JCU-01 control unit’s open communication profile — supporting standard parameter mapping via the ABB Drive Profile and CiA 402 motion profile — ensures that the ACSM1-04AS-046A-4+JCU-01 integrates cleanly into mixed-vendor automation architectures. Plant managers gain a unified data view across previously isolated production islands, enabling cross-line performance benchmarking and energy optimization at the enterprise level.

Remote monitoring and diagnostics are further enhanced by the drive’s built-in fault logging and parameter backup capabilities. Maintenance engineers can retrieve full fault histories, trend logs, and configuration snapshots over the network — eliminating the need for on-site visits for routine diagnostics. This capability is especially valuable in geographically distributed facilities where travel time and downtime costs are significant. Combined with the drive’s production-line transparency features — real-time OEE contribution data, load profiles, and thermal status — the ACSM1-04AS-046A-4+JCU-01 transforms reactive maintenance into a proactive, data-driven discipline. System expansion is equally straightforward: additional ACSM1 drives can be added to the network with minimal reconfiguration, and the JCU-01’s parameter cloning function accelerates commissioning of new units to match existing drive profiles.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ACSM1-04AS-046A-4+JCU-01 over PROFIBUS DP?
With PROFIBUS DP at 12 Mbit/s, cyclic data exchange between the drive and a connected PLC typically achieves response times of 1–5 ms, depending on network load and the number of nodes on the segment. This is well within the requirements of most motion control and process automation applications.

Q2: Is the ACSM1-04AS-046A-4+JCU-01 compatible with third-party SCADA and HMI systems?
Yes. The drive supports standard industrial protocols including Modbus TCP and EtherNet/IP, which are natively supported by the majority of SCADA platforms (Ignition, Wonderware, iFIX) and HMI systems. OPC-UA connectivity is achievable via an edge gateway, enabling integration with virtually any modern supervisory system.

Q3: How is network stability ensured in high-interference industrial environments?
The JCU-01 control unit incorporates EMC-compliant hardware design and supports network watchdog functions that trigger safe-state responses if communication is lost. Shielded cable recommendations and proper grounding practices, combined with the drive’s built-in noise filtering, ensure reliable data transmission even in environments with significant electromagnetic interference from welding equipment, large motors, and variable-speed drives.

Q4: What does the 12-month warranty cover, and has the unit been tested before shipment?
Every ACSM1-04AS-046A-4+JCU-01 unit undergoes full functional testing prior to shipment, including power-on verification, communication interface checks, and parameter integrity validation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for commissioning and integration queries.
