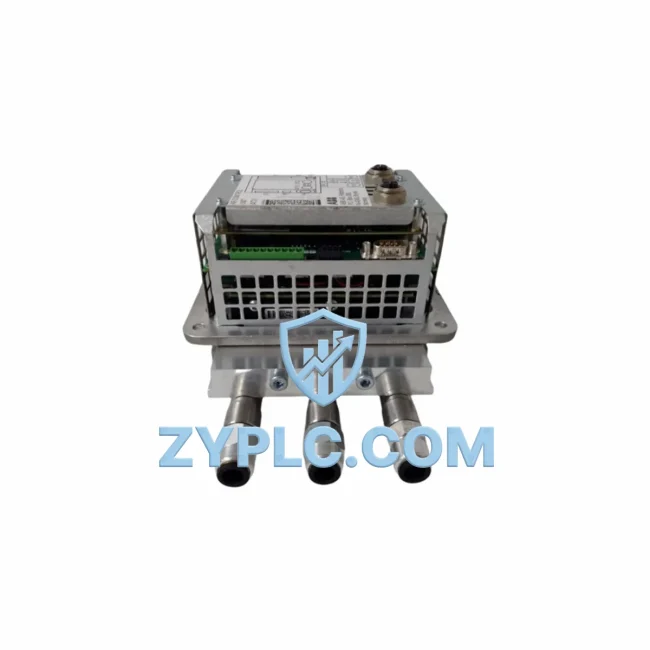

ABB ACU-01B 3HNA024871-001 Industrial Valve Controller

ABB ACU-01B 3HNA024871-001 Industrial Valve Controller — Enabling Smart Factory Data Flow for IRC5 Robot Systems

The ABB ACU-01B, part number 3HNA024871-001, is a high-performance valve controller unit designed for seamless integration within ABB IRC5 robot control architectures. Serving as a critical communication node between field-level pneumatic actuators and the central robot controller, the ACU-01B ensures precise, real-time valve sequencing essential for automated manufacturing cells, welding stations, material handling lines, and assembly operations in modern smart factories.

In any industrial automation environment, reliable data flow between controllers, I/O modules, drives, sensors, and supervisory systems determines overall equipment effectiveness. The ACU-01B bridges the gap between physical valve actuation and digital process control, converting command signals from the IRC5 controller into precise pneumatic outputs while feeding back valve status, diagnostics, and alarm data to the supervisory layer. This bidirectional communication capability is fundamental to achieving transparent, data-driven production.

Network Communication Table

Connected Automation Data Flow

Within a typical ABB IRC5 robotic cell, the ACU-01B operates as part of a tightly integrated data chain. The IRC5 main computer module processes the robot program and issues valve commands through the internal backplane bus. The ACU-01B receives these commands and translates them into discrete outputs that drive pneumatic solenoid valves controlling grippers, clamps, tool changers, and other end-of-arm tooling actuators.

Signal acquisition begins at the sensor level, where inductive proximity sensors and pressure transducers confirm actuator positions and system pressures. These signals are routed through the ABB DSQC 652 digital I/O module, which aggregates field data and passes it upstream to the IRC5 controller. Simultaneously, the ABB DSQC 639 axis computer coordinates servo drive commands for robot motion, ensuring that valve sequencing is precisely synchronized with arm trajectories.

For multi-robot installations, the ABB DSQC 668 DeviceNet master module enables communication between the IRC5 cell controller and remote DeviceNet slave devices distributed across the production line. The ACU-01B participates in this network architecture, allowing centralized monitoring of valve health and cycle counts from the supervisory level. Alongside the DSQC 668, the ABB DSQC 378 bus adapter further extends fieldbus connectivity, enabling the IRC5 system to interface with PROFIBUS or other industrial network segments where legacy PLCs or remote I/O stations reside.

At the HMI and SCADA tier, operators interact with the system through an ABB FlexPendant or a panel-mounted industrial display connected via Ethernet. Process data collected from the ACU-01B — including valve response times, fault codes, and cumulative cycle statistics — flows into the SCADA platform for real-time visualization, trend analysis, and alarm management. Integration with the ABB Ability platform or third-party SCADA systems enables plant-wide transparency and remote diagnostics.

Power conditioning is equally important in maintaining communication integrity. The ABB DSQC 604 power supply unit delivers stable 24 VDC to the IRC5 cabinet, ensuring that the ACU-01B and associated I/O modules operate within specification even during voltage transients common in heavy industrial environments. The ABB DSQC 663 safety module monitors emergency stop circuits and safe torque-off signals, providing an additional protection layer that complements the ACU-01B’s own diagnostic capabilities.

Edge gateway devices can further extend the data chain by aggregating DeviceNet and Ethernet traffic and forwarding summarized datasets to cloud-based analytics engines. This architecture supports predictive maintenance strategies where valve wear patterns detected by the ACU-01B trigger automated work orders before unplanned downtime occurs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is data isolation — the inability of legacy devices to share information across different protocol domains. The ACU-01B addresses this challenge within the ABB robot ecosystem by providing a standardized valve control interface that communicates natively with the IRC5 backplane. Rather than requiring custom wiring or third-party protocol converters for each valve bank, the ACU-01B consolidates valve management into a single, diagnostics-capable module.

In plants where multiple robot cells must coordinate with conveyor systems, vision inspection stations, and packaging machines, the ACU-01B’s integration with the DeviceNet network layer ensures that valve status data is accessible to any authorized node on the network. This eliminates information silos that traditionally force maintenance technicians to physically inspect each valve manifold.

Remote monitoring capabilities further enhance operational transparency. By exposing valve diagnostics through the IRC5 controller’s Ethernet interface, plant engineers can review ACU-01B performance from a centralized control room or remotely via VPN-secured connections. This is particularly valuable for multi-site operations where a single engineering team oversees robot cells across geographically dispersed factories.

System expansion is straightforward. Adding new valve channels or integrating additional robot cells requires only the installation of another ACU-01B module and configuration within the IRC5 software environment. The modular architecture of the IRC5 platform — including the DSQC 652 I/O module and the DSQC 668 DeviceNet master — ensures that scaling up does not introduce communication bottlenecks or require fundamental network redesign.

Industrial Connectivity FAQ

Q1: What communication latency can I expect from the ACU-01B in an IRC5 system?
The ACU-01B communicates via the IRC5 internal backplane bus, which operates at deterministic cycle times typically in the low-millisecond range. This ensures that valve commands are executed within the same controller scan cycle, supporting high-speed pick-and-place and welding applications where timing precision is critical.

Q2: Is the ACU-01B compatible with non-ABB controllers or third-party DeviceNet masters?
The ACU-01B is designed specifically for the ABB IRC5 robot controller platform. While it interfaces with the DeviceNet network through the DSQC 668 module, direct connection to non-ABB controllers is not its primary use case. For mixed-vendor environments, a DeviceNet gateway or protocol converter may be required to bridge data between the ABB cell and other control platforms.

Q3: How does ZYPLC ensure product quality before shipping?
Every ACU-01B unit undergoes functional testing and visual inspection before dispatch. We verify connector integrity, communication response, and output channel operation to ensure the module meets ABB’s original performance specifications. All units ship with secure industrial packaging to prevent transit damage.

Q4: What warranty coverage does ZYPLC provide?
ZYPLC provides a 12-month warranty on the ABB ACU-01B 3HNA024871-001. During the warranty period, any unit exhibiting manufacturing defects or functional failures under normal operating conditions will be replaced or repaired at no additional cost. Contact us at plc.sales@zyplc.com or +86 19859288691 for warranty claims or technical support.
