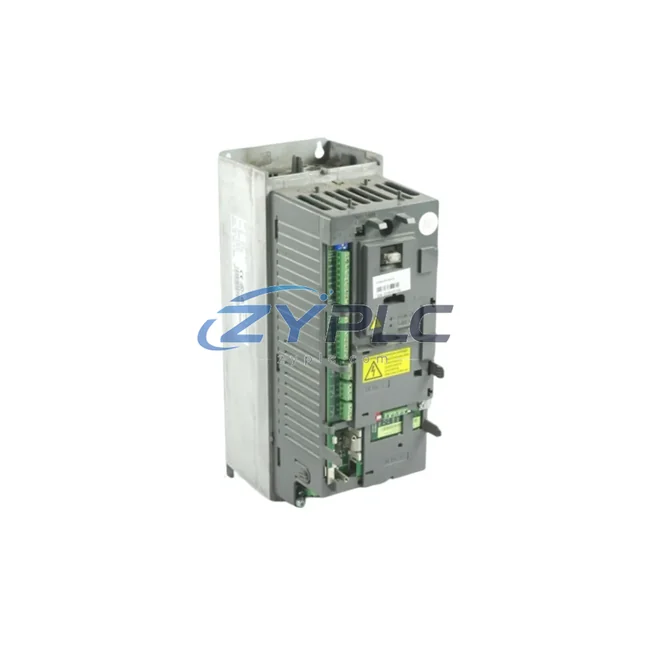

ABB ACX550-U0-04A1-4+P901 VFD for ACX550

ABB ACX550-U0-04A1-4+P901 VFD for ACX550

The ABB ACX550-U0-04A1-4+P901 is a 1.5 kW, 480 V three-phase AC variable frequency drive engineered for seamless deployment within the ABB ACX550 control system architecture. Unlike standalone drive solutions, this unit is designed from the ground up to function as an integrated node within a layered automation hierarchy — coordinating with upstream controllers, downstream actuators, I/O subsystems, communication gateways, and human-machine interfaces to deliver consistent, scalable, and maintainable motor control across demanding industrial environments. Backed by a warranty terms confirmed during quotation and optimized for system integration, the ACX550-U0-04A1-4+P901 is a trusted component for system architects and maintenance engineers alike.

In modern industrial automation, a variable frequency drive is never an isolated device. It occupies a defined role within a control hierarchy that spans from the field level to the supervisory level. The ACX550-U0-04A1-4+P901 is purpose-built to fulfill that role within ABB’s ACX550 platform, offering deterministic speed and torque control, robust communication capability, and a compact form factor suited to both panel-mount and standalone enclosure installations. Its integration-ready design reduces commissioning time, simplifies parameter management, and supports long-term system consistency — all critical factors in facilities where uptime and predictability are non-negotiable.

From a signal flow perspective, the drive receives speed reference commands from a programmable logic controller or distributed control system via analog input (0–10 V or 4–20 mA) or digital fieldbus. It processes these references through its internal scalar or vector control algorithm, then outputs a precisely modulated three-phase voltage waveform to the connected motor. Feedback signals — including actual speed, output current, fault status, and drive temperature — are returned upstream to the control layer, enabling closed-loop process regulation and real-time diagnostics without additional instrumentation.

Product Specification Table

System Compatibility Notes

The ACX550-U0-04A1-4+P901 achieves its full potential when deployed as part of a coordinated control architecture rather than as a standalone unit. At the control layer, it typically receives commands from an ABB AC500 PLC or a compatible third-party controller via hardwired I/O or fieldbus. The +P901 communication option module enables the drive to participate in Profibus DP or Modbus RTU networks, allowing the PLC to read drive status registers, write speed setpoints, and trigger fault resets — all without operator intervention at the drive panel.

At the power layer, the drive is commonly paired with an ABB SACE Tmax or equivalent molded-case circuit breaker for upstream protection, along with an ABB EMC line filter to suppress conducted emissions and comply with EN 61800-3 Category C2 requirements. For applications requiring enhanced motor protection, an ABB thermistor relay or PTC input module can be integrated into the drive’s digital input chain, providing winding temperature monitoring without additional relay logic.

On the I/O layer, the ACX550-U0-04A1-4+P901 interfaces with field devices through its onboard terminal block. Analog speed references from a process controller or a Siemens S7-300 analog output module can be wired directly to the drive’s AI1 or AI2 terminals. Digital run/stop commands from an ABB CP600 HMI or a Schneider Electric Magelis panel are routed through the DI terminals, enabling operator-level control without bypassing the PLC logic. The drive’s relay outputs can be wired to indicator lamps, alarm horns, or upstream interlock circuits to signal run status, fault conditions, or speed-at-setpoint confirmation.

For system redundancy, the ACX550-U0-04A1-4+P901 supports a bypass contactor arrangement using ABB AF-series contactors, allowing the motor to be switched to direct-on-line operation in the event of a drive fault. This architecture is particularly valuable in critical process applications — such as cooling water pumps, ventilation fans, or conveyor drives — where motor availability is more important than variable speed control during fault recovery. The bypass logic can be implemented using the drive’s relay outputs and a dedicated ABB CR-series control relay, ensuring automatic or manual switchover without PLC reprogramming.

At the network layer, the +P901 option module enables the drive to be addressed as a Profibus DP slave, with a configurable station address and baud rate up to 12 Mbps. This allows the drive to coexist on the same Profibus segment as other field devices — including ABB ACSM1 servo drives, ABB ACS880 industrial drives, or third-party I/O modules — without requiring a dedicated communication gateway. The drive’s parameter set can be uploaded and downloaded via the fieldbus master, simplifying multi-drive commissioning and enabling remote parameter backup as part of a structured maintenance program.

Industrial Application Notes

The ACX550-U0-04A1-4+P901 is well-suited to a broad range of industrial applications where precise motor speed control, system integration, and long-term reliability are required. In manufacturing environments, the drive is commonly used to control conveyor belt speed, cooling fan airflow, and hydraulic pump pressure — applications where load variation is predictable and the control architecture is well-defined. Its compact 1.5 kW rating makes it ideal for auxiliary drive positions within larger machine cells, where it operates alongside higher-power drives controlling primary axes.

In water and wastewater treatment facilities, the ACX550-U0-04A1-4+P901 is deployed on dosing pump drives, aeration blower auxiliaries, and sludge transfer pumps. The drive’s PID control function — accessible via its internal application macros — allows it to regulate flow or pressure directly from a 4–20 mA process sensor signal, reducing the burden on the supervisory PLC and enabling local closed-loop control even during communication interruptions. This capability is particularly valuable in remote pump stations where network reliability cannot be guaranteed.

In the power generation and electrical utility sector, the drive is used in auxiliary systems such as cooling water circulation, fuel oil transfer, and HVAC control within substation buildings. Its wide input voltage tolerance (380–480 V ±10%) accommodates the voltage fluctuations common in utility environments, and its built-in EMC filter reduces interference with sensitive protection relay systems operating on the same electrical infrastructure.

In petrochemical and oil & gas processing plants, the ACX550-U0-04A1-4+P901 is applied to non-hazardous area auxiliary drives — including instrument air compressor auxiliaries, heat exchanger fan drives, and chemical injection pump controls. Its robust enclosure (IP21) and wide operating temperature range (-15°C to +50°C) support installation in ventilated control rooms and equipment shelters without additional environmental conditioning.

In mining and minerals processing, the drive controls conveyor feeder auxiliaries, dust suppression pump drives, and ventilation fan speed in underground and surface installations. Its ability to operate reliably in high-dust, high-vibration environments — when installed within a properly rated control cabinet — makes it a practical choice for auxiliary drive positions in mineral processing lines where maintenance access is infrequent and component reliability is critical.

Product Compatibility FAQ

Q1: Is the ACX550-U0-04A1-4+P901 compatible with existing ABB ACX550 system architectures, and can it be added to an existing Profibus DP network without reconfiguring the master?
Yes. The ACX550-U0-04A1-4+P901 with the +P901 option module is fully compatible with existing ACX550 system architectures and can be added to an existing Profibus DP network by assigning a unique station address via the drive’s keypad or parameter interface. The GSD file for the ACX550 series is available from ABB and can be imported into the Profibus master configuration tool (such as Siemens STEP 7 or TIA Portal) without requiring a full network reconfiguration. Existing drive parameters from other ACX550 units can be cloned to the new drive using the ABB Drive Composer tool or via the fieldbus master, significantly reducing commissioning time.

Q2: What installation and commissioning steps are required to integrate the ACX550-U0-04A1-4+P901 into a layered automation system, and are there any compatibility constraints with third-party PLCs or HMIs?
Commissioning the ACX550-U0-04A1-4+P901 in a layered automation system involves four primary steps: mechanical installation and cable routing, power wiring (input supply and motor output), control wiring (analog/digital I/O and fieldbus), and parameter configuration via the drive’s keypad or ABB Drive Composer software. The drive is compatible with any PLC or HMI that supports Profibus DP or Modbus RTU communication, including Siemens S7 series, Schneider Electric Modicon, Rockwell Automation ControlLogix, and ABB AC500 platforms. For analog control, the drive accepts standard 0–10 V and 4–20 mA reference signals, ensuring compatibility with virtually all industrial control systems without signal conditioning hardware.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability for the ACX550-U0-04A1-4+P901?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, component failures, and functional faults under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair of the defective unit with a target turnaround time that minimizes system downtime. For long-term maintenance, ZYPLC supports RFQ sourcing for ACX550 series drives and key spare components — including control boards, power modules, and option cards — to support rapid replacement in the event of unplanned failures. Customers are encouraged to contact ZYPLC’s technical team at plc.sales@zyplc.com or +86 19859288691 to discuss spare parts planning, preventive maintenance schedules, and multi-unit procurement strategies that align with their system lifecycle requirements.
