ABB ADATX110 3ASC25H209 Industrial Network Interface for AC500 Systems

ABB ADATX110 3ASC25H209 Industrial Network Interface for AC500 Systems: Bridging Field Devices and Smart Factory Data Links

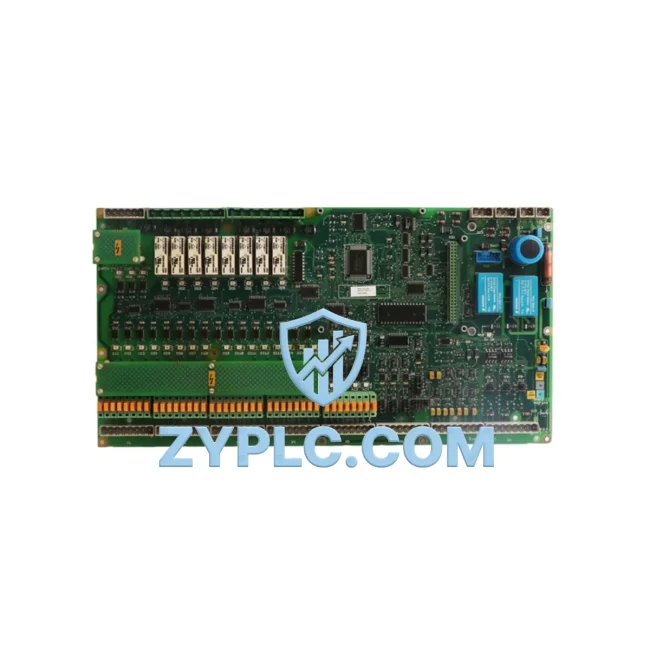

The ABB ADATX110 (3ASC25H209) is a high-performance industrial network interface and I/O board engineered for seamless integration within ABB’s AC500 PLC platform. Designed to serve as a critical data bridge between field-level instrumentation and upper-layer control systems, this module enables reliable, real-time communication across multi-protocol industrial environments. Whether deployed in discrete manufacturing, process automation, or hybrid smart factory architectures, the ADATX110 delivers the connectivity, determinism, and diagnostic transparency that modern industrial networks demand.

In today’s converged OT/IT environments, the ability to move data accurately and continuously from sensors and actuators through PLCs, remote I/O nodes, HMI panels, SCADA servers, and MES platforms is no longer optional — it is the foundation of operational intelligence. The ABB ADATX110 3ASC25H209 is purpose-built to fulfill this role within the AC500 ecosystem, supporting multi-protocol communication and enabling engineers to design scalable, future-ready automation architectures without compromising on signal integrity or network stability.

Network Communication Table

Connected Automation Data Flow

The ADATX110 3ASC25H209 sits at the heart of a layered industrial communication architecture. At the field level, process sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into the AC500 I/O subsystem. The ADATX110 aggregates these signals and makes them available to the ABB AC500 CPU modules (such as the PM573 or PM591) via the internal backplane bus, ensuring zero-latency data availability for the PLC’s control logic engine.

On the fieldbus side, the module operates as a PROFIBUS-DP slave or master interface, enabling direct communication with ABB CI501-PNIO PROFINET I/O modules, remote I/O racks, and distributed field devices across the production floor. This makes it straightforward to extend the AC500 network to outlying control cabinets or skid-mounted equipment without running additional copper wiring back to the central PLC rack.

For Ethernet-based architectures, the ADATX110 supports EtherNet/IP, allowing it to exchange data with ABB CP600 HMI panels and industrial SCADA platforms such as ABB System 800xA or third-party supervisory systems running on standard TCP/IP infrastructure. This dual-protocol capability — fieldbus and industrial Ethernet — makes the module a genuine gateway component, capable of translating legacy PROFIBUS device data into Ethernet-native formats consumable by MES and cloud analytics platforms.

Variable-speed drives and motor controllers, including ABB ACS880 and ACS580 series drives, can be integrated into the same network segment via Modbus RTU or PROFIBUS-DP, with the ADATX110 serving as the communication intermediary. Drive status, speed references, fault codes, and energy consumption data are all accessible in real time through the AC500 controller, enabling closed-loop control and predictive maintenance workflows.

Remote I/O expansion is another key application. Using the ADATX110 alongside ABB TU515 and TU516 terminal units, engineers can build distributed I/O nodes that communicate back to the central AC500 rack over PROFIBUS-DP, dramatically reducing panel wiring complexity in large-scale installations. Each remote node can host additional signal modules, further extending the system’s I/O capacity without requiring additional CPU resources.

At the supervisory layer, data collected by the AC500 through the ADATX110 is forwarded to SCADA and historian platforms — whether ABB’s own 800xA environment or third-party systems such as Wonderware, Ignition, or WinCC — via OPC-UA gateways or direct EtherNet/IP polling. This creates a continuous, unbroken data chain from the sensor to the enterprise dashboard, supporting real-time KPI monitoring, alarm management, and production reporting.

Edge computing nodes and industrial IoT gateways can also be integrated downstream of the AC500, collecting pre-processed data from the ADATX110’s I/O channels and forwarding it to cloud platforms for long-term trend analysis, digital twin synchronization, and remote asset management. This positions the ADATX110 not merely as a legacy fieldbus component, but as a forward-compatible building block in Industry 4.0 architectures.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial environments is protocol fragmentation — legacy PROFIBUS devices that cannot natively communicate with modern Ethernet-based control systems, creating data silos that obscure production performance and complicate maintenance workflows. The ABB ADATX110 3ASC25H209 directly addresses this by acting as a protocol gateway within the AC500 platform, translating PROFIBUS-DP fieldbus data into formats accessible to EtherNet/IP and Modbus TCP networks without requiring additional standalone gateway hardware.

For sites where remote monitoring is a priority, the ADATX110 enables the AC500 to expose real-time I/O data to SCADA systems over standard industrial Ethernet, eliminating the need for technicians to physically access field panels to diagnose faults or verify signal states. Alarm conditions detected at the I/O level are propagated immediately through the communication chain to HMI displays and SCADA alarm servers, reducing mean time to response (MTTR) and minimizing unplanned downtime.

Production line transparency — the ability to see exactly what every machine and sensor is doing at any given moment — is achievable when the ADATX110 is deployed as part of a well-structured AC500 network. By consolidating I/O data from multiple field devices into a single, coherent data model accessible to the PLC and upper systems, the module eliminates the information gaps that typically exist between isolated control islands.

System scalability is built into the ADATX110’s design philosophy. As production requirements grow, additional I/O modules and remote nodes can be added to the AC500 network without redesigning the communication architecture. The PROFIBUS-DP bus supports up to 126 addressable nodes, and EtherNet/IP segments can be extended with standard industrial switches, making the ADATX110-based network a long-term investment rather than a point solution.

Every unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying communication integrity, I/O channel accuracy, and protocol handshake behavior. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty, ensuring confidence in both product quality and supply chain reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB ADATX110 3ASC25H209 support, and is it compatible with third-party PROFIBUS masters?
The ADATX110 supports PROFIBUS-DP (V0/V1), Modbus RTU, Modbus TCP, and EtherNet/IP. It is fully compatible with any PROFIBUS-DP master that conforms to the IEC 61158 standard, including third-party PLCs and SCADA gateways, making it suitable for multi-vendor automation environments.

Q2: How does the ADATX110 perform in terms of communication latency and network stability under high I/O load?
The module is designed for deterministic, cyclic data exchange within the AC500 backplane and over PROFIBUS-DP. Under typical industrial load conditions, communication latency remains within the millisecond range, and the PROFIBUS-DP physical layer provides robust noise immunity suitable for electrically demanding factory environments. Network stability is further ensured by the AC500’s watchdog and diagnostic mechanisms, which detect and report communication faults in real time.

Q3: Can the ADATX110 be used to expand an existing AC500 system without replacing the current CPU or I/O infrastructure?
Yes. The ADATX110 is designed as an expansion module within the AC500 architecture and can be added to existing installations without requiring CPU replacement or significant reconfiguration. It integrates via the AC500 backplane and is recognized automatically by the AC500 engineering tool (Automation Builder), simplifying commissioning and reducing integration time.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All ABB ADATX110 3ASC25H209 units supplied by ZYPLC are tested for communication functionality, I/O channel integrity, and protocol compliance before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly, and our technical team is available to support installation and troubleshooting queries throughout the warranty period.
