ABB AGDR-61C Industrial Network Interface for ACS800 Systems

ABB AGDR-61C: Industrial Data Link and Smart Factory Drive Connectivity for ACS800 Systems

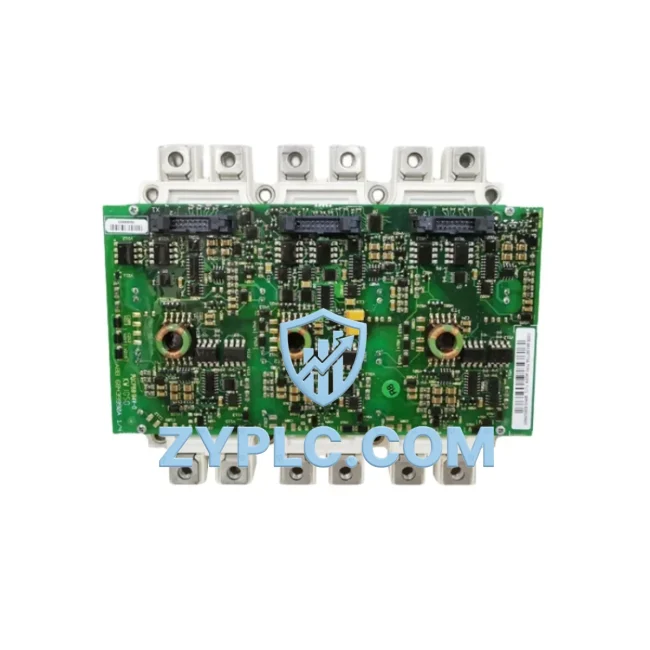

The ABB AGDR-61C (SKU: AGDR-61C FS450R17KE3 64783831) is a precision-engineered IGBT gate driver kit designed for seamless integration within the ABB ACS800 series of industrial AC drives. Far beyond a simple power switching component, the AGDR-61C functions as a critical node in the industrial data chain — bridging the gap between high-voltage power conversion and the digital control networks that govern modern smart factory operations. Whether deployed in heavy motor control applications, regenerative drive systems, or multi-axis automation platforms, this gate driver ensures that switching commands from the drive’s control board are translated into precise, low-latency gate signals for the FS450R17KE3 IGBT module (part number 64783831), maintaining system integrity across the full operational cycle.

Network Communication Table

Connected Automation Data Flow

In a fully connected smart factory, the ABB AGDR-61C sits at the intersection of power electronics and industrial communication. The data flow begins at the field level: sensors and encoders feed real-time speed, torque, and temperature signals into the ABB ACS800 drive’s control unit. The drive’s RMIO control board processes these signals and issues PWM gate commands through the fiber optic DDCS link to the AGDR-61C, which then drives the FS450R17KE3 IGBT module with microsecond-level precision.

Upstream, the ACS800 drive communicates with plant-level systems via fieldbus adapter modules such as the RPBA-01 PROFIBUS adapter or the RCAN-01 CANopen module, enabling the drive to receive setpoints and report status to a Siemens S7-300 PLC or Allen-Bradley ControlLogix controller on the automation network. The PLC aggregates drive data and forwards it to a Wonderware InTouch SCADA or ABB System 800xA DCS platform, where operators monitor motor current, drive fault codes, and energy consumption in real time.

At the edge, an ABB AC500 PLC or a dedicated Moxa MGate industrial gateway may serve as a protocol bridge, converting PROFIBUS-DP data from the ACS800 network into Modbus TCP or EtherNet/IP for integration with MES and ERP systems. Remote I/O modules such as the ABB CI854 PROFIBUS interface extend the network reach to distributed field devices — including variable-speed pumps, conveyor motors, and compressor drives — all of which rely on properly functioning gate drivers like the AGDR-61C to execute control commands without delay or signal distortion.

For HMI visualization, operators interact with drive parameters through ABB CP600 panel PCs or third-party HMI terminals connected via Modbus RTU, while alarm and diagnostic data from the AGDR-61C’s fault output circuit is routed back through the drive’s digital I/O to the PLC and ultimately to the SCADA alarm management system. This closed-loop data architecture — from sensor to gate driver to drive to PLC to SCADA — is what defines true industrial connectivity, and the AGDR-61C is an indispensable link in that chain.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation: drives, motors, and power electronics that operate in silos, unable to share status information with the broader control network. The ABB AGDR-61C directly addresses this problem by enabling the ACS800 drive to participate fully in the plant’s communication architecture.

When IGBT gate drivers fail or degrade, the result is not just a tripped drive — it is a blind spot in the production data chain. Fault codes go unreported, motor performance deviates from setpoints, and maintenance teams lose visibility into the root cause of downtime. By replacing a failed gate driver with a genuine AGDR-61C, engineers restore the drive’s ability to accurately report switching events, thermal status, and fault conditions back to the PLC and SCADA system, eliminating the data gap that unplanned downtime creates.

For multi-drive systems running coordinated motion profiles — such as winding lines, rolling mills, or crane systems — protocol consistency across all ACS800 drives is essential. A single degraded gate driver can introduce timing jitter into the DDCS fiber optic network, causing synchronization errors that cascade across the entire drive chain. The AGDR-61C’s isolated fiber optic interface ensures that gate signals remain clean and protocol-compliant, supporting stable multi-drive communication even in electrically noisy environments.

Remote diagnostics are equally important. With the ACS800 connected to a SCADA or DCS platform, maintenance engineers can monitor IGBT junction temperature estimates, DC bus voltage, and output current waveforms from a central control room — or even remotely via VPN — without physically accessing the drive cabinet. This capability depends entirely on the gate driver operating correctly and reporting accurate switching data. The AGDR-61C supports this transparency by maintaining signal fidelity across the full load range, from light-duty cycling to continuous full-load operation.

Every ABB AGDR-61C unit supplied by ZYPLC undergoes pre-shipment functional testing to verify gate signal integrity, isolation resistance, and compatibility with the FS450R17KE3 IGBT module. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty, ensuring that your production line stays connected, monitored, and fully operational.

Industrial Connectivity FAQ

Q1: Does the ABB AGDR-61C support PROFIBUS or EtherNet/IP communication directly?
The AGDR-61C itself is a gate driver operating at the power electronics level and does not directly handle fieldbus protocols. However, the ACS800 drive it supports is fully compatible with PROFIBUS-DP, DeviceNet, CANopen, and Modbus RTU via ABB’s RPBA-01, RDNA-01, and RCAN-01 adapter modules, enabling complete integration with PLC and SCADA networks.

Q2: What is the communication latency between the ACS800 control board and the AGDR-61C gate driver?
The AGDR-61C uses a fiber optic isolated interface for gate signal transmission, achieving sub-microsecond propagation delay. This ensures that PWM commands from the RMIO control board are executed with the timing precision required for high-performance motor control and multi-drive synchronization over the DDCS network.

Q3: Can the AGDR-61C be used in a system with mixed ABB and third-party drives on the same SCADA network?
Yes. The ACS800 drive, equipped with the AGDR-61C, can coexist on a shared SCADA or DCS network alongside third-party drives, provided that a compatible fieldbus gateway or protocol converter (such as a Moxa MGate or HMS Anybus gateway) is used to normalize communication protocols. The AGDR-61C’s role is to ensure the ACS800’s power stage operates reliably, while the drive’s communication adapters handle network-level protocol translation.

Q4: What warranty and testing does ZYPLC provide for the AGDR-61C?
All AGDR-61C units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including gate signal verification, isolation resistance measurement, and IGBT module compatibility checks. Stock is available for immediate dispatch with full export documentation.
