ABB AGDR-76C 68436800A Industrial Network Interface for ACS800 Systems

ABB AGDR-76C 68436800A Industrial Network Interface for ACS800 Systems: Bridging the Smart Factory Data Link

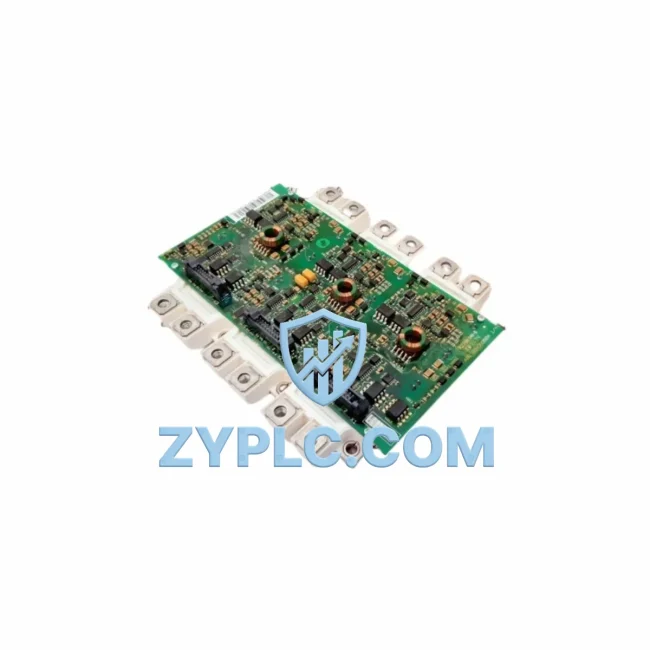

The ABB AGDR-76C 68436800A is a precision-engineered IGBT gate driver board designed for the ABB ACS800 series variable frequency drives. Far beyond its role as a power switching interface, this module serves as a critical node in the industrial data chain — enabling real-time signal acquisition, drive-level diagnostics, and seamless integration with upper-level control and monitoring systems across smart factory environments. With its robust design, verified outgoing inspection, and 12-month warranty coverage, the AGDR-76C 68436800A is a trusted component for engineers maintaining high-availability production lines.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the ABB AGDR-76C 68436800A sits at the intersection of power electronics and industrial communication. The data flow begins at the field level: sensors and encoders feed real-time motor speed, torque, and thermal data into the ACS800 drive. The AGDR-76C gate driver board receives switching commands from the ABB RDCU-02C drive control unit via fiber-optic links, translating digital control signals into precise IGBT gate pulses that regulate motor output with microsecond accuracy.

These drive-level signals are simultaneously monitored by the ABB RMIO-11C I/O and communications board, which aggregates drive status, fault codes, and operational parameters. This data is then passed upstream through fieldbus adapters — such as the ABB RPBA-01 PROFIBUS adapter or the ABB RCAN-01 CANopen adapter — to the plant’s PLC layer. A Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller receives this structured drive data over PROFIBUS DP or EtherNet/IP, enabling closed-loop process control across the production line.

At the supervisory level, an ABB AC500 PLC or a third-party SCADA gateway aggregates data from multiple ACS800 drives, remote I/O modules, and HMI panels. The ABB CP600 HMI displays real-time drive performance dashboards, alarm histories, and energy consumption trends. Simultaneously, an industrial edge gateway — such as the ABB Ability™ Edge — pushes drive telemetry to cloud-based analytics platforms, enabling predictive maintenance scheduling based on IGBT thermal cycling data captured at the AGDR-76C board level.

Remote I/O modules connected via PROFINET or Modbus TCP relay field sensor data — temperature, vibration, current — back through the network to the drive controller, where the AGDR-76C responds dynamically to load changes. This complete data loop, from IGBT gate switching to SCADA visualization, ensures that the ACS800 drive system operates with full transparency, minimal latency, and maximum uptime in demanding industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — where drive-level faults, energy anomalies, and performance degradation remain invisible to upper-level control systems until a costly breakdown occurs. The ABB AGDR-76C 68436800A directly addresses this by maintaining the integrity of the gate drive signal chain, which is the foundation of all drive-level data communication.

When the AGDR-76C board fails or degrades, the ACS800 drive loses its ability to accurately switch IGBT modules, resulting in distorted output waveforms, overcurrent faults, and drive trips. These events cascade upward: the RDCU control board logs fault codes, the RMIO board transmits alarm signals over the fieldbus, and the SCADA system registers an unplanned stop. By maintaining a verified, in-stock supply of AGDR-76C 68436800A boards with 12-month warranty assurance, plant engineers can execute rapid board-swap maintenance — restoring the data link between the drive and the control network within hours rather than days.

For multi-drive cabinet installations, where several ACS800 units share a common DC bus and communicate over a fiber-optic ring, a single degraded AGDR-76C can introduce timing errors that affect the entire drive group. Proactive replacement using genuine ABB boards ensures protocol consistency across the network, eliminates communication jitter, and supports the drive system’s integration with plant-wide SCADA, MES, and ERP platforms. This approach transforms reactive maintenance into a transparent, data-driven production strategy — the cornerstone of Industry 4.0 connectivity.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB AGDR-76C 68436800A support within the ACS800 drive system?
The AGDR-76C operates on ABB’s internal fiber-optic gate drive communication protocol, interfacing directly with the RDCU-02C control board. At the system level, the ACS800 drive supports PROFIBUS DP, CANopen, Modbus RTU, DeviceNet, and EtherNet/IP through optional fieldbus adapter modules (RPBA-01, RCAN-01, RDNA-01), enabling full integration with plant PLC and SCADA networks.

Q2: How does the AGDR-76C 68436800A affect network stability and communication latency in multi-drive systems?
The AGDR-76C ensures precise, low-jitter IGBT switching that directly impacts the drive’s ability to maintain stable fieldbus communication. A degraded gate driver board can introduce timing irregularities that manifest as communication timeouts or fault bursts on the PROFIBUS or PROFINET network. Replacing with a verified AGDR-76C 68436800A restores switching precision and eliminates network instability caused by drive-level hardware faults.

Q3: Can the ABB AGDR-76C 68436800A be used in ACS800 multi-drive and regenerative drive configurations?
Yes. The AGDR-76C 68436800A is compatible with ACS800 single-drive, multi-drive, and regenerative drive (ISU) cabinet configurations. In multi-drive systems, each inverter module requires its own AGDR-76C board, and all boards must be of matching specification to ensure synchronized IGBT switching across the shared DC bus. Our stock is verified against ABB’s original part number 68436800A for full compatibility.

Q4: What does the 12-month warranty cover, and how is outgoing testing performed?
Every ABB AGDR-76C 68436800A shipped from our inventory undergoes functional outgoing inspection, including gate signal integrity verification and visual inspection for component damage. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or refund is processed promptly upon confirmed fault diagnosis, ensuring minimal disruption to your production network.
