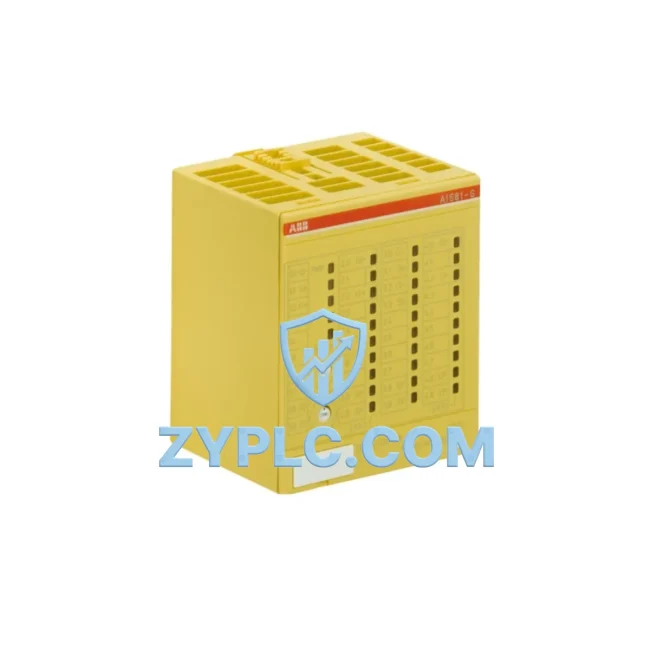

ABB AI581-S 1SAP282000R0001 Safety Analog Input for AC500-S

ABB AI581-S 1SAP282000R0001: Safety Analog Input for AC500-S Control System Architecture

The ABB AI581-S (order code 1SAP282000R0001) is a certified safety analog input module engineered for integration within the AC500-S safety PLC platform. Designed to meet SIL3 requirements per IEC 61508, this module occupies a critical position in layered automation architectures where reliable signal acquisition from field instruments directly influences the integrity of safety instrumented functions. Within a complete AC500-S control system, the AI581-S operates as the primary analog signal interface between safety-rated field devices—such as pressure transmitters, temperature sensors, and flow meters—and the safety CPU, enabling deterministic processing of 4–20 mA and voltage signals under fault-tolerant conditions.

Architecture Specification Table

Coordinated Control System Design

In a fully configured AC500-S safety architecture, the AI581-S functions alongside the SM560-S safety CPU, which serves as the central logic solver for all safety instrumented functions. The safety CPU processes analog values received from the AI581-S and executes certified safety function blocks to determine trip conditions and safe-state transitions. Power to the entire safety rack is supplied by the TA523 power supply module, which provides regulated 24 VDC with built-in diagnostics to ensure uninterrupted operation of all safety I/O modules.

For digital safety signals, the DI581-S safety digital input module complements the AI581-S by handling binary inputs from emergency stop circuits, guard switches, and limit sensors. Together, these modules form a comprehensive field signal interface that covers both continuous process variables and discrete safety interlocks. On the output side, the AO581-S safety analog output module enables closed-loop safety control by driving safety-rated actuators such as control valves in emergency shutdown systems.

Communication between the safety domain and the standard automation layer is managed through the CI590-CS communication interface module, which bridges the AC500-S safety network with PROFINET or Modbus TCP networks. This allows the standard AC500 PM5xx series controllers to access safety status data for visualization and non-safety-related control coordination without compromising the independence of the safety function. The TB5xx terminal base units provide the physical wiring interface for each I/O module, ensuring secure cable termination and simplified maintenance during module replacement.

For applications requiring extended I/O capacity, the DC532 I/O expansion module enables additional standard analog and digital channels to be deployed within the same rack, while the CI592-CS coupler extends the safety I/O bus across multiple racks in large-scale installations. The HMI layer, typically implemented with ABB CP600 series operator panels, provides real-time visualization of safety system diagnostics, alarm states, and channel-level signal quality indicators sourced from the AI581-S.

Application in Layered Automation Systems

The AI581-S is deployed across a wide range of safety-critical process industries. In petrochemical facilities, it acquires analog signals from pressure and temperature transmitters installed on reactors and distillation columns, feeding real-time data to the safety logic solver for emergency shutdown (ESD) and high-integrity pressure protection systems (HIPPS). In power generation plants, the module monitors turbine bearing temperatures and boiler drum levels, providing the safety CPU with the continuous measurements necessary to initiate protective trips before equipment damage occurs.

Water treatment and distribution systems utilize the AI581-S to monitor chlorine residual levels, flow rates, and tank pressures within SIL-rated control loops that protect public health and prevent environmental discharge violations. In mining and mineral processing, the module interfaces with gas detection sensors and conveyor belt monitoring instruments, ensuring that hazardous atmosphere conditions or mechanical failures trigger immediate safe-state responses.

Pharmaceutical manufacturing environments rely on the AI581-S for monitoring critical process parameters such as vessel temperature and pressure during batch reactions, where deviations must be detected within deterministic time frames to prevent product contamination or runaway reactions. The module’s 16-bit resolution and individual channel diagnostics—including open-wire detection, short-circuit monitoring, and signal range validation—ensure that measurement integrity is maintained throughout the safety function lifecycle.

From an engineering and maintenance perspective, the AI581-S supports online diagnostics and partial stroke testing coordination, reducing planned downtime during proof test intervals. Its integration within the AC500-S ecosystem ensures that firmware updates, configuration changes, and safety validation can be performed using ABB’s Automation Builder engineering tool, maintaining consistency across the entire safety instrumented system.

Architecture Engineering FAQ

Q1: What CPU is required to operate the AI581-S in a SIL3 safety loop?
The AI581-S requires the ABB SM560-S safety CPU as the logic solver. The SM560-S executes certified safety function blocks and communicates with the AI581-S over the dedicated safety I/O bus. Both modules must be mounted on a compatible AC500-S backplane with the TA523 power supply providing regulated 24 VDC.

Q2: Can the AI581-S coexist with standard AC500 I/O modules in the same rack?
Yes. The AC500-S architecture supports mixed configurations where safety modules (AI581-S, DI581-S, AO581-S) and standard I/O modules share the same physical rack. However, safety and standard domains remain logically separated, with the CI590-CS communication interface managing data exchange between the safety CPU and standard PM5xx controllers.

Q3: What is the warranty and long-term support for the AI581-S?
All AI581-S modules supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects and functional failures. ZYPLC maintains ready stock for the AC500-S safety module family, ensuring rapid replacement and minimal downtime for critical safety systems. Technical support includes architecture consultation, compatibility verification, and commissioning guidance.
