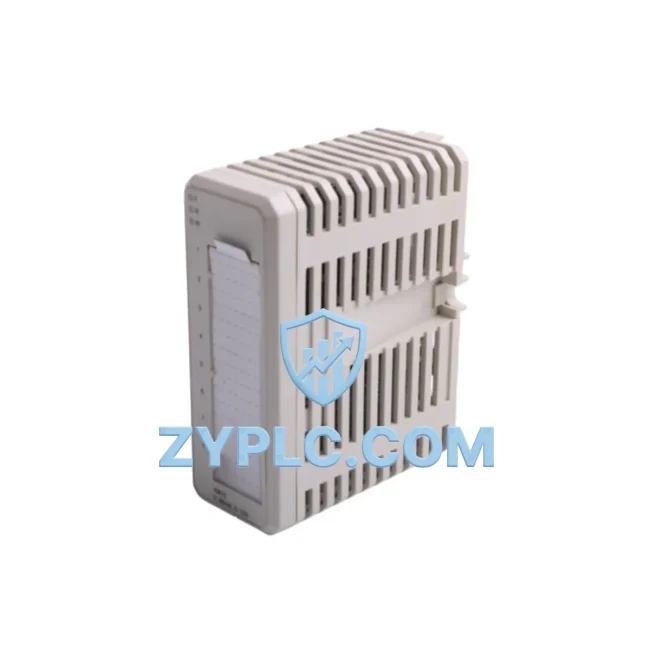

ABB AI810 3BSE008516R1 Industrial Network Interface for Freelance Systems

ABB AI810 3BSE008516R1: Industrial Data Link for Freelance DCS Smart Factory Connectivity

The ABB AI810 3BSE008516R1 is an 8-channel HART-enabled analog input module engineered for the ABB Freelance distributed control system (DCS). Designed to serve as a critical node in the industrial data chain, the AI810 bridges field-level instrumentation — including pressure transmitters, flow meters, temperature sensors, and level gauges — with the upper-layer control and monitoring infrastructure of modern smart factories. By supporting the HART (Highway Addressable Remote Transducer) protocol over standard 4–20 mA analog loops, this module enables simultaneous analog signal acquisition and digital communication, delivering real-time process data to the Freelance DCS controller without additional wiring overhead.

In a typical Freelance automation architecture, the AI810 3BSE008516R1 sits at the I/O layer, collecting field signals from HART-compatible transmitters and forwarding structured process values to the AC800F controller via the internal DCS backplane. This seamless data path supports high-resolution signal acquisition at the field edge, enabling the control system to execute PID loops, alarm management, and interlock logic with sub-second response times. The module’s HART pass-through capability also allows SCADA and asset management platforms — such as ABB Asset Vision or third-party OPC-UA-based systems — to access device diagnostics, calibration data, and health status directly from the field instrument, without interrupting the live process loop.

Network Communication Table

Connected Automation Data Flow

The ABB AI810 3BSE008516R1 operates at the heart of a layered industrial communication architecture. At the field level, HART-enabled transmitters — such as ABB’s own TTF300 temperature transmitters or EDP300 pressure sensors — connect directly to the AI810’s input terminals. The module reads both the 4–20 mA primary variable and the HART digital signal simultaneously, passing structured process data upward through the Freelance DCS backplane to the AC800F controller, which executes real-time control logic and communicates with the plant network via Ethernet TCP/IP.

Within the same Freelance I/O rack, the AI810 typically operates alongside complementary modules such as the AO810 3BSE008522R1 analog output module — which drives control valves and actuators based on the AI810’s measured inputs — and the DI810 3BSE008508R1 digital input module, which captures discrete status signals from motor starters, limit switches, and safety interlocks. Together, these modules form a complete field I/O layer that feeds the AC800F’s control strategy with both analog and digital process data.

For remote I/O expansion across large plant areas, the Freelance system supports the S800 I/O remote I/O family, which can be distributed across PROFIBUS DP segments and connected back to the AC800F via the CI854 PROFIBUS DP communication interface. This architecture allows the AI810 to coexist with PROFIBUS-connected field devices — including ABB ACS880 variable frequency drives and Endress+Hauser Promag flow transmitters — within a unified DCS data model. The SCADA layer, typically running on ABB’s 800xA System or a third-party platform via OPC-DA/OPC-UA, aggregates all field data into a single operational dashboard, enabling operators to monitor process trends, acknowledge alarms, and initiate remote diagnostics from the control room.

At the edge, an ABB Ability Edge Gateway or compatible industrial PC running OPC-UA server software can extract HART device data from the AI810 and forward it to cloud-based analytics platforms or MES systems, closing the loop between field instrumentation and enterprise-level production intelligence. This end-to-end data chain — from HART transmitter through AI810, AC800F, SCADA, and edge gateway — exemplifies the connected automation architecture that defines Industry 4.0 smart factory deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is data isolation: field instruments generate valuable process data, but that data remains trapped at the device level due to protocol incompatibilities, aging I/O infrastructure, or the absence of digital communication pathways. The ABB AI810 3BSE008516R1 directly addresses this problem by enabling HART communication over existing 4–20 mA wiring — eliminating the need for costly rewiring projects while unlocking digital device data that was previously inaccessible.

In plants where multiple control systems coexist — for example, a Freelance DCS managing process control alongside a Siemens S7-300 PLC handling packaging line automation — the AI810’s HART data can be routed through an OPC-UA gateway to a unified SCADA platform, breaking down the data silos between different automation islands. This protocol-agnostic data aggregation enables plant-wide transparency: operators can view real-time process values, device health indicators, and calibration status from all connected instruments on a single HMI screen, regardless of the underlying field protocol.

For remote monitoring and diagnostics, the AI810’s HART pass-through capability allows maintenance engineers to access instrument-level data — including sensor drift indicators, loop integrity checks, and device configuration parameters — from the control room or via secure remote access, without dispatching technicians to the field. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies that minimize unplanned downtime. As production requirements evolve, the Freelance DCS architecture supports seamless system expansion: additional AI810 modules can be added to existing I/O racks, and new PROFIBUS or HART segments can be integrated without disrupting live production, ensuring that the control system scales with the plant’s growing connectivity needs.

Industrial Connectivity FAQ

Q1: Does the ABB AI810 3BSE008516R1 support HART communication on all 8 channels simultaneously?
Yes. The AI810 3BSE008516R1 supports HART protocol on all 8 analog input channels simultaneously. Each channel can read both the 4–20 mA primary variable and the HART digital signal concurrently, enabling real-time process measurement alongside digital device communication without any channel switching or multiplexing delay.

Q2: Is the AI810 compatible with third-party SCADA systems via OPC?
Yes. When integrated with the ABB Freelance DCS and AC800F controller, the AI810’s process data is accessible to third-party SCADA and MES platforms via OPC-DA or OPC-UA server interfaces. This ensures broad system compatibility and supports multi-vendor automation environments where data from the AI810 must be consolidated with inputs from other PLCs, drives, or field devices.

Q3: What is the communication latency for HART data acquisition through the AI810?
HART communication over the AI810 operates at the standard HART protocol speed of 1200 baud, with typical device response times of 250–500 ms per HART command. For time-critical process control, the primary 4–20 mA analog signal is read at the DCS scan rate (typically 100–500 ms), ensuring that control loop performance is not affected by HART communication overhead.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the AI810 3BSE008516R1?
All ABB AI810 3BSE008516R1 modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify channel integrity, HART communication capability, and backplane interface compatibility before dispatch. Units are shipped via DHL or FedEx Express with full tracking, and our technical team is available to support installation, configuration, and commissioning queries post-delivery.
