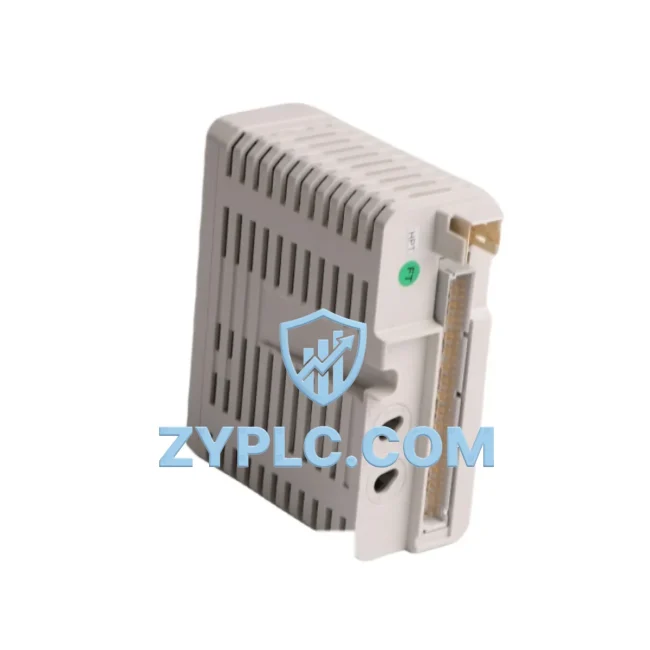

ABB AI815 3BSE052604R1 Industrial Network Interface for AC800M Systems

ABB AI815 3BSE052604R1: Industrial Data Link for AC800M Smart Factory Networks

The ABB AI815 3BSE052604R1 is a high-performance analog input module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to serve as a critical node in industrial data acquisition chains, the AI815 bridges the gap between field-level instrumentation and upper-layer control, SCADA, and MES systems. With robust multi-protocol support and deterministic signal processing, this module enables seamless, real-time data flow across the full automation hierarchy — from sensor to cloud.

In modern smart factory environments, the integrity and continuity of analog signal data is foundational to process transparency, predictive maintenance, and regulatory compliance. The AI815 3BSE052604R1 delivers on all fronts, providing stable, low-latency analog input acquisition that feeds directly into the AC800M controller’s process execution engine, ensuring that every measurement — whether from a pressure transmitter, thermocouple, or flow sensor — is captured, converted, and transmitted with precision.

Network Communication Table

Connected Automation Data Flow

The ABB AI815 3BSE052604R1 sits at the heart of a layered industrial communication architecture. At the field level, analog signals from pressure transmitters, temperature sensors, and flow meters are wired directly into the AI815’s input channels. The module performs high-resolution analog-to-digital conversion and passes structured process data upstream via the ABB S800 I/O Bus to the AC800M CPU module — such as the PM866 or PM891 processor units — which execute the control logic in real time.

Within the AC800M rack, the AI815 operates alongside complementary modules including the AO815 analog output module for closed-loop control, the DI810 digital input module for discrete signal acquisition, and the DO810 digital output module for actuator commands. This tightly integrated I/O architecture ensures that the controller has a complete, synchronized view of the process at every scan cycle.

For network-level communication, the AC800M system connects to plant-wide infrastructure via the CI854 Profibus DP communication interface, enabling the AI815’s data to be shared with remote I/O stations, variable frequency drives (VFDs), and third-party field devices on the Profibus segment. Simultaneously, the CI873 Industrial Ethernet interface provides high-speed connectivity to the SCADA layer, where platforms such as ABB System 800xA aggregate, visualize, and archive process data from across the plant.

At the edge, ABB Ability™ Edge gateways can subscribe to real-time data streams from the AC800M, enabling cloud-based analytics, OEE monitoring, and predictive maintenance workflows. HMI panels — including ABB CP600 series operator panels — display live analog values sourced from the AI815, giving operators immediate visibility into critical process parameters without latency.

For installations requiring protocol bridging between legacy Modbus RTU devices and modern Profibus or Ethernet networks, the AI815 ecosystem integrates naturally with Anybus X-gateway or HMS Industrial Networks protocol converters, ensuring backward compatibility without compromising data integrity or scan performance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and upper-layer systems operate in disconnected silos, preventing plant-wide visibility and coordinated control. The ABB AI815 3BSE052604R1 directly addresses this challenge by serving as a standardized, protocol-agnostic analog data acquisition point within the AC800M architecture.

In legacy installations, analog signals from sensors and transmitters were often hardwired point-to-point to standalone controllers, making it difficult to aggregate data across production lines or share process values with SCADA and MES systems. The AI815, integrated into the AC800M’s distributed I/O network, eliminates this bottleneck by converting analog field signals into structured digital data that flows seamlessly through the Profibus DP backbone and Industrial Ethernet to every authorized system on the network.

For facilities undergoing digital transformation, the AI815 enables production line transparency by making previously invisible analog process variables — temperatures, pressures, flow rates, levels — available in real time to SCADA dashboards, historian databases, and cloud analytics platforms. This visibility is the foundation of predictive maintenance programs, where deviations from baseline analog trends trigger early warnings before equipment failure occurs.

Remote diagnostics are equally enhanced. Maintenance engineers can interrogate the AI815’s channel status, signal quality, and fault flags remotely via the AC800M’s diagnostic services, reducing the need for on-site inspection and accelerating mean time to repair (MTTR). Combined with the module’s built-in self-test routines and the AC800M’s redundancy options, the AI815 supports continuous operation even in demanding process environments.

System expansion is straightforward: additional AI815 modules can be added to the S800 I/O bus without reconfiguring the network backbone, making it easy to scale analog input capacity as production requirements grow. Each new module is automatically recognized by the AC800M controller and integrated into the control application with minimal engineering effort.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB AI815 3BSE052604R1 support, and is it compatible with third-party SCADA systems?
The AI815 communicates natively over the ABB S800 I/O Bus and integrates with the AC800M controller, which supports Profibus DP, Modbus RTU/TCP, and Industrial Ethernet (via dedicated CI-series communication interfaces). This makes the module compatible with major SCADA platforms including ABB System 800xA, Siemens WinCC, Wonderware InTouch, and Ignition, provided the appropriate communication interface module is installed in the AC800M rack.

Q2: How does the AI815 handle network stability and signal integrity in electrically noisy industrial environments?
The AI815 3BSE052604R1 is designed to ABB’s industrial-grade specifications, incorporating galvanic isolation on analog input channels to reject common-mode noise and ground loops. The S800 I/O Bus uses a deterministic, cyclic communication protocol that guarantees consistent scan times regardless of network load, ensuring that analog data arrives at the controller with predictable latency — typically within a single scan cycle of less than 10 ms.

Q3: Can the AI815 be used in system expansion projects, and how many modules can be added to a single AC800M rack?
Yes. The AC800M S800 I/O Bus supports up to 12 I/O modules per local bus segment, and multiple bus segments can be connected via the CI801 or CI830 bus extenders to support larger installations. AI815 modules can be mixed freely with other S800 I/O types — analog outputs, digital inputs, digital outputs — within the same rack, providing flexible configuration for any process control application.

Q4: What does the 12-month warranty cover, and has the AI815 3BSE052604R1 been tested before shipment?
Every ABB AI815 3BSE052604R1 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying channel accuracy, bus communication, and module self-diagnostics. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides pre-sales application support and post-sales troubleshooting to ensure successful integration into your AC800M system.

—
