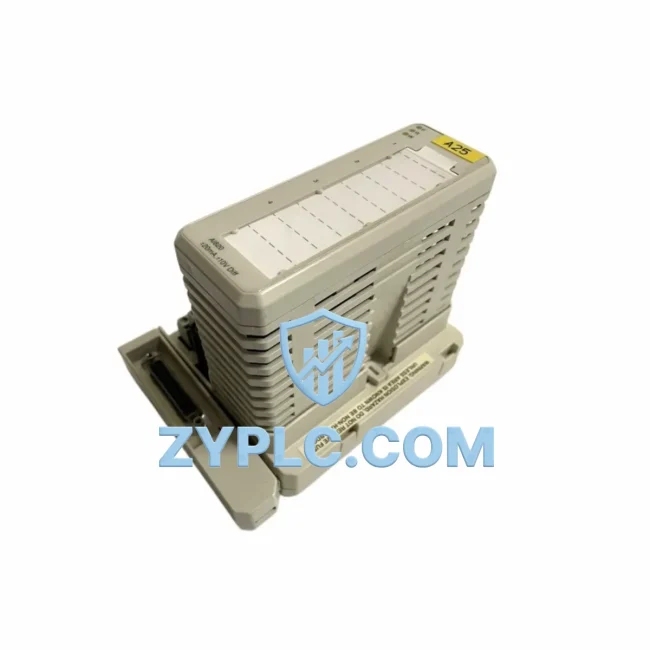

ABB AI820 3BSE008544R1 Analog Input Module for AC800M Systems

ABB AI820 3BSE008544R1 Analog Input Module: Industrial Data Link for AC800M DCS Networks

The ABB AI820 3BSE008544R1 is a high-performance analog input module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, the AI820 bridges the gap between field-level instrumentation and upper-layer control systems — enabling seamless signal acquisition, real-time data transmission, and intelligent process monitoring across complex industrial environments.

In modern smart factory architectures, the integrity of the data link between field devices and control systems is paramount. The AI820 3BSE008544R1 accepts standard 4–20 mA analog signals from transmitters, sensors, and field instruments, converting them into precise digital values that feed directly into the AC800M controller’s process logic. With HART protocol support, the module enables two-way digital communication over the same analog wiring, allowing engineers to perform remote diagnostics, device configuration, and predictive maintenance without interrupting live production.

Network Communication Table

Connected Automation Data Flow

The ABB AI820 3BSE008544R1 sits at the heart of a layered industrial communication architecture. At the field level, process transmitters — such as pressure, temperature, flow, and level sensors — output 4–20 mA signals that are captured by the AI820’s eight input channels. These signals are digitized and passed through the S800 I/O bus to the ABB AC800M controller, where the process logic executes in real time.

Within the AC800M rack, the AI820 works in close coordination with companion modules such as the ABB AO820 3BSE008546R1 analog output module and the ABB DI810 3BSE008508R1 digital input module, forming a complete I/O subsystem capable of handling both analog and discrete process variables. For applications requiring expanded I/O capacity, the AI820 can be deployed across multiple S800 I/O clusters connected via ModuleBus optical fiber links, extending the data network across large plant areas without signal degradation.

At the network layer, the AC800M controller communicates upstream with ABB System 800xA — the integrated SCADA and DCS platform — via Ethernet TCP/IP and OPC DA/UA interfaces. This allows operators at the 800xA HMI workstation to visualize real-time analog values, configure alarm thresholds, and generate trend reports based on data streamed directly from the AI820 channels. For sites running parallel SCADA systems, the AC800M’s open communication architecture also supports integration with third-party platforms via Modbus TCP and PROFIBUS DP gateways.

In drive and motor control applications, the AI820 captures speed reference and feedback signals from ABB ACS880 variable frequency drives, enabling closed-loop control through the AC800M. For remote field stations, the module’s HART capability allows the ABB Asset Vision Basic handheld communicator or a HART multiplexer to poll device diagnostics without breaking the 4–20 mA loop — a critical feature for unmanned substations and remote pump stations. Edge computing nodes, such as the ABB Edge Controller, can further aggregate AI820 data streams for local analytics and cloud forwarding, completing the digital thread from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across heterogeneous systems. Legacy field devices often communicate over proprietary analog loops with no digital diagnostics, creating data silos that prevent operators from gaining a unified view of plant performance. The ABB AI820 3BSE008544R1 directly addresses this problem by combining standard 4–20 mA signal acquisition with HART digital overlay — allowing existing wiring infrastructure to carry both process values and device health data simultaneously.

In plants where multiple control platforms coexist, the AI820’s integration within the AC800M ecosystem enables protocol normalization at the controller level. Raw analog signals from diverse field instruments are converted into standardized process variables that can be shared across SCADA, MES, and ERP layers via OPC UA — eliminating the need for custom protocol converters at every integration point. This architecture dramatically reduces engineering overhead when expanding production lines or integrating new equipment.

For remote monitoring applications — such as offshore platforms, water treatment facilities, or distributed energy sites — the AI820’s HART transparency enables remote diagnostics without physical site visits. Maintenance teams can interrogate connected HART devices from a central control room, retrieve device status, calibration data, and fault codes, and schedule predictive maintenance based on actual device condition rather than fixed intervals. This capability directly supports the transition from reactive to condition-based maintenance strategies.

Production line transparency is further enhanced by the AI820’s high-resolution 12-bit conversion, which ensures that subtle process variations — such as gradual sensor drift or early-stage equipment wear — are captured and reported before they escalate into unplanned downtime. Combined with the AC800M’s redundancy options and the System 800xA alarm management framework, the AI820 forms a robust foundation for continuous, transparent, and scalable industrial data acquisition.

Industrial Connectivity FAQ

Q1: Does the ABB AI820 3BSE008544R1 support HART communication for remote diagnostics?
Yes. The AI820 supports HART protocol on all analog input channels, enabling two-way digital communication over standard 4–20 mA wiring. This allows remote device configuration, status polling, and predictive diagnostics without interrupting the live process signal — ideal for unmanned or hard-to-access field locations.

Q2: Is the AI820 compatible with third-party SCADA systems beyond ABB System 800xA?
Yes. When integrated with the AC800M controller, the AI820’s data is accessible via OPC DA/UA, Modbus TCP, and PROFIBUS DP interfaces, making it compatible with a wide range of SCADA and HMI platforms including Wonderware, Ignition, Siemens WinCC, and others. Protocol gateway modules within the AC800M architecture handle the translation transparently.

Q3: What is the network stability and scan cycle performance of the AI820 in a large DCS configuration?
The AI820 communicates over the S800 ModuleBus with deterministic scan cycles, ensuring consistent data delivery to the AC800M controller even in large I/O configurations. The module supports hot-swap replacement without system shutdown, and the AC800M’s redundant controller options further guarantee network continuity in mission-critical applications.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ABB AI820 3BSE008544R1?
All ABB AI820 3BSE008544R1 modules supplied by ZYPLC are covered by a 12-month warranty and undergo functional testing prior to shipment. Each unit is verified for channel integrity, communication response, and physical condition. Global express shipping via DHL and FedEx is available, with typical lead times of 3–7 business days. Contact our team for real-time stock confirmation and volume pricing.
