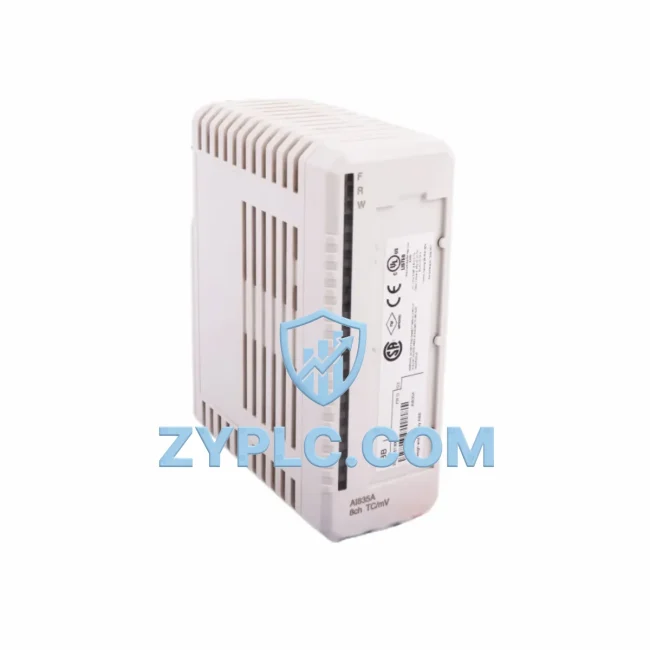

ABB AI835A Analog Input Module for Advant OCS

ABB AI835A Industrial Network Interface for Advant OCS Systems

The ABB AI835A is a high-performance 8-channel HART analog input module engineered for the ABB Advant OCS and AC450 Distributed Control System (DCS) platform. In modern smart factory environments, the ability to reliably acquire field-level signals, convert them across protocols, and deliver real-time process data to supervisory systems is the foundation of operational transparency. The AI835A fulfills this role with precision — bridging the gap between field instrumentation and the plant-wide control network through robust HART communication and 4–20 mA analog signal processing.

Designed for continuous industrial operation, the AI835A supports simultaneous analog and digital HART communication on each of its eight channels, enabling engineers to retrieve device diagnostics, calibration data, and process variables from smart field instruments without interrupting the primary control loop. This dual-layer communication capability is what sets the AI835A apart in demanding process industries such as oil and gas, chemical processing, power generation, and water treatment.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Advant OCS architecture, the AI835A sits at the critical junction between field instrumentation and the plant control backbone. Field-mounted smart transmitters — such as pressure, temperature, and flow sensors communicating over HART — connect directly to the AI835A’s input channels. The module reads both the primary 4–20 mA process value and the secondary HART digital data stream simultaneously, feeding structured process data upward through the ABB Advant Controller AC450 backplane.

Within the AC450 rack, the AI835A works in coordination with companion modules such as the ABB AO810V2 analog output module and the ABB DI810 digital input module to form a complete I/O subsystem. The controller processes incoming signals and executes control logic, then dispatches commands through output modules to final control elements such as control valves and variable frequency drives. For sites running ABB TRIO-28.0/TL or similar power conditioning equipment, the AI835A’s stable analog acquisition ensures that power quality data from smart meters is accurately captured and forwarded to the SCADA layer.

At the supervisory level, the Advant OCS communicates with ABB System 800xA or third-party SCADA platforms via industrial Ethernet or proprietary fieldbus gateways. The AI835A’s HART data — including device status, loop diagnostics, and secondary variables — is made available to operators through HMI terminals such as the ABB CP635 operator panel, enabling real-time visualization of field device health without requiring physical inspection. Remote diagnostic sessions can be initiated from the engineering workstation, with HART pass-through allowing technicians to reconfigure smart instruments from the control room.

For plants expanding their network architecture, the AI835A integrates seamlessly with HART multiplexers and asset management systems such as ABB Asset Vision, which aggregates HART device data across hundreds of field instruments into a unified diagnostic dashboard. This connectivity layer supports predictive maintenance workflows — flagging instruments with degraded signal quality or calibration drift before they cause process upsets. In parallel, ABB S800 I/O remote I/O stations can extend the network reach to distant field areas, with data tunneled back to the central AC450 controller over the Advant fieldbus.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — field instruments that generate valuable diagnostic information but have no pathway to deliver it to operators or maintenance systems. The ABB AI835A directly addresses this problem by enabling HART communication on every analog input channel, transforming what would otherwise be a simple 4–20 mA signal into a rich, bidirectional data link.

In plants where multiple generations of control equipment coexist, protocol fragmentation is common. Older 4–20 mA-only instruments sit alongside newer HART-enabled smart devices, and without a capable input module, the digital data from smart instruments is simply discarded. The AI835A captures both signal types simultaneously, ensuring that no diagnostic information is lost regardless of the instrument generation. This eliminates the need for separate HART handheld communicators for routine diagnostics, reducing technician workload and accelerating fault resolution.

For remote monitoring applications, the AI835A’s HART data pathway enables operators to perform loop checks, zero/span adjustments, and device identification from the SCADA workstation — without dispatching field personnel. This capability is particularly valuable in hazardous areas where physical access is restricted or costly. Combined with the Advant OCS alarm management system, the AI835A supports automated alerting when instrument diagnostics indicate abnormal conditions, enabling proactive maintenance scheduling rather than reactive breakdown response.

System scalability is another area where the AI835A delivers long-term value. As production lines expand and new measurement points are added, additional AI835A modules can be inserted into the AC450 rack without architectural changes to the control system. The modular design of the Advant OCS platform means that I/O expansion is straightforward, and the consistent HART interface across all AI835A channels simplifies engineering and commissioning. For facilities planning a phased migration toward ABB System 800xA or other modern DCS platforms, the AI835A’s standardized signal interface ensures compatibility with migration tools and I/O marshalling strategies.

Every AI835A unit supplied by ZYPLC undergoes full functional testing prior to shipment, including channel-by-channel signal verification and HART communication validation. Stock is maintained for rapid dispatch, with global shipping available to support both planned maintenance and emergency replacement scenarios. All units are covered by a 12-month warranty, providing procurement teams with confidence in both product quality and supply continuity.

Industrial Connectivity FAQ

Q1: Does the ABB AI835A support simultaneous analog and HART communication on all 8 channels?
Yes. The AI835A supports concurrent 4–20 mA analog signal acquisition and HART digital communication on each of its eight input channels. There is no need to choose between analog and HART modes — both operate simultaneously, allowing the Advant OCS controller to process the primary process variable while the HART layer delivers device diagnostics and secondary variables.

Q2: Is the AI835A compatible with third-party HART instruments from other manufacturers?
Yes. HART is an open, internationally standardized protocol (IEC 62591), and the AI835A is compatible with any HART-compliant field instrument regardless of manufacturer. This includes smart transmitters from Emerson, Honeywell, Endress+Hauser, Yokogawa, and others. The module reads universal HART commands (Commands 0–3) from all compliant devices and passes device-specific data to the asset management layer.

Q3: What is the typical communication latency for HART data retrieval through the AI835A?
HART communication operates at 1200 baud, which is inherent to the HART protocol specification. For primary process variables (4–20 mA), update rates are determined by the Advant OCS scan cycle — typically 100–500 ms depending on configuration. HART digital data retrieval (secondary variables, diagnostics) occurs asynchronously and does not affect the primary analog scan rate, ensuring that real-time control performance is not compromised by diagnostic polling.

Q4: What warranty and testing does ZYPLC provide with the ABB AI835A?
All ABB AI835A modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing, including analog signal accuracy verification across all 8 channels and HART communication protocol validation. In-stock units are available for same-week dispatch. For technical support, replacement coordination, or volume procurement inquiries, contact our team directly.
