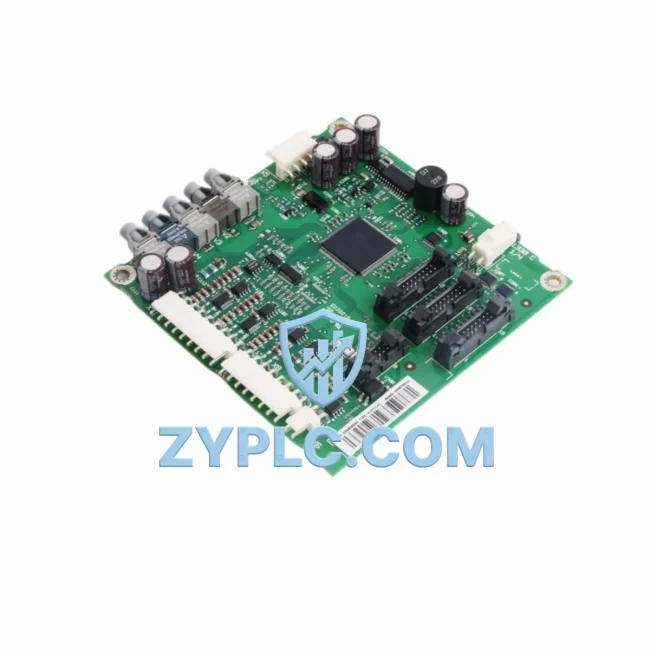

ABB AINT-14C 64721330 C MC Interface Board | ACS800

ABB AINT-14C 64721330 C: Industrial Data Link for ACS800 Smart Factory Networks

The ABB AINT-14C 64721330 C is a high-performance MC Interface Board engineered for the ACS800 series variable frequency drive platform. Designed to serve as the critical communication bridge between drive-level hardware and upper-level control systems, this interface board enables seamless, real-time data exchange across the full industrial automation stack — from field-level sensors and actuators through to SCADA supervisory platforms and enterprise MES systems. In smart factory environments where data latency, protocol compatibility, and network stability directly impact production efficiency, the AINT-14C delivers the connectivity backbone that modern industrial sites demand.

Network Communication Table

Connected Automation Data Flow

In a typical ACS800-based automation architecture, the AINT-14C 64721330 C sits at the heart of the drive communication layer, enabling bidirectional data flow between the ACS800 variable frequency drive and the broader control network. The data journey begins at the field level, where process sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into remote I/O modules such as the ABB CI830 or CI854 communication interface units. These signals are aggregated and passed upstream through the fieldbus network to the ACS800 drive, where the AINT-14C board translates and routes drive-level data — including motor speed references, torque feedback, current draw, and fault codes — into the plant communication backbone.

At the PLC control layer, systems such as the ABB AC500 PLC or third-party controllers running on PROFIBUS-DP or Modbus RTU receive structured drive data from the AINT-14C, enabling closed-loop control logic to adjust drive parameters in real time based on process conditions. The interface board’s MC protocol support ensures that drive commands — start, stop, speed reference, direction — are transmitted with minimal latency, critical for applications such as conveyor synchronization, pump control, and compressor management in process industries.

Moving up the network hierarchy, the AINT-14C-equipped ACS800 drive connects to HMI panels such as the ABB CP600 series or Siemens TP700 Comfort, providing operators with live visualization of drive status, energy consumption trends, and alarm histories. SCADA gateways — including platforms built on ABB System 800xA or Wonderware InTouch — poll the drive via OPC-UA or Modbus TCP bridges, pulling real-time data into historian databases for trend analysis and regulatory compliance reporting.

For distributed plant architectures, edge gateways such as the ABB Edge Controller or third-party IIoT gateways aggregate data from multiple ACS800 drives equipped with AINT-14C boards, enabling cloud-based analytics, predictive maintenance algorithms, and remote diagnostics without requiring direct SCADA access to each individual drive. This architecture is particularly valuable in water treatment plants, mining operations, and large-scale HVAC systems where drives are distributed across wide geographic areas.

The AINT-14C also integrates naturally with ABB FENA-21 Ethernet adapter modules and FDNA-01 DeviceNet adapter boards when multi-protocol gateway configurations are required, allowing legacy fieldbus segments to coexist with modern Ethernet-based control networks. Power supply stability for the communication layer is maintained through ABB CP-E series DIN-rail power supplies, ensuring that the interface board operates within its specified voltage tolerance even during grid fluctuations common in heavy industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may simultaneously operate legacy Modbus RTU devices alongside newer PROFINET-capable controllers, with drives from multiple vendors using proprietary fieldbus implementations. The ABB AINT-14C 64721330 C addresses this directly by providing a standardized MC protocol interface that integrates the ACS800 drive into mixed-protocol environments without requiring full network replacement.

Data silos — where drive-level operational data remains trapped within the drive itself, inaccessible to SCADA or MES systems — are eliminated through the AINT-14C’s transparent data routing capability. Drive parameters including output frequency, DC bus voltage, motor current, and active fault codes become available to upper-level systems in real time, enabling production managers to monitor drive health, track energy consumption per production batch, and receive proactive maintenance alerts before equipment failures cause unplanned downtime.

Remote monitoring and diagnostics are significantly enhanced when the AINT-14C is deployed across multiple ACS800 drives in a plant network. Maintenance engineers can remotely access drive fault logs, adjust PID parameters, and perform controlled test starts without physical access to the drive cabinet — reducing maintenance labor costs and improving response times for fault resolution. For multi-site operations, this remote diagnostic capability extends across WAN connections through SCADA gateway infrastructure, enabling centralized monitoring of geographically distributed drive assets.

Production line transparency is further improved through integration with MES platforms, where drive cycle data — including run hours, start/stop counts, and energy consumption — feeds directly into OEE (Overall Equipment Effectiveness) calculations. This data-driven approach to production management allows plant engineers to identify bottlenecks, optimize drive scheduling, and plan preventive maintenance windows based on actual equipment utilization rather than fixed time intervals. The AINT-14C thus transforms the ACS800 from a standalone drive into a fully networked, data-generating asset within the smart factory ecosystem.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB AINT-14C 64721330 C support, and is it compatible with third-party PLC systems?
The AINT-14C supports ABB’s MC (Motion Control) protocol and is designed for integration within the ACS800 drive communication architecture. It is compatible with upper-level systems — including third-party PLCs and SCADA platforms — through gateway modules or protocol converters that bridge MC protocol to Modbus TCP, PROFIBUS-DP, or OPC-UA. For direct fieldbus integration, pairing with ABB FENA or FDNA adapter modules is recommended.

Q2: How does the AINT-14C ensure network stability in high-interference industrial environments?
The AINT-14C is engineered to ABB’s industrial-grade hardware standards, with EMC shielding and noise immunity appropriate for variable frequency drive environments where high-frequency switching interference is inherent. The board operates within the ACS800’s internal communication slot, providing a physically protected and electrically isolated communication path that maintains data integrity even in high-EMI conditions typical of motor control centers and power distribution panels.

Q3: Can the AINT-14C 64721330 C be used to expand an existing ACS800 network without replacing the drive?
Yes. The AINT-14C is a slot-mounted interface board that installs directly into the ACS800 drive’s communication option slot, enabling network connectivity upgrades without drive replacement. This makes it an ideal solution for brownfield modernization projects where existing ACS800 drives need to be integrated into new SCADA or IIoT infrastructure without capital expenditure on new drive hardware.

Q4: What quality assurance and warranty coverage is provided with the AINT-14C 64721330 C?
Every AINT-14C 64721330 C unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication interface integrity and board-level electrical performance. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and communication failures under normal operating conditions. In-stock units are available for immediate dispatch, with global shipping supported to minimize lead times for urgent maintenance and production continuity requirements.
